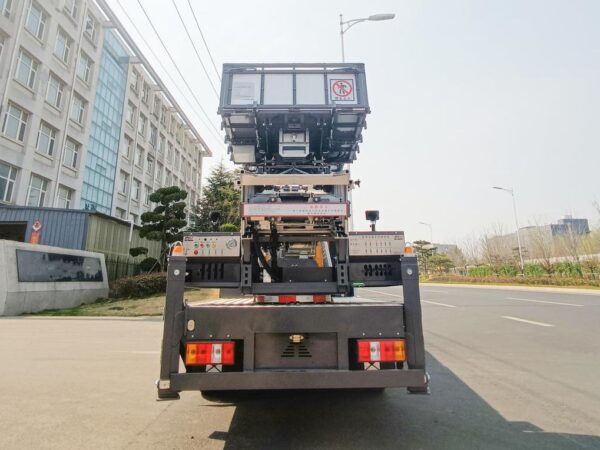

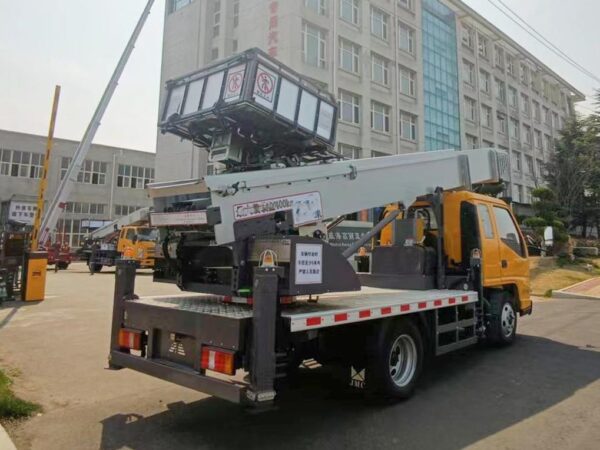

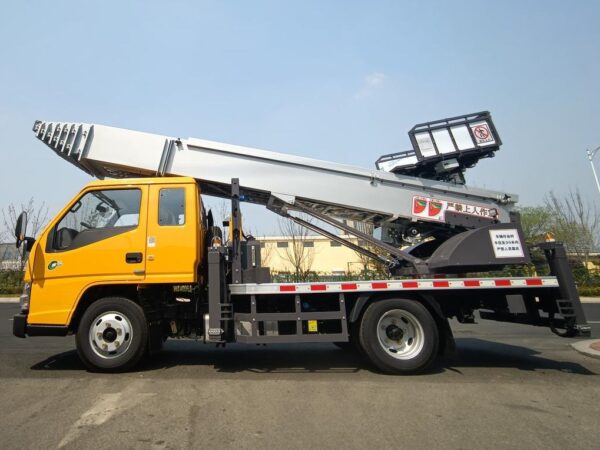

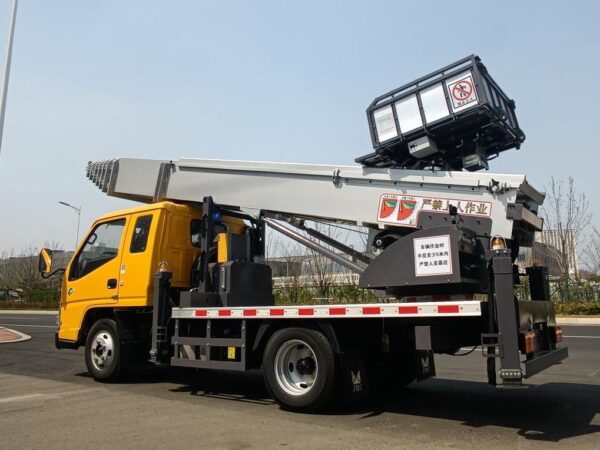

Jac 4.5 Tons Ladder Lift Truck

Jac 4.5 Tons Ladder Lift Truck

Vehicle Dimensions	5.98 x 1.895 x 3 Metres
Gross Vehicle Mass	4.495 tons
Emission Standard	Euro VI
Maximum Working Height	36 Metres

Patlisiso ea Teraka

Tlhaloso
Tlhahlobo (0)

SUMMARY

The Jac 4.5 Tons Ladder Lift Truck is a specialized vehicle designed to meet various elevation-related work requirements.

With a payload capacity of 4.5 tons, it can carry necessary equipment and materials to job sites. Its ladder lift mechanism is a key feature, enabling it to extend the ladder to significant heights, providing access to elevated areas such as rooftops or upper floors of buildings.

The truck is powered by a reliable engine that offers sufficient power for smooth operation, whether it’s driving to the location or operating the ladder lift.

Equipped with advanced control systems, it allows drivers to easily manage driving, as well as the precise movement and positioning of the ladder.

Overall, The Jac 4.5 Tons Teraka ea ho Phahamisa Lere combines functionality, power, and ease of use, making it a valuable asset in construction, maintenance, and other industries where access to elevated areas is crucial.

LIKAROLOANA

The Jac 4.5 Tons Ladder Lift Truck is a remarkable piece of machinery that combines several notable features to fulfill diverse elevation-based work requirements with efficiency and safety.

1.Payload Capacity and Utility
With a payload capacity of 4.5 tons, this lift truck can carry a substantial amount of equipment, tools, and materials necessary for various jobs. Whether it’s construction materials like scaffolding parts or maintenance tools, it ensures that everything needed at the elevated work site can be transported conveniently. This capacity makes it a versatile asset for different industries such as construction, building maintenance, and electrical work.

2.Ladder Lift Mechanism
The ladder lift mechanism is a standout feature. It is engineered to extend the ladder to impressive heights, allowing access to rooftops, upper floors of buildings, and other elevated areas. The ladder’s operation is smooth and precise, thanks to its advanced hydraulic or mechanical systems. It can be adjusted with accuracy to reach the exact height required for the task at hand, ensuring workers can safely and easily access their work areas.

3.Power and Performance
Powered by a reliable engine, the Jac lift truck delivers consistent power for both driving to the work location and operating the ladder lift. The engine provides sufficient torque to handle the vehicle’s weight when loaded and ensures smooth acceleration and deceleration on different terrains. This reliable power source enables the truck to function effectively even in challenging work environments.

4.Advanced Control Systems
Equipped with advanced control systems, the operation of this lift truck is highly user-friendly. The driver can easily manage driving functions such as speed control, braking, and direction changes through a well-designed control panel. Ho phaella moo, the controls for the ladder lift operation are intuitive and allow for precise movement and positioning of the ladder. This seamless integration of driving and ladder control systems enhances overall work efficiency.

5.Safety Features
Safety is a top priority in the design of the Jac 4.5 Tons Ladder Lift Truck. It incorporates features like stability control to prevent tipping during ladder operation, especially when the truck is loaded. The ladder itself is built with high-quality materials and has safety rails and locking mechanisms to ensure the safety of workers as they ascend and descend.

Ha re phethela, The Jac 4.5 Tons Ladder Lift Truck‘s combination of these features makes it an excellent choice for any task that requires access to elevated areas, offering both functionality and safety.

SPECIFICATIONS

Basic Information
Mofuta oa mofuta oa drive	4X2
Ho na le Wheelbase	2800mm
Mofuta	Moving Operation Vehicle
Vehicle Dimensions	5.98 x 1.895 x 3 Metres
Gross Vehicle Mass	4.495 tons
Vehicle Weight	4.365 tons
Front Overhang/Rear Overhang	1.11 / 1.8 Metres
Front Tread/Rear Tread	Front: 1400mm; Rear:1425mm
Engine Parameters
Mohlala oa Enjine	Jiangling JX493ZLQ6F
Displacement	2.499L
Maximum Output Power	95kW
Maximum Horsepower	129hp
Emission Standard	Euro VI
Mounted Equipment Parameters
Mounted Equipment Brand	Gaoliya Brand
Maximum Working Height	36 Metres
Slewing Angle	180° to the left and right respectively
Other Special Instructions	Eight-section Synchronous Telescopic Boom
Transmission Parameters
Transmission Model	5-speed Transmission
Number of Gears	5-speed
Chassis Parameters
Chassis Brand	Jiangling Motors
Chassis Series	Shunda Small Truck
Chassis Model	JX1041TCF26
Number of Leaf Springs	7 / 6 + 5
Tires
Number of Tires	6
Tire Specification	6.50R15LT 10PR
