How Rotator Tow Trucks Handle Extreme Off-Angle Recoveries Tow Crane

When vehicles leave the roadway at awkward angles—down embankments, wedged between obstacles, or overturned in tight spaces—standard towing methods often fall short. That’s where rotator tow trucks come in. Built for precision, nå, and power, these specialized machines are the backbone of complex recovery operations, especially in extreme off-angle scenarios.

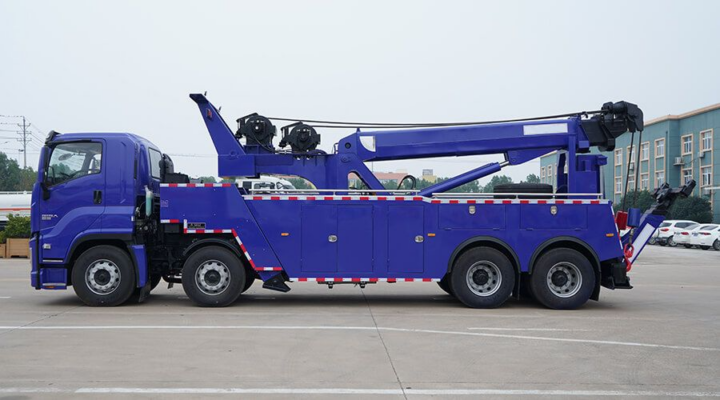

What Makes Rotator Tow Trucks Unique?

Unlike conventional wreckers, rotator tow trucks feature a rotating boom—often capable of 360-degree movement—mounted on a heavy-duty chassis. This allows operators to lift and recover vehicles from positions that would otherwise require multiple trucks or extensive rigging.

Key capabilities include:

Full boom rotation for flexible positioning
High lifting capacity (often 30–75+ tons)
Multi-winch systems for controlled pulls
Outriggers for stability on uneven terrain

Understanding Extreme Off-Angle Recoveries

An off-angle recovery refers to situations where the disabled vehicle cannot be pulled in a straight line toward the bärgningsbil. Examples include:

Vehicles down steep slopes
Trucks tipped onto their sides
Cars trapped in ditches or behind barriers
Equipment stuck in confined job sites

These recoveries require careful planning to avoid further damage, ensure safety, and maintain control throughout the lift.

Step-by-Step: How Rotators Handle the Job

1. Scene Assessment

Operators first evaluate:

Vehicle position and weight
Terrain conditions (soft ground, slope, obstacles)
Potential hazards (fuel leaks, unstable loads)

This determines the recovery strategy and equipment setup.

2. Strategic Positioning

Thanks to the rotating boom, the truck doesn’t need to sit directly in front of the vehicle. Instead, it can:

Park on stable ground
Avoid blocking traffic lanes
Work from a safer angle

This is critical in tight or dangerous environments.

3. Outrigger Deployment

Outriggers extend from the truck to stabilize it during lifting. In off-angle recoveries, uneven load distribution is common, so proper leveling is essential to prevent tipping.

4. Rigging and Winch Setup

Operators use:

Multiple winch lines
Snatch blocks (pulleys)
Chains and straps

This setup allows them to redirect force and control the direction of the pull, even when the vehicle is at a severe angle.

5. Controlled Rotation and Lift

Here’s where the rotator shines:

The boom rotates toward the vehicle
Winches apply gradual, synchronized tension
The vehicle is lifted and rotated back into alignment

Instead of dragging the vehicle, it’s often lifted and repositioned, reducing damage.

6. Final Recovery and Load Securing

Once upright or aligned:

The vehicle is either winched onto the roadway
Or loaded for transport

Operators then secure it for safe towing.

Why Rotators Are Essential for These Recoveries

1. Säkerhet först
Minimizes risk to operators and bystanders by reducing unstable pulls.

2. Reduced Damage
Precision lifting avoids scraping, dragging, or further structural harm.

3. Efficiency
Jobs that once required multiple trucks can often be handled by a single rotator.

4. Mångsidighet
Works in urban areas, on highways, at construction sites, and in remote terrain.

Real-World Applications

Rotator tow trucks are commonly used in:

Highway accident recoveries
Heavy truck rollovers
Construction equipment retrieval
Off-road and remote recoveries

Final Thoughts

Extreme off-angle recoveries demand more than brute force—they require precision engineering and skilled operation. Rotator tow trucks combine both, making them indispensable in modern recovery operations. Whether it’s a semi-truck on its side or a vehicle deep in a ditch, these machines turn impossible angles into manageable recoveries.

Csctruck towcrane offers high-quality rotator tow trucks. For any inquiries or requirements, please feel free to contact us.
