சுருக்கமாக:

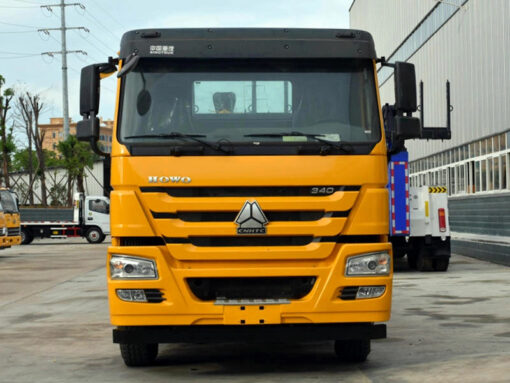

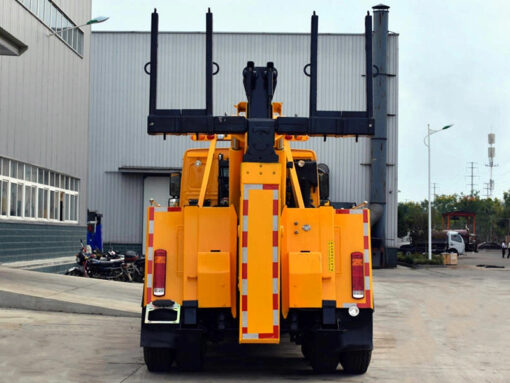

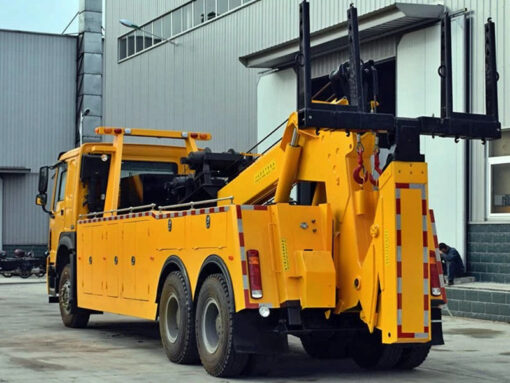

தி எப்படி 50 Ton Road Rescue Wrecking Rotator Tow Truck is a robust and versatile vehicle designed for heavy-duty recovery and towing operations. Built on a Sinotruk Howo chassis, this truck boasts impressive technical specifications and superstructure features that make it well-equipped for rescue missions. Whether it’s recovering stranded vehicles or handling road emergencies, this tow truck offers a reliable and efficient solution.
இது rotator tow truck is a versatile and reliable vehicle that provides the power and functionality needed for effective road rescue and recovery operations.
அம்சங்கள்:
General Technical Specification:
- Overall Dimension: With dimensions measuring 10475 x 2500 x 3800 மிமீ, this vehicle offers substantial size to accommodate various recovery tasks.
- மொத்த வாகன எடை: Capable of handling heavy loads with a weight capacity of 25000 kg.
- Curb Weight: The truck itself weighs 21000 kg, ensuring stability and durability during operations.
Chassis Specification:
- Chassis Brand: The Sinotruk Howo chassis is renowned for its durability and strength.
- Drive Model: The 6×4 drive model ensures good traction and control.
- Cabin: Featuring a single, left-hand drive cabin for the operator’s comfort and control.
Engine:
- Model: Equipped with a 4-stroke direct injection, 4-cylinder in-line engine with water cooling, turbo-charging, and inter-cooling.
- Power: Generates a powerful 249KW/338HP for tackling tough recovery tasks.
- உமிழ்வு தரநிலை: Complies with EURO2 or 3 emissions regulations.
- Displacement: தி 9726 ml engine delivers strong performance.
- எரிபொருள் வகை: Diesel for reliability and efficiency.
Other Technical Features:
- Gearbox: A 10-speed forward and 1 reverse gearbox offers versatility and control.
- Brake System: Utilizes air brakes for efficient and reliable stopping power.
- Wheel Base: Offers stability with a wheelbase of 5825 + 1350 மிமீ.
- Front/Rear Axle Loading: Handles a balanced load with front and rear axles rated at 10000/15000 kg.
- Approach/Departure Angle: Boasts a 24/12° approach/departure angle, making it suitable for a variety of terrains.
- Tire: Equipped with 12.00R20 tires, including a spare tire.
- Max Driving Speed: Reaches a maximum speed of 98 km/h for swift response to emergencies.
Superstructure Specification:
- Winch: Features a powerful winch with a quantity of 1, a rating towing capacity of 20000 kg, a 45 m steel rope, and variable winch speeds.
- Lifting Organ: Offers a rating lifting capacity of 20000 kg for efficient vehicle recovery.
- Other Parts: Includes auxiliary wheels, an alarm light, கொக்கிகள், bundling belts, automatic sliding plate, and more for added functionality.
- Options: Various optional features such as caution lights, air conditioning, inlet valves, Italy brand multi-way valve, balance valve, Gernamy Roxroth technology hydraulic cylinder and joint, international brand sealing elements, and a strengthened checkered platform ensure adaptability to different scenarios.
SPECIFICATIONS:
| General Technical Specification | |
|---|---|
| Overall Dimension | 10475 x 2500 x 3800 (மிமீ) |
| மொத்த வாகன எடை | 25000 (Kg) |
| Curb Weight | 21000 (Kg) |
| Chassis Specification | |
|---|---|
| Chassis Brand | சினோட்ருக் ஹோவோ |
| Drive Model | 6×4 |
| Cabin | Single, Left Hand Drive |
| Engine | |
| – Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| – Power | 249KW/338HP |
| – உமிழ்வு தரநிலை | EURO2 or 3 |
| – Displacement | 9726 (ml) |
| – எரிபொருள் வகை | டீசல் |
| Gearbox | 10 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance |
| Brake System | Air Brake |
| Wheel Base | 5825 + 1350 (மிமீ) |
| Front/Rear Axle Loading | 10000/15000 (Kg) |
| Approach/Departure Angle | 24/12 (°) |
| Tire | 12.00R20, 6pcs + 1 spare tire |
| Max Driving Speed | 98 (km/h) |
| Superstructure Specification | |
|---|---|
| Winch | |
| – Quantity | 1 |
| – Rating Towing Capacity | 20000 (Kg) |
| – Length of Steel Rope | 45 (மீ) |
| – Speed of Winch | 3.23~8 (m/min) |
| Lifting Organ | |
| – Rating Lifting Capacity | 20000 (Kg) |
| Other Parts | Auxiliary wheels, alarm light, கொக்கிகள், 4 bundling belts, automatic sliding plate, etc. |
| Options | Caution light, air condition, inlet valve. |
