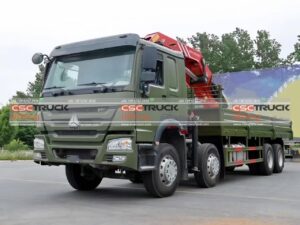

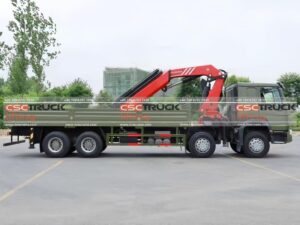

The 12-wheeler 16-ton knuckle boom crane за CSCTRUCK Tow Crane is a robust and versatile machine designed for heavy-duty lifting tasks. Built on a sturdy HOWO chassis with an 8×4 drive type, this crane ensures exceptional stability and mobility, even in challenging terrains. The crane is equipped with 3 hydraulic boom extensions, providing a maximum hydraulic outreach of 10 метрів. This capability, combined with a 49-meter-ton lifting moment, allows for precise and efficient handling of heavy loads.
The knuckle boom crane boasts a maximum lifting capacity of 16,000 кілограмів, making it suitable for a wide range of industrial applications, from construction to logistics. It features a slewing angle of 400 degrees and a slewing torque of 5.5 meter-tons, which ensures smooth and flexible maneuverability around the work site. This extensive slewing range facilitates the positioning of loads with minimal repositioning of the vehicle, enhancing operational efficiency.
To support its heavy lifting capabilities, the crane operates at an impressive pump capacity of 55-80 liters per minute and an operating pressure of 33 MPa. These specifications ensure a steady and powerful hydraulic flow, enabling the crane to perform demanding tasks consistently. The standard crane weight of 4,750 kilograms indicates a well-balanced design that does not compromise on structural integrity or safety.
Overall, в CSCTRUCK Tow Crane‘s 16-ton knuckle boom crane is a reliable and high-performance machine, engineered to meet the rigorous demands of heavy lifting operations with precision and durability.
Особливості
1. Powerful Lifting Capability:
– Максимальна потужність підйому: 16,000 кг.
– Lifting Moment: 49 metric tons.
2. Versatile Boom Functionality:
– Hydraulic Boom Extensions: 3 extensions.
– Max Hydraulic Outreach: 10 метрів.
3. Robust Chassis and Drive System:
– Chassis: HOWO chassis.
– Drive Type: 8×4, providing excellent traction and stability.
4. Efficient Hydraulic System:
– Pump Capacity: 55-80 liters per minute.
– Operating Pressure: 33 Megapascals (MPa).
5. Extensive Slewing Capability:
– Slewing Angle: 400 ступенів, allowing for a wide range of motion.
– Slewing Torque: 5.5 metric tons, ensuring smooth and powerful rotation.
SPECIFICATION
| Item | Unit | CSCKBC50002B | CSCKBC50002C | CSCKBC50002D | CSCKBC50002E |
| Hydr. boom extensions | / | 3 | 4 | 5 | 6 |
| Lifting moment | mt | 49 | 49 | 49 | 49 |
| Max. lifting capacity | кг | 16,000 | 15,790 | 15,200 | 14,200 |
| Max. hydraulic outreach | m | 10 | 12.1 | 14.5 | 16.8 |
| Slewing angle | ° | 400 | 400 | 400 | 400 |
| Slewing torque | mt | 5.5 | 5.5 | 5.5 | 5.5 |
| Pump capacity | L/min | 55-80 | 55-80 | 55-80 | 55-80 |
| Operating pressure | МПа | 33 | 33 | 33 | 33 |
| Standard crane weight | кг | 4,750 | 4,950 | 5,180 | 5,400 |
| Outrigger span(мм) | R3X | 6,600 | 6,600 | 6,600 | 6,600 |
