Короткий

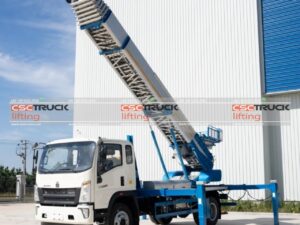

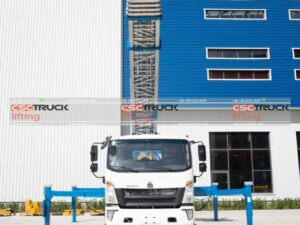

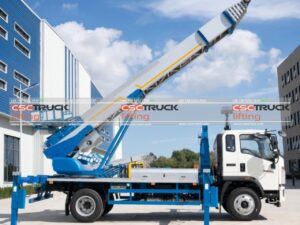

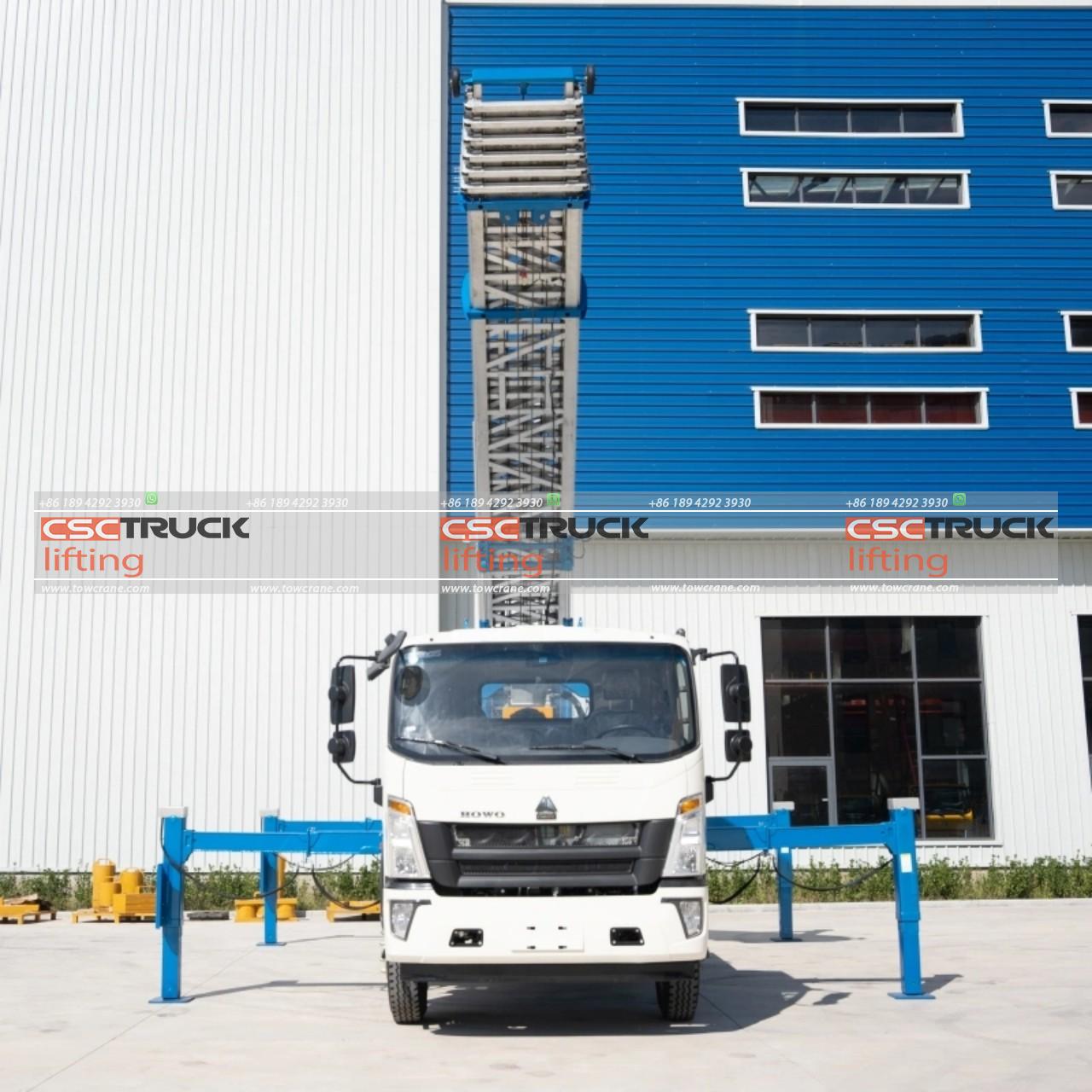

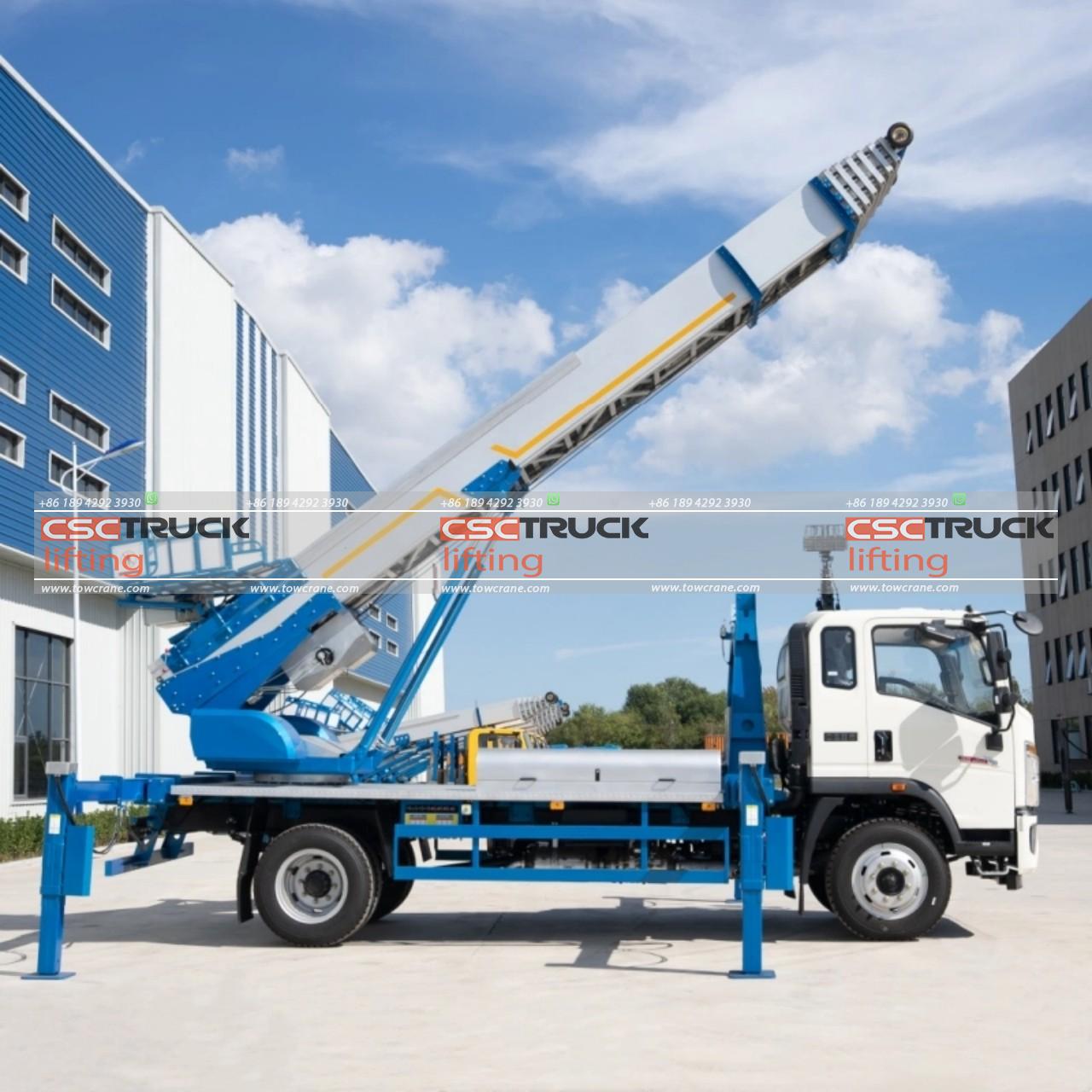

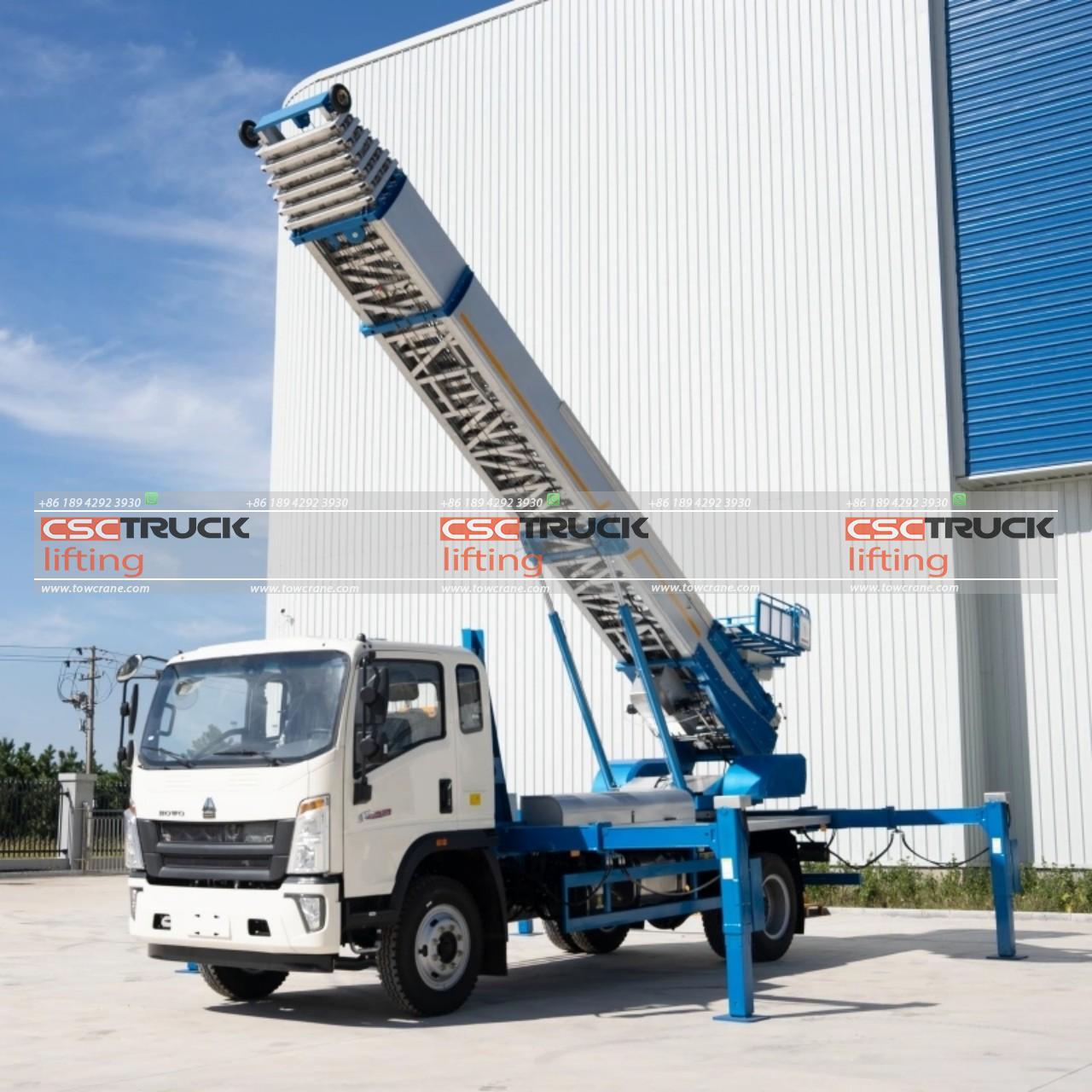

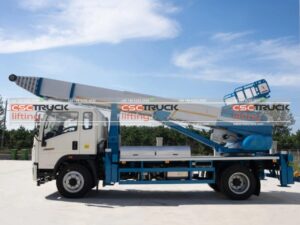

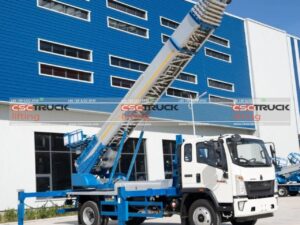

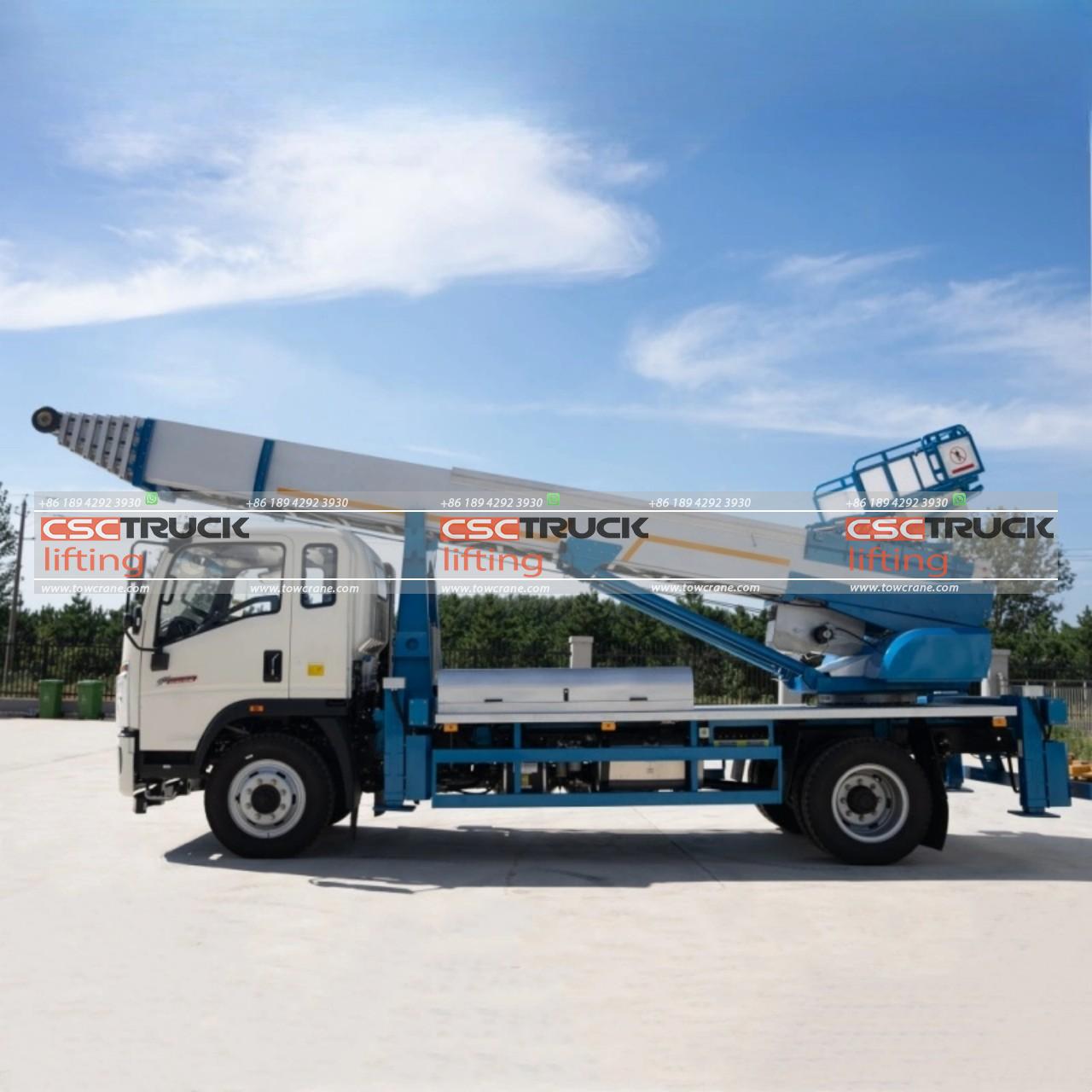

The 45m HOWO ladder lift truck, produced by CSCTRUCK Tow Crane, represents a versatile and robust solution for elevated work tasks. With a maximum working height of 45 метрів, this truck is ideal for tasks that require significant vertical reach, such as maintenance of tall structures, construction work, and emergency rescue operations.
Built on the reliable HOWO chassis, the truck features a 4×2 drive type, ensuring stability and maneuverability in various terrains and conditions. The vehicle is powered by the WP4.6Q22E61 engine model, delivering 220 horsepower, which provides ample power for both driving and lifting operations. This engine meets the stringent Euro 6 emission standard, highlighting the vehicle’s compliance with contemporary environmental regulations and its commitment to reducing emissions.
The 45m HOWO ladder lift truck boasts a maximum lifting weight of 400 кілограмів, allowing it to safely elevate personnel, tools, and equipment to the required height. Its maximum driving speed of 100 kilometers per hour ensures efficient travel between job sites, minimizing downtime and enhancing productivity.
Overall, в 45m HOWO ladder lift truck з CSCTRUCK Tow Crane is engineered for high performance, reliability, and environmental responsibility. Its advanced features and specifications make it a suitable choice for industries requiring elevated work platforms, combining the durability of the HOWO chassis with the power and efficiency of the WP4.6Q22E61 engine. This truck stands out as a practical and efficient tool for modern elevated work requirements.
Особливості
1. Impressive Working Height:
– The truck offers a maximum working height of 45 метрів, making it suitable for high-reach tasks such as building maintenance, window cleaning, and firefighting operations.
2. Powerful Engine:
– It is equipped with the WP4.6Q22E61 engine model, which provides 220 horsepower. This ensures strong performance and the capability to handle demanding tasks efficiently.
3. Environmentally Friendly:
– The truck meets the Euro 6 emission standard, indicating it has low emissions and adheres to stringent environmental regulations, contributing to reduced air pollution.
4. Robust Lifting Capacity:
– With a maximum lifting weight of 400 кілограмів, в ladder lift truck can safely elevate significant loads, making it versatile for various industrial and construction applications.
5. Efficient Chassis and Drivetrain:
– Built on a HOWO chassis with a 4×2 drive type, the truck is designed for stability and reliability. It also has a maximum driving speed of 100 km/h, ensuring quick and efficient transportation to different job sites.
SPECIFICATION
|
Item |
Spec. |
Unit |
Technical data |
| Dimension | Total Length | Mm | 8,445 |
| Total width | Mm | 2,470 | |
| Total height | Mm | 3,600 | |
| Weight | Number of passengers
(Include driver) |
Person | 3 |
| Total weight | Kg | 9,700 | |
| Curb weight | Kg | 9,505 | |
| Performance | Working platform-rated load | Kg | 400 |
| Max. working height | M | 45 | |
| Legs span | Mm | 4,791/5,554 | |
| Configuration | Вантажівка | – | HOWO |
| Engine model | – | WP4.6Q22E61 | |
| Engine power/HP | kW/HP | 162/220 | |
| Max. driving speed | km/h | 100 | |
| Tires no. | Pc | 6+1 | |
| Tire spec. | – | 8.25R20 16PR | |
| Boom mode | – | 8-section synchronous stretch and back | |
| Radiator | – | Can Manual, auto radiating when reaches 55 ступенів. |
