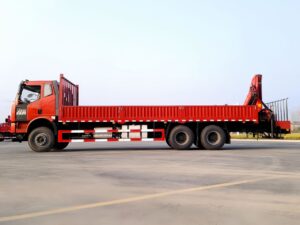

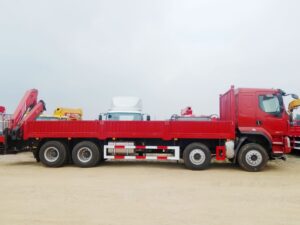

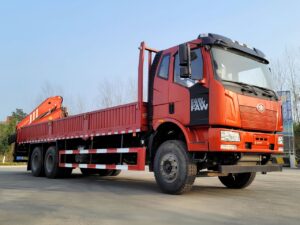

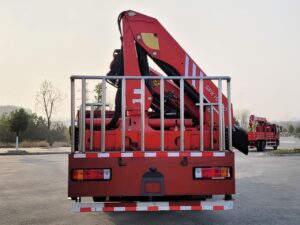

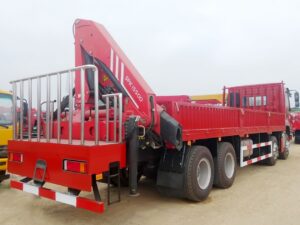

The 6-ton 10-wheelers knuckle boom crane produced by CSCTRUCK Tow Crane is a robust and versatile lifting solution designed for heavy-duty operations. Built on an Плутанина chassis with a 6×4 drive type, this crane offers a reliable and sturdy foundation suitable for various terrains and demanding work environments.
Key features include its impressive lifting capabilities, with a maximum lifting capacity of 6,100kg and a lifting moment of 14.1 metric tons. The crane is equipped with 2 hydraulic boom extensions, providing a maximum hydraulic outreach of 8.1 метрів. This range of extension allows for efficient and precise handling of loads over a significant distance, making it ideal for construction, logistics, and other industrial applications.
The knuckle boom crane‘s 420° slewing angle enhances its maneuverability, allowing for smooth and continuous rotation, which is crucial for complex lifting tasks in confined spaces. It has a slewing torque of 1.8 metric tons, ensuring stable and controlled movements during operations.
Powered by a hydraulic pump with a capacity of 40-60 liters per minute and an operating pressure of 30MPa, the crane delivers consistent and powerful hydraulic performance. This ensures efficient operation and enhances the crane’s capability to handle heavy loads effortlessly.
Weighing 1,769 kg in its standard configuration, в knuckle boom crane is designed for optimal balance between weight and performance. This weight factor contributes to its stability and ease of transportation. Overall, в CSCTRUCK Tow Crane on an Плутанина chassis represents a reliable and high-performing option for industries requiring robust lifting solutions.
Особливості
1. Impressive Lifting Capacity and Reach:
– The crane has a maximum lifting capacity of 6,100 kg and a maximum hydraulic outreach of 8.1 метрів, making it suitable for heavy lifting and extended reach applications.
2. Powerful Lifting Moment and Slewing Capability:
– With a lifting moment of 14.1 metric tons and a slewing angle of 420°, the crane provides significant power and flexibility in maneuvering loads in a wide range of directions.
3. Efficient Hydraulic System:
– Equipped with 2 hydraulic boom extensions and a pump capacity of 40-60 liters per minute operating at 30 MPa pressure, the crane ensures smooth and efficient operation for various lifting tasks.
4. Durable and Versatile Chassis:
– Built on an Плутанина chassis with a 6×4 drive type, the crane offers robust performance and stability, capable of handling tough terrains and demanding job sites.
5. Compact and Lightweight Design:
– The crane has a standard weight of 1,769 кг, which, combined with its compact design, allows for easy installation and mobility, making it an excellent choice for various industrial and construction applications.
SPECIFICATION

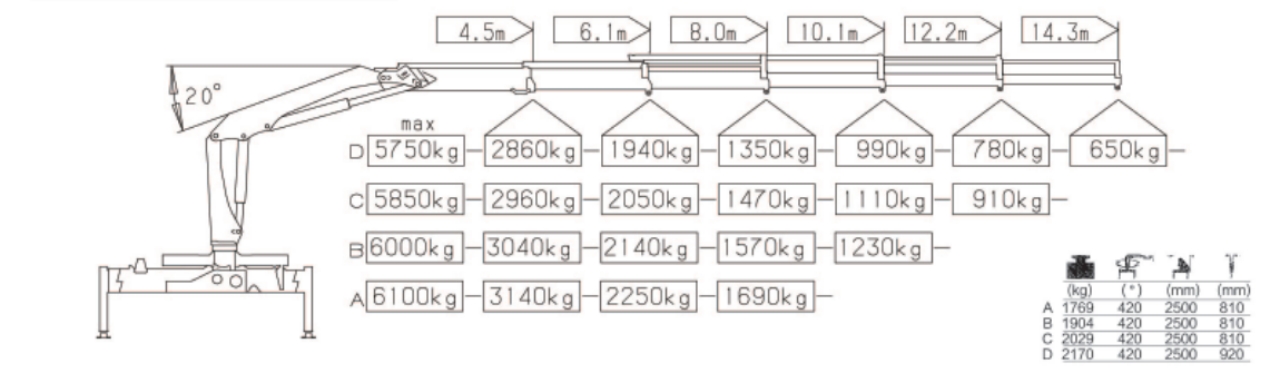

| Item | Unit | CSCKBC15500A | CSCKBC15500B | CSCKBC15500C | CSCKBC15500D |
| Hydr. boom extensions | / | 2 | 3 | 4 | 5 |
| Lifting moment | mt | 14.1 | 13.7 | 13.3 | 12.8 |
| Max. lifting capacity | кг | 6,100 | 6,000 | 5,850 | 5,750 |
| Max. hydraulic outreach | m | 8.1 | 10.3 | 12.4 | 14.5 |
| Slewing angle | ° | 420 | 420 | 420 | 420 |
| Slewing torque | mt | 1.8 | 1.8 | 1.8 | 1.8 |
| Pump capacity | L/min | 40-60 | 40-60 | 40-60 | 40-60 |
| Operating pressure | МПа | 30 | 30 | 30 | 30 |
| Standard crane weight | кг | 1,769 | 1,904 | 2,029 | 2170 |
| Outrigger span(мм) | R1 | 4,600 | 4,600 | 4,600 | 4,600 |
| R2 | 5,600 | 5,600 | 5,600 | 5,600 | |
| R2X | 5,600 | 5,600 | 5,600 | 5,600 |
