Короткий

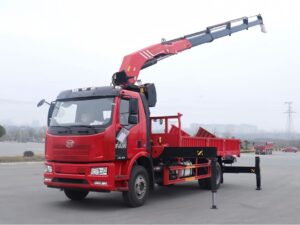

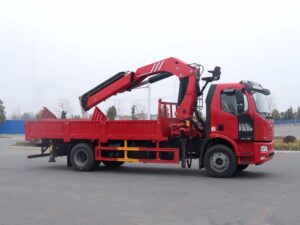

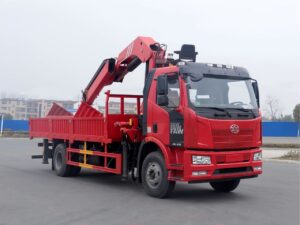

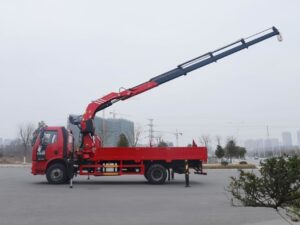

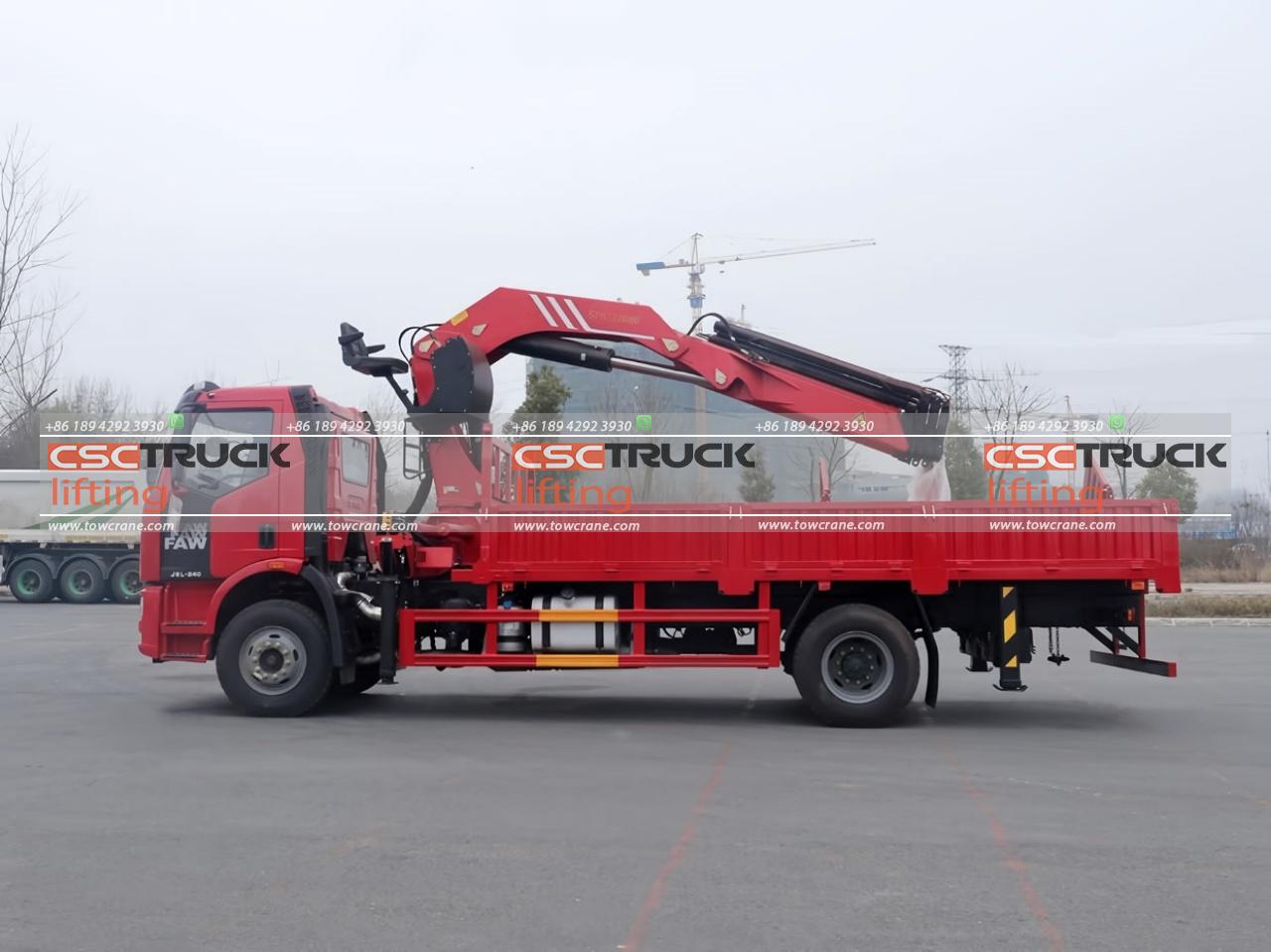

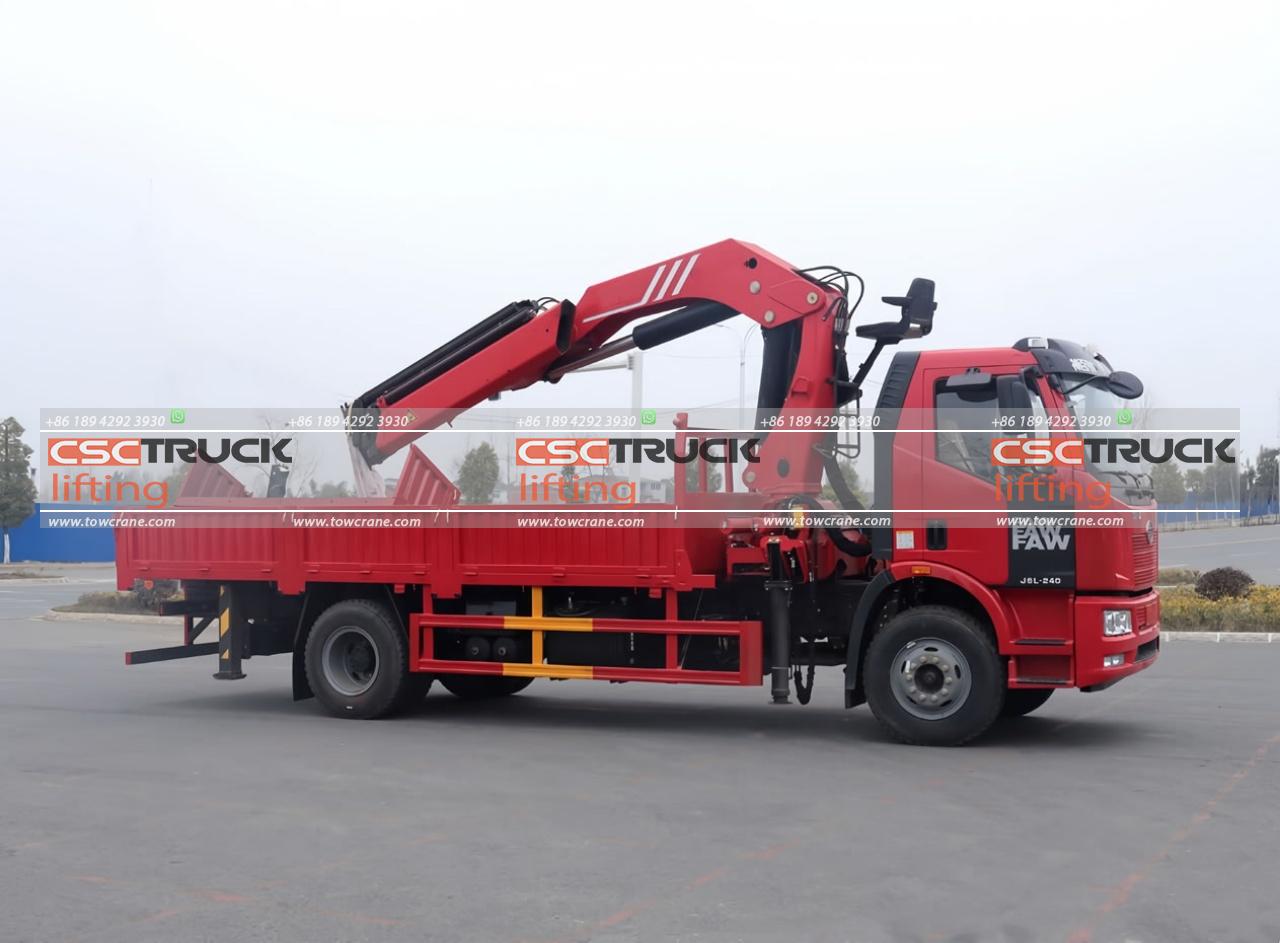

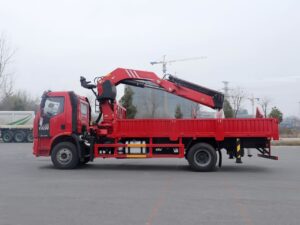

The 6-wheeler 9-ton поворотний кран produced by Буксирувальний кран CSCTRUCK is a robust and versatile machine, built on a durable Плутанина chassis with a 4×2 тип приводу. This crane is designed for demanding lifting tasks, featuring 2 hydraulic boom extensions that provide a maximum hydraulic outreach of 8.1 метрів. With a substantial lifting moment of 30.2 metric tons and a maximum lifting capacity of 8,500 кілограмів, it is well-suited for various heavy-duty operations.
The поворотний кран‘s 400° slewing angle allows for extensive maneuverability, while the slewing torque of 3.8 metric tons ensures precise and powerful rotation of the boom. The hydraulic system is driven by a pump with a capacity ranging from 55 до 80 liters per minute and operates at a high pressure of 30 megapascals, ensuring efficient and reliable performance.
Weighing in at 3,130 kilograms in its standard configuration, this поворотний кран combines strength and agility, making it an ideal choice for applications requiring both mobility and lifting power. Its design allows for easy integration into various industrial settings, whether in construction, logistics, or utility services. The high-quality engineering and dependable Плутанина chassis contribute to the crane’s longevity and resilience, ensuring it can withstand rigorous use in challenging environments.
Особливості
1. Impressive Lifting Capabilities:
– Максимальна потужність підйому: This crane can lift to 8,500 кг, making it suitable for heavy-duty tasks.
– Підйомний момент: It boasts a substantial lifting moment of 30.2 метричних тонн, ensuring robust performance.
2. Versatile Boom Extensions:
– Hydraulic Outreach: The crane offers a maximum hydraulic outreach of 8.1 метрів, facilitated by 2 гідравлічні подовжувачі стріли. This provides flexibility in reaching out to various distances during operations.
3. Efficient and Powerful Operation:
– Робочий тиск: With an operating pressure of 30 МПа, the crane ensures efficient and powerful hydraulic performance.
– Потужність насоса: It features a pump capacity ranging from 55 до 80 літрів на хвилину, which supports the smooth operation of the hydraulic system.
4. Superior Maneuverability and Control:
– Кут проведення: The crane has a 400° slewing angle, allowing extensive rotational movement for precise positioning and handling of loads.
– Поворотний момент: It delivers a slewing torque of 3.8 метричних тонн, ensuring smooth and controlled slewing operations.
5. Durable Chassis and Drive Type:
– Плутанина шасі: The crane is built on a robust Плутанина шасі, which is known for its durability and reliability.
– Тип диска: It features a 4×2 тип приводу, providing adequate traction and stability for various working conditions.
Специфікація

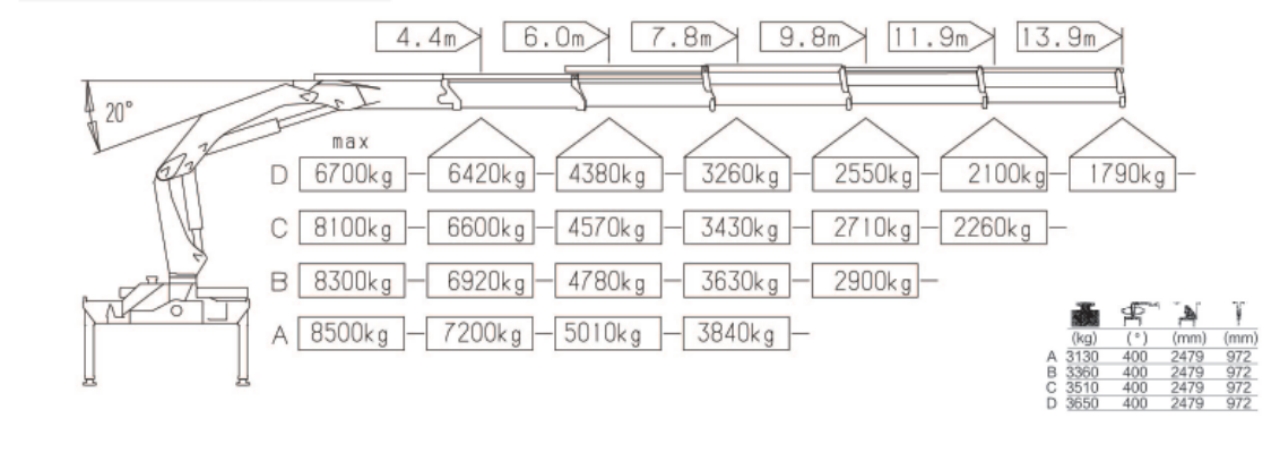

| Пункт | одиниця | CSCKBC32080A | CSCKBC32080B | CSCKBC32080C | CSCKBC32080D |
| Hydr. подовжувачі стріли | / | 2 | 3 | 4 | 5 |
| Підйомний момент | mt | 30.2 | 29.6 | 29 | 28.5 |
| Макс. вантажопідйомність | кг | 8,500 | 8,300 | 8,100 | 6,700 |
| Макс. гідравлічний виліт | м | 8.1 | 10.1 | 12.2 | 14.3 |
| Кут повороту | ° | 400 | 400 | 400 | 400 |
| Поворотний момент | mt | 3.8 | 3.8 | 3.8 | 3.8 |
| Потужність насоса | Л/хв | 55-80 | 55-80 | 55-80 | 55-80 |
| Робочий тиск | МПа | 30 | 30 | 30 | 30 |
| Стандартна вага крана | кг | 3,130 | 3,360 | 3,510 | 3,650 |
| Проліт аутригера(мм) | R3X | 6,000 | 6,000 | 6,000 | 6,000 |
