Короткий

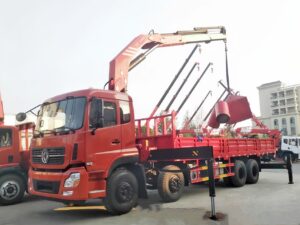

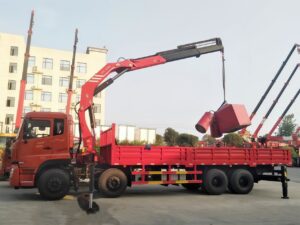

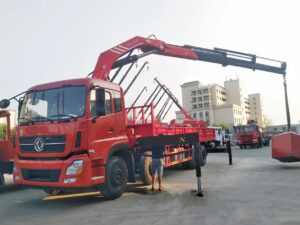

The 9-ton, 12-wheeler поворотний кран produced by Буксирувальний кран CSCTRUCK is an advanced and robust lifting solution, mounted on a reliable Dongfeng шасі. Designed for heavy-duty operations, this crane features 2 гідравлічні подовжувачі стріли, providing an impressive lifting moment of 30.2 метричних тонн. It boasts a maximum lifting capacity of 8,500 кілограмів, making it suitable for various industrial and construction tasks.
With a maximum hydraulic outreach of 8.1 метрів, this поворотний кран offers significant versatility in handling materials over distances. Its slewing angle of 400 degrees ensures comprehensive coverage and flexibility in operation, complemented by a slewing torque of 3.8 метричних тонн, enabling smooth and powerful rotation.
The crane is equipped with a high-performance pump capable of delivering a flow rate between 55 до 80 літрів на хвилину, operating under a pressure of 30 Мегапаскалі. This ensures efficient and reliable hydraulic power for all lifting activities. Weighing 3,130 kilograms in its standard configuration, the crane strikes a balance between strength and mobility.
Загальний, в Буксирувальний кран CSCTRUCK поворотний кран on a Dongfeng chassis stands out for its robust design, significant lifting capabilities, and versatile operation, making it an ideal choice for various demanding lifting and material handling applications.
Особливості
1. High Lifting Capacity and Range:
– Максимальна потужність підйому: Capable of lifting to 8,500 кг, making it suitable for heavy-duty lifting operations.
– Hydraulic Outreach: The crane provides an extensive maximum hydraulic outreach of 8.1 метрів, facilitating operations over a broad area.
2. Ефективна гідравлічна система:
– Гідравлічні подовжувачі стріли: Equipped with 2 hydraulic boom extensions that enhance the crane’s reach and versatility in lifting tasks.
– Робочий тиск: Operates at a high pressure of 30 МПа, ensuring powerful and efficient hydraulic performance.
3. Robust Slewing Mechanism:
– Кут проведення: Features a wide slewing angle of 400°, allowing for excellent maneuverability and positioning of loads.
– Поворотний момент: Delivers a significant slewing torque of 3.8 mt, providing the necessary force for smooth and controlled rotation of the crane.
4. Powerful Pump Capacity:
– Потужність насоса: The crane is equipped with a pump that has a capacity of 55-80 Л/хв, ensuring a steady and sufficient flow of hydraulic fluid for various lifting operations.
5. Standard Crane Weight and Chassis:
– Standard Crane Weight: The crane itself has a standard weight of 3,130 кг, indicating a solid build while being optimized for performance.
– Dongfeng Chassis: Mounted on a Dongfeng шасі, which is known for its reliability and durability, enhancing the overall stability and performance of the crane during operations.
Специфікація

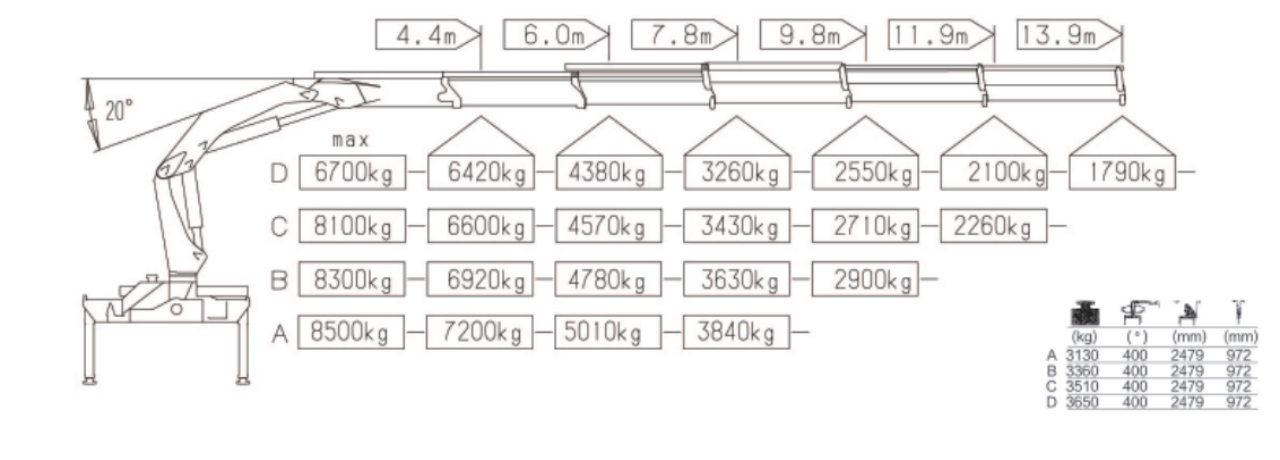

| Пункт | одиниця | CSCKBC32080A | CSCKBC32080B | CSCKBC32080C | CSCKBC32080D |
| Hydr. подовжувачі стріли | / | 2 | 3 | 4 | 5 |
| Підйомний момент | mt | 30.2 | 29.6 | 29 | 28.5 |
| Макс. вантажопідйомність | кг | 8,500 | 8,300 | 8,100 | 6,700 |
| Макс. гідравлічний виліт | м | 8.1 | 10.1 | 12.2 | 14.3 |
| Кут повороту | ° | 400 | 400 | 400 | 400 |
| Поворотний момент | mt | 3.8 | 3.8 | 3.8 | 3.8 |
| Потужність насоса | Л/хв | 55-80 | 55-80 | 55-80 | 55-80 |
| Робочий тиск | МПа | 30 | 30 | 30 | 30 |
| Стандартна вага крана | кг | 3,130 | 3,360 | 3,510 | 3,650 |
| Проліт аутригера(мм) | R3X | 6,000 | 6,000 | 6,000 | 6,000 |
