Brief:

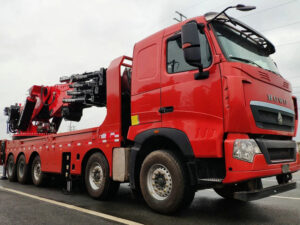

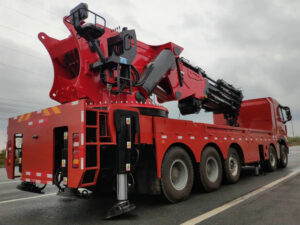

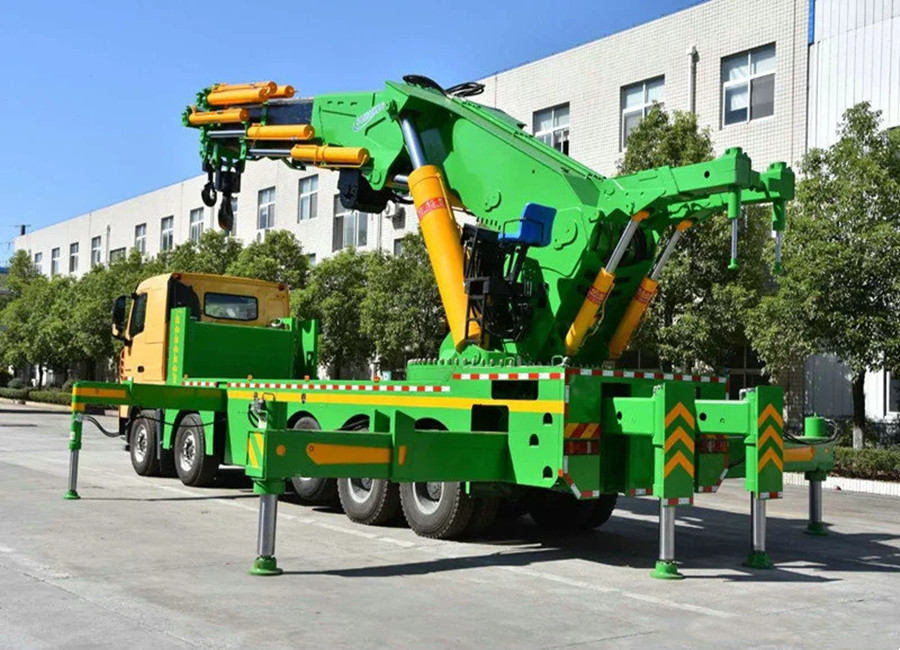

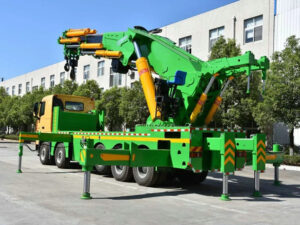

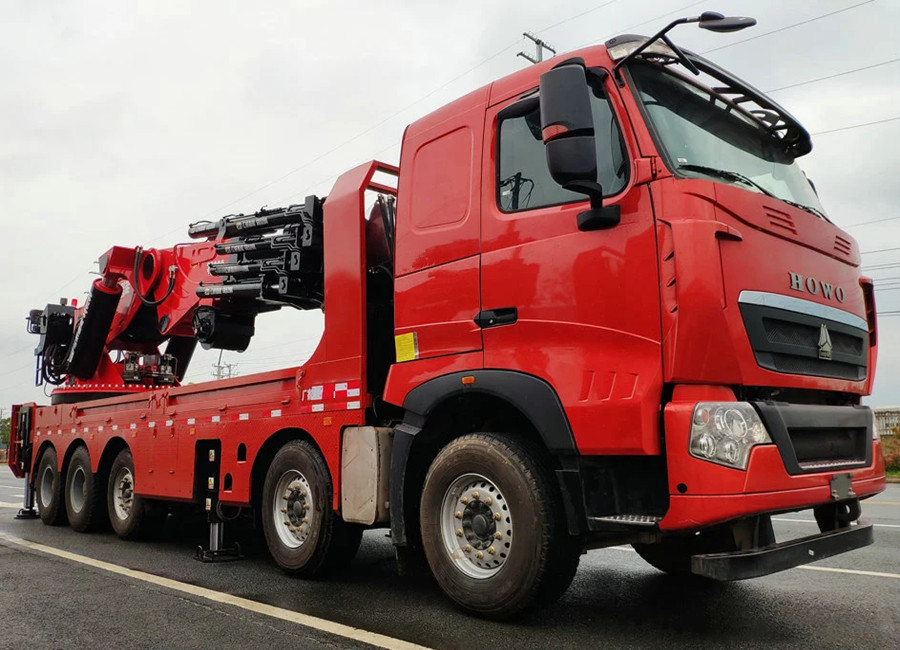

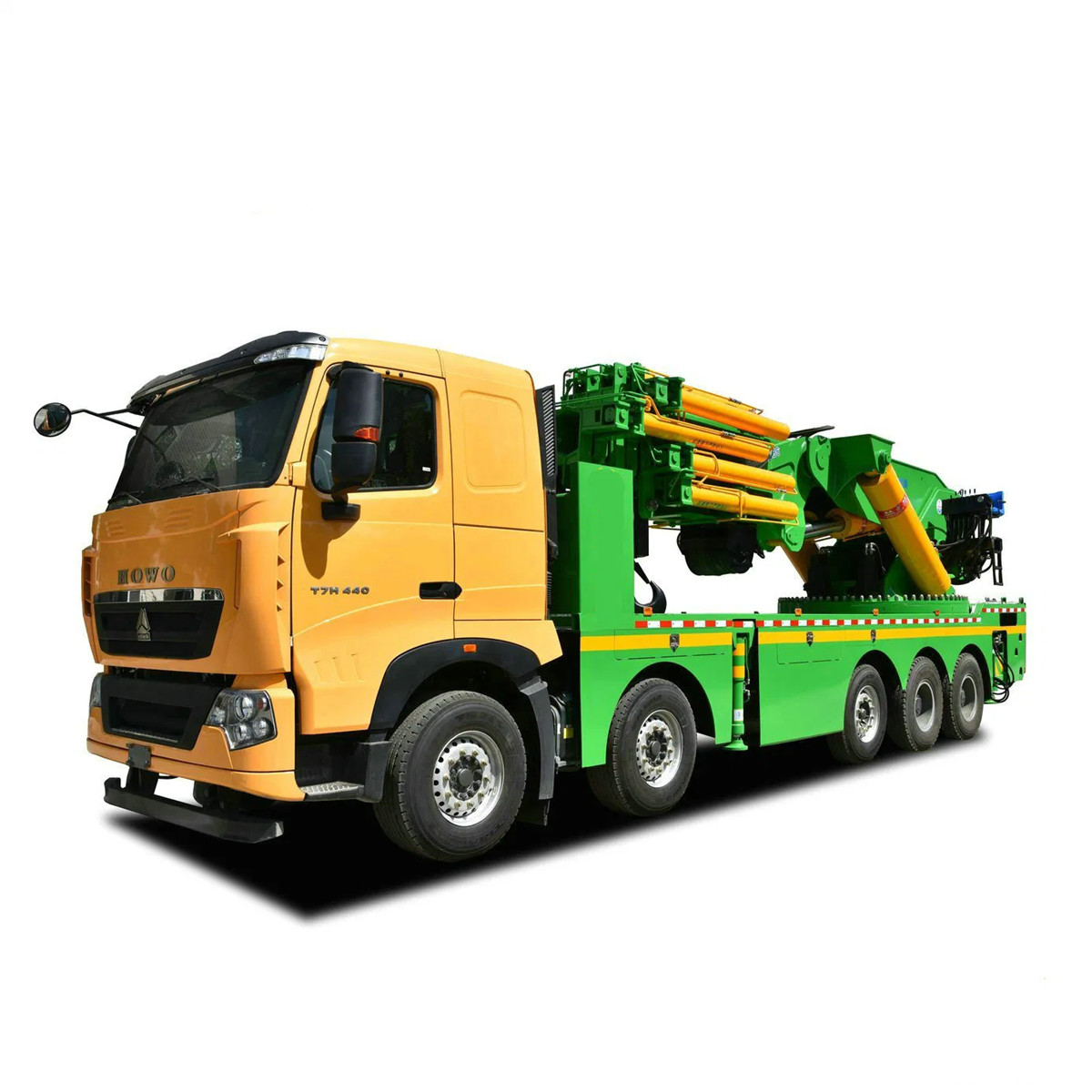

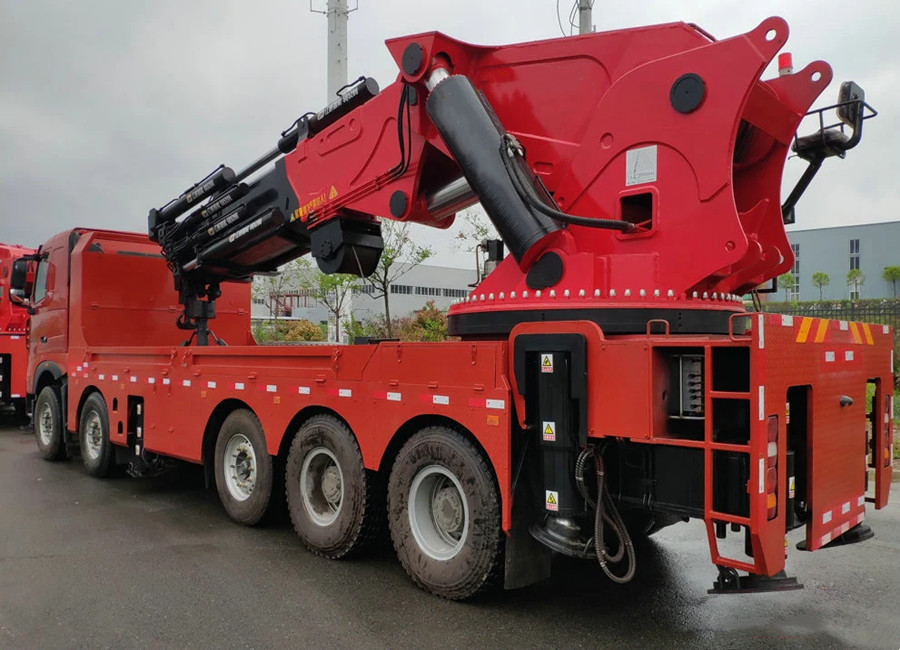

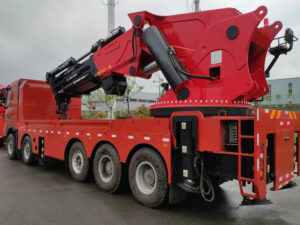

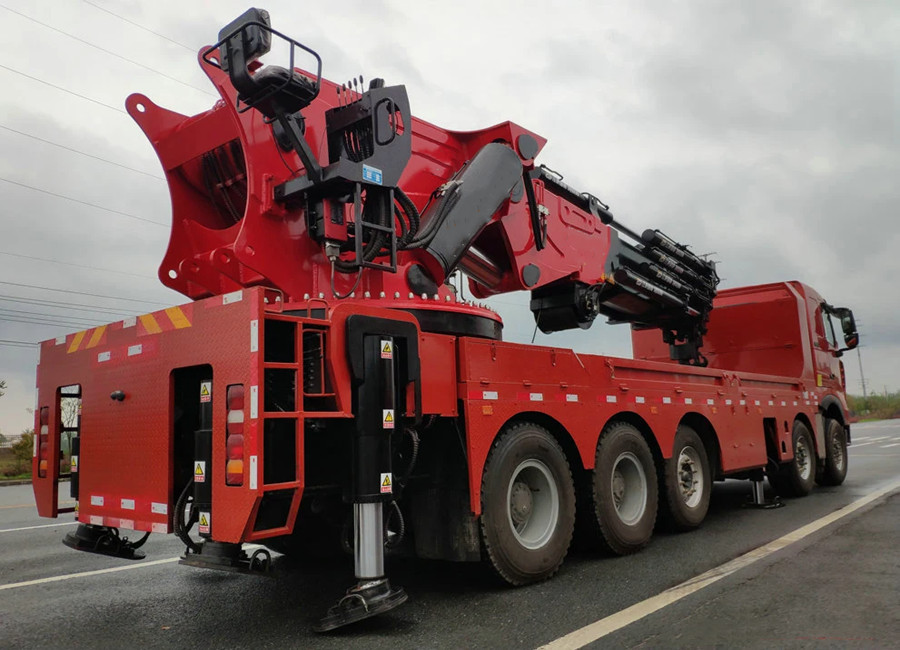

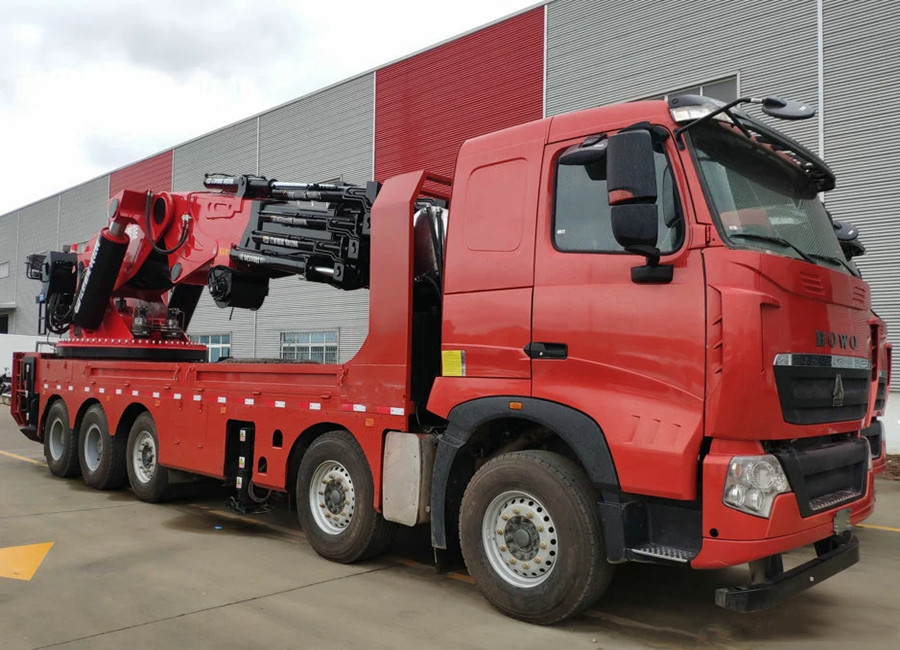

The HOWO 130 Ton Knuckle Boom Folding Crane Truck is a powerful and versatile heavy-duty vehicle designed for demanding lifting and material handling tasks. З його вражаючою здатністю до підйому, extensive working range, and advanced safety features, this crane truck is the ideal choice for various industries, including construction, logistics, and more.
Features:
- Model #: SQ5200ZB6 / Knuckle Crane 130ton at 4m
- Max Lifting Moment: 5200 тонна . M
- Максимальна потужність підйому:
- 260,000 kg at 2.0m
- 75,000 kg at 6.7m
- 60,000 kg at 8.2m
- 32,000 kg at 14m
- Max Lifting Height: 17.8 метрів
- Max Working Radius: 15.3 метрів
- Boom Section: 6 stages for enhanced flexibility
- Rotation Angle: Full 360° rotation capability for precise positioning
- Rated Working Pressure: 28 MPa for optimal hydraulic performance
- Capacity: 130 тонн, making it suitable for heavy loads
- Driving Height: 3.45 meters for improved visibility
- Outrigger: 4 hydraulic outriggers with adjustable settings for stability during operation
- Crane Weight: 52,000 kg for a balanced and robust design
- Installation Space: 8,000 мм, providing sufficient room for crane setup
- Swing Type: Planetary gear reduction ensures smooth and controlled movement
- Safety Device: Equipped with various safety features, including a Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, and Hook Safety Device
- Options: Additional features available, such as an Aux. Winch, Aux. Boom, and Remote Control, for enhanced functionality
- Material: Constructed with HG785D, a durable and reliable material
- Truck for Reference: Compatible with Dongfeng trucks (customization options available for other truck brands)
- Cabin: Features an 8×4 driving configuration with a Left Hand Drive (Right Hand Drive customization available)
- Color: Optional color choices to suit your preferences
- Vehicle Main Dimensions: Overall Size (L x W x H): 11,950 X 2,500 X 3,800 мм
- Wheel Base: 1,800 + 4,600 + 1,350 mm for stability and load distribution
- Cargo Body: Dimensions of 6,800 X 2,350 X 500 mm for cargo transportation
- Weight in KGS:
- Gross Vehicle Weight (GVW): 31,000 кг
- Tare Weight: 14,500 кг
- Engine: Powered by a diesel engine with the following specifications:
- Type: Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter-cooling
- Horse Power: 371 HP (273 kW)
- Max Torque: 1,500 N.m
- Max Speed: Capable of reaching speeds of up to 102 km/h
- Gearbox: Manual gearbox with 10 forwards & 2 reverses, equipped with a Power Take-Off (PTO)
- Tire: Outfitted with 12R22.5 tubeless tires, including one spare tire for added convenience. A total of 13 tires provide stability and reliability during transportation and crane operation.
Специфікація:
| Item | Unit | Специфікація |
|---|---|---|
| Model # | – | SQ5200ZB6 / Knuckle Crane 130ton at 4m |
| Max Lifting Moment | тонна . M | 5200 |
| Максимальна потужність підйому | – | – 260,000 kg at 2.0m<br>- 75,000 kg at 6.7m<br>- 60,000 kg at 8.2m<br>- 32,000 kg at 14m |
| Max Lifting Height | M | 17.8 |
| Max Working Radius | M | 15.3 |
| Boom Section | – | 6 stages |
| Rotation Angle | – | 360° All Rotation |
| Rated Working Pressure | MPa | 28 |
| Capacity | t | 130 |
| Driving Height | M | 3.45 |
| Outrigger | – | 4, adjustable, Hydraulic operating |
| Crane Weight | Kg | 52,000 |
| Installation Space | Mm | 8,000 |
| Swing Type | – | Planetary gear reduction |
| Safety Device | – | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device |
| Options | – | Aux. Winch, Aux. Boom, Remote Control |
| Material | – | HG785D |
| Truck for Reference | – | Dongfeng (another truck brand that can be customized) |
| Cabin | – | Driving Type: 8×4, Left Hand Drive (Right Hand Drive Type Can Be Customized) |
| Color | – | Optional |
| Vehicle Main Dimensions | – | Overall Size (L x W x H): 11,950 X 2,500 X 3,800 мм |
| Wheel Base | Mm | 1,800 + 4,600 + 1,350 |
| Cargo Body | Mm | 6,800 X 2,350 X 500 |
| Weight in KGS | – | GVW: 31,000 кг
Tare Weight: 14,500 кг |
| Engine | – | Type: Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power: 371 HP (273 kW) Max Torque: 1,500 N.m Emission Standard: Euro 2, Euro 3, Euro 4, Euro 5 |
| Max Speed | Km/h | 102 |
| Gearbox | – | Manual gearbox with 10 forwards & 2 reverses, with PTO |
| Tire | – | 12R22.5 tubeless tire, 13 pieces including one spare tire |
