Вантажівка ISUZU GIGA з краном 10T XCMG

DESCRIPTION
Shipping Size	мм	11000×2550×3980
Shipping Weight	кг	20500

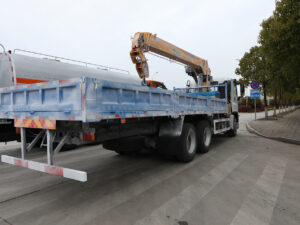

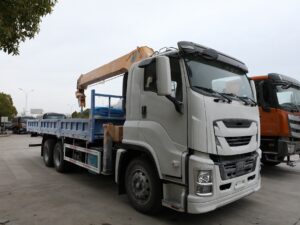

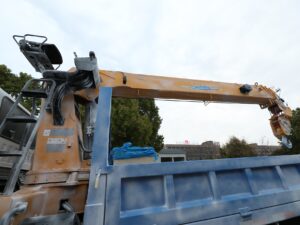

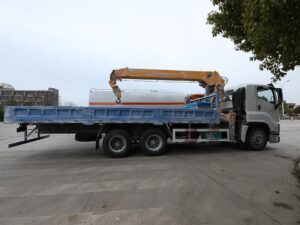

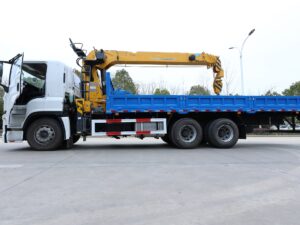

Photos for reference only
Cab Truck	ISUZU	GIGA 6×4 Left hand drive
Engine	ISUZU	420hp diesel engine
Transmission	ZF	Manual 8 speed forward, 1 reverse speed
Cargo Box	CSCTRUCK	6m
Crane Unit	XCMG	10ton telescopic boom
Max Lift Height	m	15.5
Max Lift Weight	кг	10000 @ 2.5m
Max. outreach	m	14
Boom sections		4

Вантажівка Запит

Категорія: Евакуатор з краном Tag: Евакуатор з краном

Опис
Огляди (0)

Короткий

The Вантажівка ISUZU GIGA з краном 10T XCMG is a powerful and versatile combination, designed to handle various lifting and transportation tasks with ease.

Особливості

The ISUZU GIGA Truck with 10T XCMG Crane is a remarkable piece of equipment with several outstanding features.

The ISUZU GIGA truck is known for its robustness and reliability. It likely features a powerful engine that provides sufficient horsepower and torque to handle heavy loads and challenging road conditions. The chassis is engineered for stability and durability, ensuring a smooth and safe ride.

The 10T XCMG crane is a key component of this combination. It is capable of lifting and maneuvering loads of up to 10 tons with precision and ease. The crane is likely equipped with advanced control systems that allow for smooth and accurate operations, reducing the risk of accidents and damage during lifting.

The crane may have multiple boom sections that can be extended and retracted to reach different heights and distances, providing flexibility in various working scenarios. It might also come with safety features such as overload protection and emergency stop systems to ensure the safety of both the operator and the surrounding environment.

The integration of the truck and the crane is seamless, with proper mounting and connection points to ensure stability and balance during crane operations. The truck’s suspension and braking systems are likely enhanced to handle the additional weight and dynamic forces exerted during lifting.

Наприклад, in construction sites, в Вантажівка ISUZU GIGA з краном 10T XCMG can be used for lifting and transporting construction materials, installing equipment, or conducting rescue operations.

Overall, this combination offers a reliable and efficient solution for heavy lifting and transportation needs, combining the strength of the ISUZU GIGA truck with the functionality of the 10T XCMG crane.

SPECIFICATION

General Information
Cab Chassis Make/Model	ISUZU/QL5350TZZ	Wheel Drive	6×4 LHD
Measurement
Overall Size (L × W × H)(мм)	11000×2550×3980	Front/Rear Overhang(мм)	1370/1950мм
Front/Rear Track(мм)	2060/1855мм	Wheelase(мм)	5200+1370мм
Weights
G.C.W(кг)	40000	Chassis Tare /Curb Weight(кг)	10960
G.V.W (кг)	35000	Crane Tare Weight(кг)	2100
Vehicle Tare /Curb Weight(кг)	15560	Cargo Box Weight(кг)	2500
Payload Weight(кг)	18990	F/R Axle Rating(тонна)	9/13+13
Cab
Cab Style	Sleeper Cab	Cab Model	VC66
Cab Roof	Standard(low roof)	Cab Width	2400мм
Construction	Full steel suspended	No. of Seats	3
Instrument & Controls	standard	Driver Seats	air bag
Tiltable	Front tiltble	Equipment & Device	AC, power steering
Engine
Make/Model	ISUZU/6WG1-TCG60	Output Power/Speed	309kW/1400rpm
Max. Torque / Speed	2250N.m at 900-1300rpm	Displacement	15.681L
Engine Type	Water cooled, 6 cylinders ,4 stroke, turbo charged,diesel engine	Emission Regulation	EURO 3
Transmission
Make/Model	ZF8S	Type	Manual
Gear Numbers	8 forward +1 reverse	First Gear Ratio	/
Wheels
Wheel Numbers	12+1 spare tire	Tires	315/80R22.5 20PR
Crane
Technical Data
Rated lifting moment		250 KN.M
Rated lifting capacity		10000 кг (2.5m)
Max. outreach		14m
Max. lines of the hook		4
Slewing angle		Continuous
Boom raising angle		360°
Max. lifting height (the measurement from the ground after the outriggers fully extended)		15.5m
Length of the boom system (retracted)		4.863m
Length of the boom system (fully extended)		13.663m
Boom sections		4
Outrigger span (fully extended)		5.7m
Recommended flow rate		63 lpm
Operating pressure		26 МПа
Recommended oil tank capacity		200 L
Cargo Box
Model/Model	CB06/CSCTRUCK	Cargo Box Size	6×2.3×0.45m
Material	High tensile steel	Floor/Platform Thick	5мм
Door	All side open	Side Wall Thickness	2мм
