BREVE

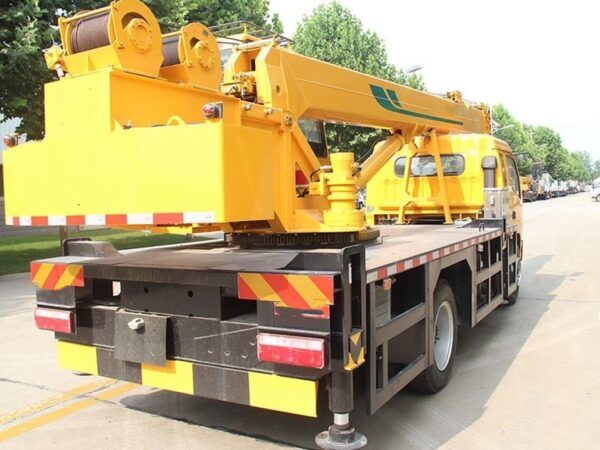

• With an 8 – ton lifting capacity, this crane is suitable for a variety of medium – scale lifting tasks. It can be used for tasks such as loading and unloading construction materials at building sites, moving heavy equipment within industrial facilities, or assisting in agricultural applications where moderately heavy objects need to be hoisted.

• The use of the Yituo Dongfanghong chassis provides a reliable and sturdy foundation for the crane. The Dongfanghong chassis is well – known for its durability and stability. It is engineered to handle the weight and stress associated with the crane’s operations. The chassis also offers good mobility, allowing the crane to be easily transported to different job sites, whether they are on rough construction terrains or within agricultural fields.

• In construction, it can be used for tasks like lifting and placing steel beams, concrete blocks, or scaffolding materials. In the agricultural sector, it can help with tasks such as lifting and moving large farming implements or loading harvested crops onto trucks. Beey xan, in small – scale industrial settings, it can be employed for machinery maintenance and relocation.

• The crane is likely designed with a focus on balance and stability. It has a well – engineered structure that ensures safe and efficient lifting operations. The combination of the Senyuan crane mechanism and the Dongfanghong chassis is optimized to work together, providing a seamless lifting experience.

• It may be equipped with features that make it easy for the operator to control the crane. This could include intuitive control levers, a clear view from the operator’s cab, and safety features such as load – limiting indicators to prevent overloading and ensure the safety of the operator and the surrounding environment.

NOJ

• With an 8 – ton lifting capacity, this crane is well – equipped to handle a variety of medium – weight loads. It can effectively lift and move objects such as construction materials, machinery parts, and agricultural produce. The lifting mechanism is designed for precision and efficiency, allowing for smooth and controlled hoisting operations. It likely has a well – calibrated winch system and boom structure that work in harmony to ensure accurate load placement at the desired height and location.

• The Yituo Dongfanghong chassis serves as a solid and dependable base for the crane. This chassis is known for its robust construction, made from high – quality materials that can withstand heavy loads and rough terrains. It provides excellent stability during crane operations, reducing the risk of tipping. The chassis also offers good traction, enabling the crane to be maneuvered easily on different surfaces, whether it’s a construction site with uneven ground or an agricultural field.
• Its engineering is focused on durability, with components that are built to last. The chassis – related systems, such as the suspension and axle, are designed to support the weight of the crane and the load it is carrying, while also providing a comfortable ride for the operator during transportation to and from job sites.

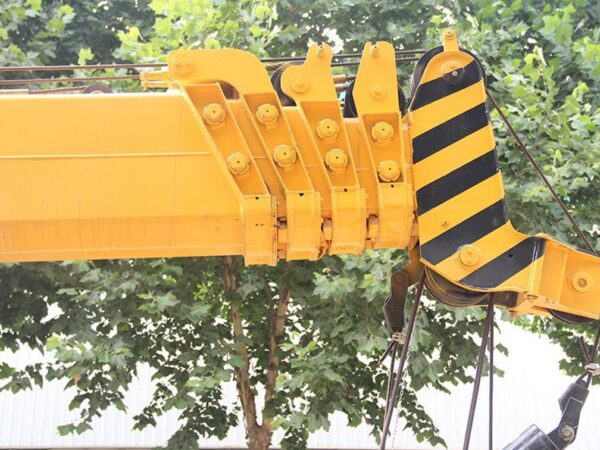

• The crane’s boom is an important feature. It is likely to be constructed with strength and flexibility in mind. The boom may have multiple sections that can be extended or retracted, allowing for variable reach depending on the lifting requirements. This telescopic feature enables the crane to access areas at different distances and heights, making it suitable for a range of applications. The boom’s design also ensures that it can bear the 8 – ton load without excessive deflection, maintaining the integrity of the lifting operation.

• Safety is a top priority in the design of this crane. It is likely equipped with a load moment indicator, which constantly monitors the relationship between the load weight, the boom’s angle, and the radius of the lift. This device alerts the operator when the crane is approaching its safe working limits, preventing overloading and potential accidents.
• There may also be anti – two – block systems in place to avoid the hoist rope from over – winding and causing damage to the crane or endangering the load. Adicionalmente, the operator’s cab is probably designed to provide good visibility of the lifting area and surroundings, enhancing overall safety during operation.

• The crane is designed for user – friendly operation. It may have a set of intuitive control levers and pedals that allow the operator to precisely control the lifting, swinging, and telescoping actions of the crane. The controls are likely to be ergonomically arranged within the operator’s cab, reducing operator fatigue during long – hour operations.
• The integration of the crane with the Dongfanghong chassis also means that the overall operation, including transportation and setup at the job site, is streamlined. The operator can easily transition between driving the vehicle to the site and setting up the crane for lifting operations.

• This crane is highly versatile. In construction, it can be used for tasks such as erecting scaffolding, installing roofing materials, and lifting building components. In the agricultural field, it can assist in tasks like loading hay bales onto trailers, lifting irrigation equipment, or moving large agricultural machinery for maintenance. It can also be useful in small – scale industrial settings for tasks like loading and unloading goods from trucks or relocating machinery within a factory.

ESPECIFICACIÓN

A'alajil t'aan yanak
Model	SMQ5125JQZ
Overall Machine Dimensions	Length × Width × Height
Batalla	4,000 milímetro
Total Counterweight	12.495 Toneladas
Maximum Traveling Speed	84 kilómetro leti' h
Maximum Gradability	30%
Approach Angle/Departure Angle	21/11.5 degrees
Parámetros le kisbuuts'o'
Engine Model	Chaochai CY4BK251
Maximum Output Power	96 kW
Rated Rotational Speed	2,800 rpm
Parámetros le chasis
Chassis Model	LT1120JBC1
Lifting Capacity
Maximum Lifting Height – Basic Boom	8 Metros
Maximum Lifting Height	30.3 Metros
Maximum Lifting Height – Basic Boom + Jib	30.3 Metros
Length of Lifting Boom – Fully Extended Boom	28.3 Metros
Length of Lifting Boom – Basic Boom + Jib	8 Metros
Operation Parameters
Outrigger Span	Longitudinal × Transverse
