BRIFF

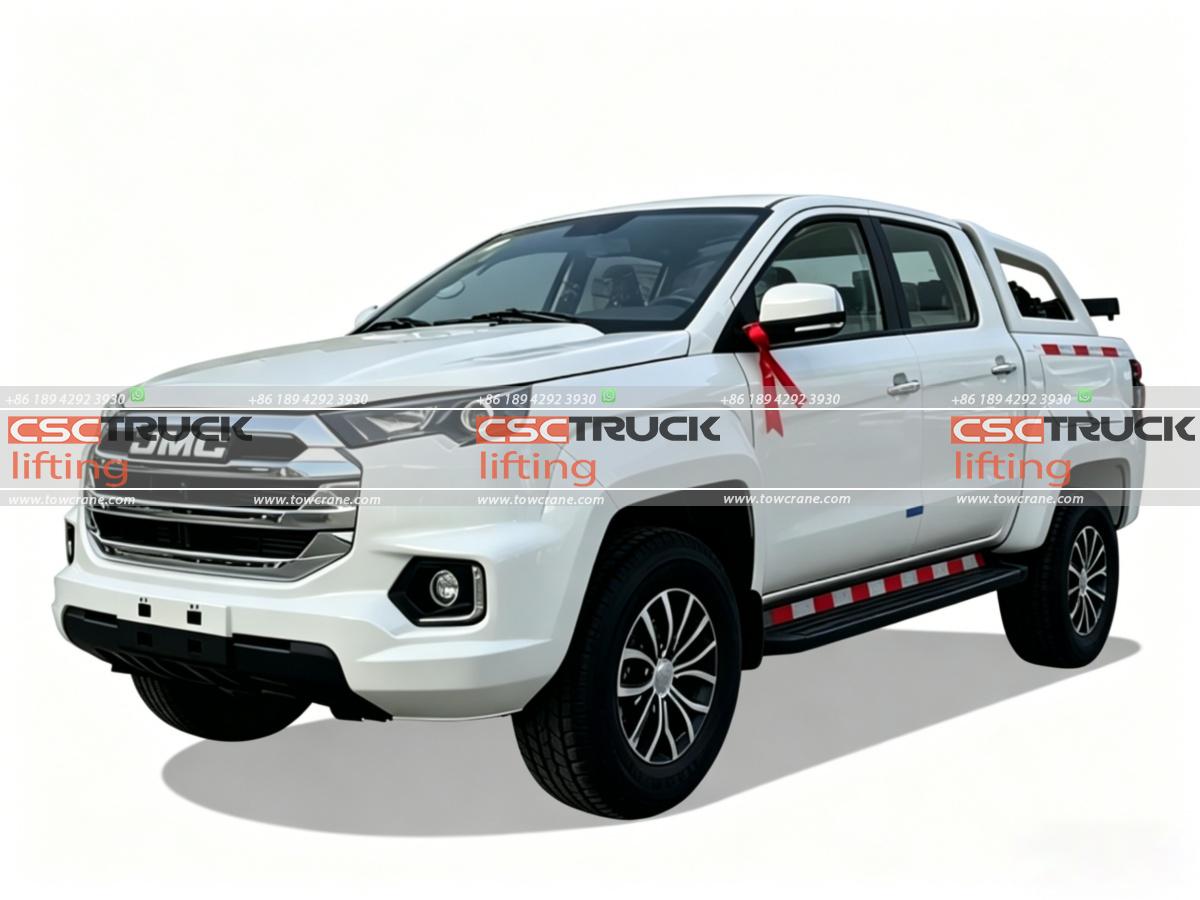

Mae'r JMC Repo Tow Truck is a compact integrated tow truck engineered for urban recovery, roadside assistance, and light-duty vehicle relocation. Built on the reliable JMC J56X22FG chassis, it is powered by a Ford-derived 2.0L turbo diesel engine that delivers strong low-end torque, effeithlonrwydd tanwydd, and dependable performance in stop-and-go city operations.

Designed for tight urban environments, the truck combines compact dimensions (5,100 × 1,905 × 1,910 mm) with a 3,085 mm wheelbase, allowing easy access to narrow streets, underground parking structures, and height-restricted facilities below 2.0 metrau. An electronically selectable 4WD system with high/low range improves traction and stability on wet ramps, soft shoulders, snow, or uneven surfaces. Its reinforced chassis integrates a multifunction hydraulic tow arm capable of lifting up to 620 kg and towing up to 1,140 kg, making it ideal for passenger cars, SUVs, and light commercial vehicles. The structure is protected by cathodic electrophoretic coating for long-term corrosion resistance in demanding outdoor and wet-weather environments. Operator-focused features such as keyless entry, push-button start, leather seats, and a multifunction steering wheel enhance comfort during extended shifts. Optional equipment includes hydraulic remote control, additional LED work lighting, toolboxes, and tow arm appearance customization to meet fleet or branding requirements.

hwn lori tynnu repo is well-suited for roadside recovery services, accident clearance, illegal parking enforcement, automotive repair support, and rental fleet operations where maneuverability, dibynadwyedd, and operational efficiency are essential.

FEATURE

Injan & Trosglwyddiad

• JX4D20A6L 2.0L Turbo Diesel Engine
  Ford-derived diesel powertrain optimized for strong low-speed torque, fuel economy, and dependable urban towing performance.
• 6-Speed Manual Transmission (Standard)
  Provides precise gear control and mechanical reliability for experienced operators.
• 8-Speed Automatic Transmission (Optional)
  Enhances driving comfort with smoother shifting and reduced fatigue in congested traffic conditions.

Drivetrain & Handling

• Electronic Selectable 4WD with High/Low Range
  On-demand four-wheel drive improves traction on slippery roads, steep ramps, mud, or snow, while low-range gearing delivers additional pulling force when required.
• 11/10 Multi-Leaf Spring Suspension
  Designed to balance load-carrying capability, towing stability, and commercial-grade durability.
• 4S/4M ABS Braking System
  Four-channel ABS enhances braking control and stability during towing or emergency stops on low-traction surfaces.

Siasi & Gwydnwch

• Integrated Reinforced Tow Structure
  The hydraulic tow arm is directly integrated into the strengthened chassis frame, increasing structural rigidity and towing stability.
• Cathodic Electrophoretic Coating
  Advanced anti-corrosion treatment provides uniform protection against moisture, road salt, and harsh operating environments.
• 255/60R18 All-Terrain Tires
  Deliver a balanced combination of road comfort, gwydnwch, and additional grip for mixed surface conditions.
• 200 L Fuel Tank
  Supports extended operating hours and reduces refueling-related downtime.

Tynnu & Recovery Equipment

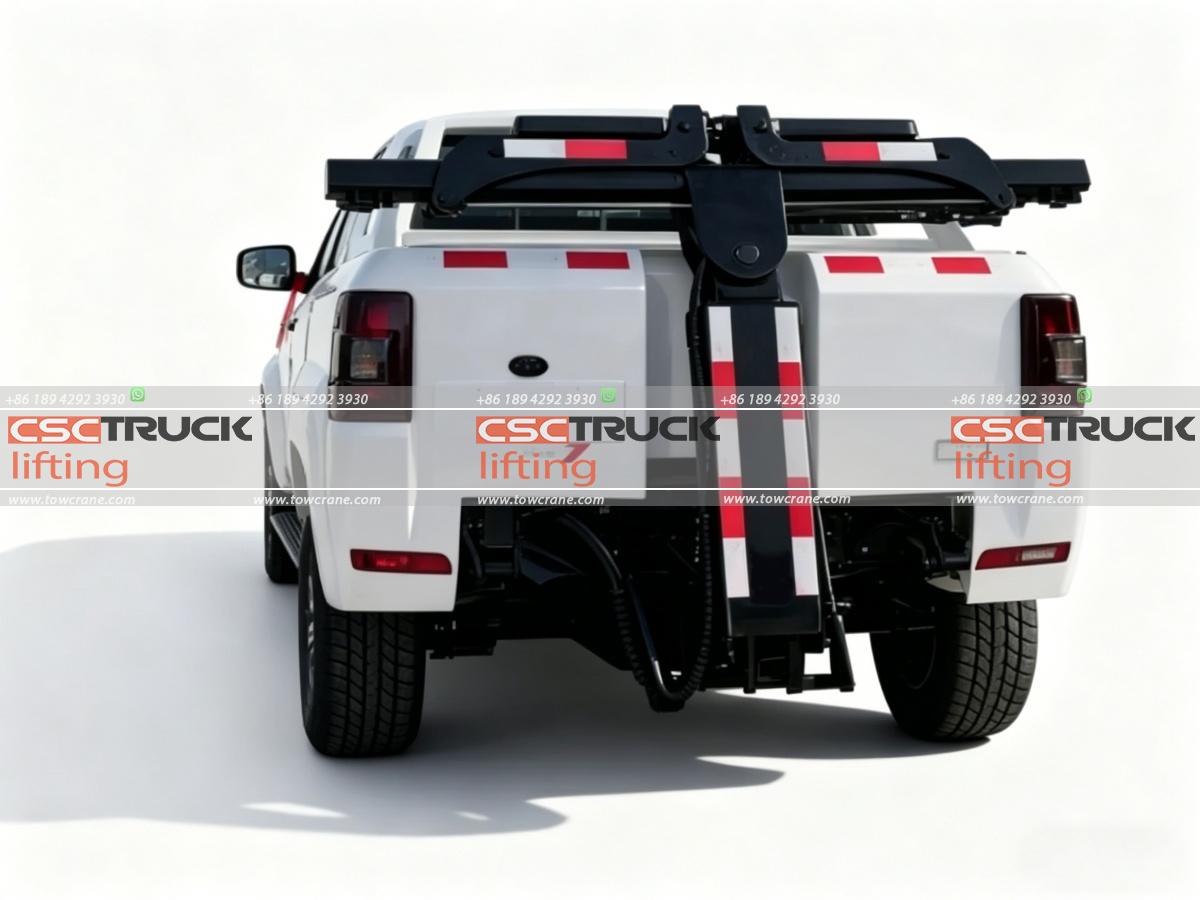

• Multifunction Hydraulic Tow Arm
  Designed for efficient lifting and towing of disabled vehicles with secure wheel-lift operation.
• 620 kg Lifting Capacity
  Suitable for most compact cars, sedans, SUVs, and light commercial vehicles.
• 1,140 kg Towing Capacity
  Provides dependable urban towing capability for a wide range of light-duty recovery tasks.
• Hydraulic Remote Control (Optional)
  Allows operators to control towing functions remotely, improving safety and convenience during recovery operations.

Dimensiynau & Mhwysedd

• Overall Dimensions: 5,100 × 1,905 × 1,910 mm
  Compact body design enables access to underground garages and restricted urban spaces.
• Wheelbase: 3,085 mm
  Optimized for maneuverability while maintaining towing stability.
• Curb Weight: 2,265 kg
  Provides useful payload capacity for tools, recovery equipment, and operational accessories.
• GVW: 3,395 kg
  Falls within the light-duty commercial vehicle category for easier operation and licensing compliance.

Cysur Gweithredwr & Convenience

• Keyless Entry & Push-Button Start
  Improves efficiency during frequent stop-and-go recovery operations.
• Leather Seats
  Durable and easy to clean, ideal for demanding commercial environments.
• Multifunction Steering Wheel
  Enables convenient control of vehicle functions while maintaining driver focus.

Optional Equipment

• Tow Arm Appearance Customization
  Color and finish options available for fleet branding or visual identity.
• Additional LED Work Lighting
  Enhances visibility and safety during nighttime or low-light recovery operations.
• Lockable Toolboxes
  Secure storage for straps, Chocks olwyn, warning devices, and recovery tools.

MANYLEB
