מִספָּר 10 מנוף בום טלסקופי טון

מִספָּר 10 מנוף בום טלסקופי טון

כושר הרמה מדורג	10000 ק"ג
מקסימום. גובה הרמה	20.1 מ
Length of the boom system (retracted)	5.3 מ
Length of the boom system (fully extended)	18.1מ

חקירת משאית

קָטֵגוֹרִיָה: מנוף טלסקופי למשאית תָג: מִספָּר 10 טוֹן

תֵאוּר
ביקורות (0)

קָצָר

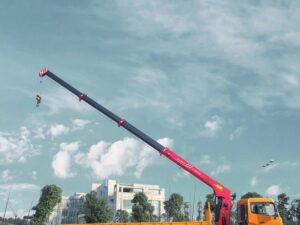

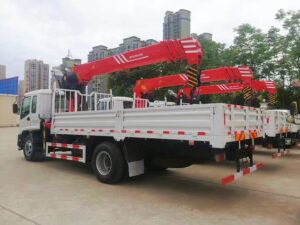

ה מִספָּר 10 מנוף בום טלסקופי טון is a powerhouse in the lifting equipment domain. It can handle hefty loads up to 10 טונות. The telescopic boom is a standout feature, providing adjustable length for reaching diverse heights and distances.

This crane is engineered with precision and durability. It offers excellent stability during operation, thanks to its well-designed chassis and outrigger systems. The control panel is user-friendly, enabling operators to maneuver the crane with ease and accuracy.

Ideal for construction sites, it can lift heavy building materials like steel beams and concrete slabs. It’s also suitable for industrial applications, such as loading and unloading heavy machinery. The SANY 10 Ton Telescopic Boom Crane combines strength, גְמִישׁוּת, ואמינות, making it a top choice for any project that demands efficient and precise heavy lifting.

תכונות

The SANY 10 טוֹן Telescopic Boom Crane is a remarkable piece of engineering that offers a plethora of features designed to meet the most demanding lifting requirements.

1.Powerful Lifting Capacity
עם יכולת הרמה מקסימאלית של 10 טונות, this crane is capable of handling a significant amount of weight. It can effortlessly lift heavy construction materials such as steel girders, large concrete blocks, and industrial equipment. The hydraulic system is highly efficient, providing smooth and precise lifting and lowering operations. It ensures that the load is controlled with utmost accuracy, minimizing the risk of accidents.

2.Telescopic Boom Functionality
The telescopic boom is a key characteristic. It allows for variable length adjustment, providing great flexibility in reaching different heights and horizontal distances. This adaptability is crucial in complex construction sites where the lifting needs can change rapidly. The boom is made from high-strength materials that can withstand the immense forces exerted during lifting. It can be extended or retracted quickly and smoothly, enabling the crane to access confined spaces or reach over obstacles.

3.Exceptional Stability
The crane is built with a focus on stability. It has a robust chassis that distributes the weight of the crane and the load evenly. The outrigger system is highly effective. These outriggers can be extended and adjusted to provide a firm and level base on various terrains, including uneven ground. This stability is essential for safe and reliable lifting, especially when dealing with heavy and bulky loads.

4.Intuitive Control System
The control system of the SANY 10 Ton Telescopic Boom Crane is designed for operator convenience. It features user-friendly joysticks and control panels. The controls are highly responsive, allowing the operator to make fine adjustments to the crane’s movements. The system also includes safety features such as overload protection, which automatically stops the lifting operation if the load exceeds the rated capacity, and emergency stop buttons for immediate shutdown in case of any unforeseen circumstances.

5.יישומים רב -תכליתיים
This crane is suitable for a wide range of applications. In construction, it is used for erecting structures, installing prefabricated components, and transporting materials. In industrial settings, it can load and unload heavy machinery onto trucks or trailers. It is also valuable in shipyards and ports for handling cargo. The SANY 10 Ton Telescopic Boom Crane’s combination of power, גְמִישׁוּת, and safety makes it an indispensable asset in many industries.

לסיכום, the SANY 10 Ton Telescopic Boom Crane’s array of features makes it a top choice for heavy lifting tasks, ensuring both productivity and safety in any work environment.

מִפרָט

DESCRIPTION
Extending Boom Nos	5
כושר הרמה מדורג	10000 ק"ג
רגע הרמה מדורג	25
מקסימום. outreach	17.7 מ
מקסימום. lines of the hook	6
Slewing angle	Continuous
Boom raising angle	0 ~ 75 °
מקסימום. גובה הרמה	20.1 מ
Length of the boom system (retracted)	5.3 מ
Length of the boom system (fully extended)	18.1מ
Outrigger span (fully extended)	5600 (מ"מ)
Recommended flow rate	60 ~ 90 L/min
Operating pressure	31 MPA
Recommended oil tank capacity	200 ל
Crane moment (dynamic)	433.7 kNm 44.2 mt
Torsional moment (dynamic)	26.3 kNm 2.7 mt
משקל מנוף	4110 ק"ג (Floor control) 4130 ק"ג (High seat)
