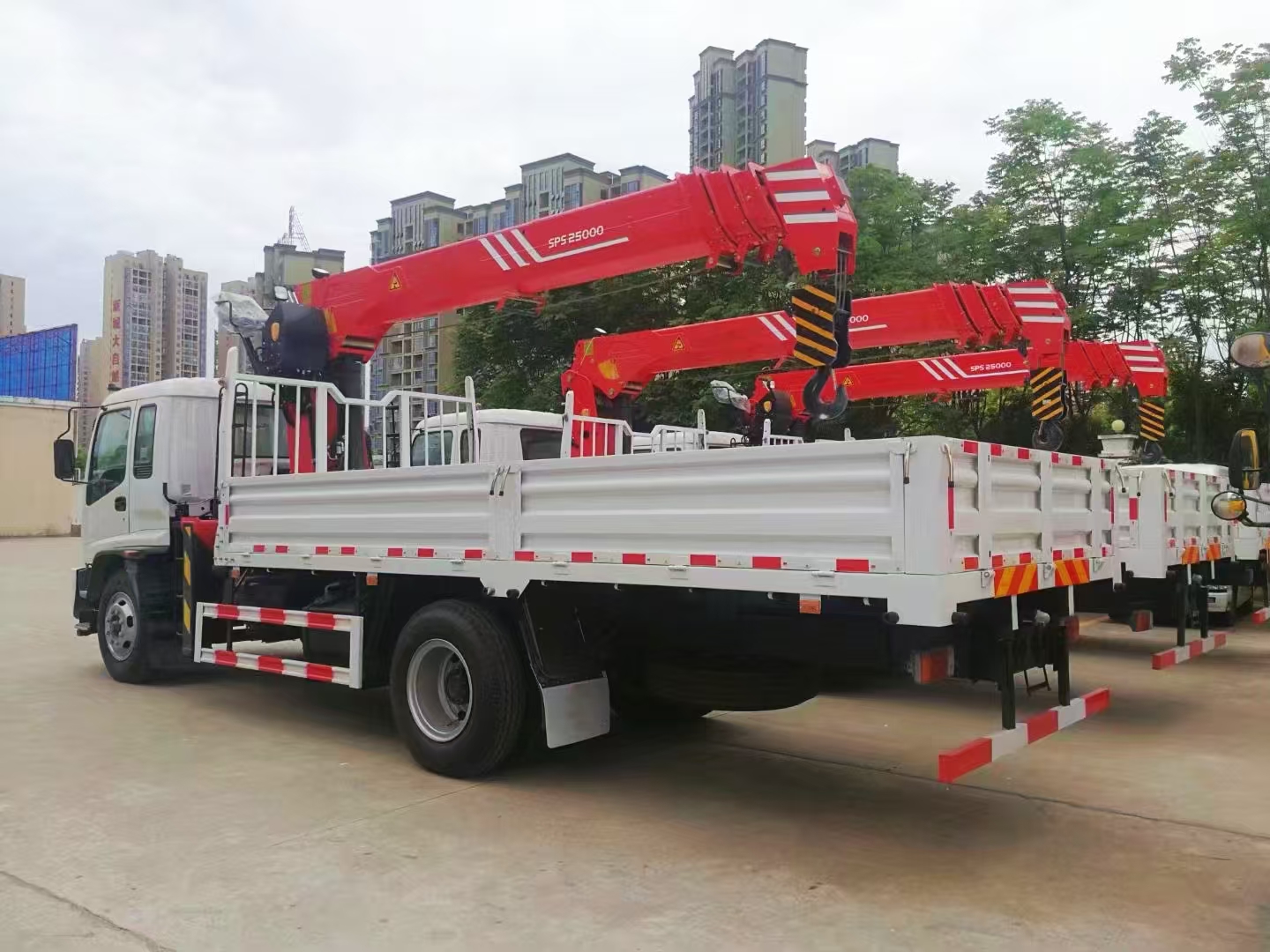

SANY 10 Ton Telescopic Boom Crane

SANY 10 Ton Telescopic Boom Crane

Rated lifting capacity	10000 ကီလိုဂရမ်
မက်တယ်။. lifting height	20.1 ဍ
Length of the boom system (retracted)	5.3 ဍ
Length of the boom system (fully extended)	18.1ဍ

ကုန်ကားစုံစမ်းရေး

ဖော်ပြချက်
သုံးသပ်ချက်များ (0)

အကျဉ်းချုပ်

ဟိ SANY 10 Ton Telescopic Boom Crane is a powerhouse in the lifting equipment domain. It can handle hefty loads up to 10 တန်. The telescopic boom is a standout feature, providing adjustable length for reaching diverse heights and distances.

This crane is engineered with precision and durability. It offers excellent stability during operation, thanks to its well-designed chassis and outrigger systems. The control panel is user-friendly, enabling operators to maneuver the crane with ease and accuracy.

Ideal for construction sites, it can lift heavy building materials like steel beams and concrete slabs. It’s also suitable for industrial applications, such as loading and unloading heavy machinery. The SANY 10 Ton Telescopic Boom Crane combines strength, ပြောင်းလွယ်ပြင်လွယ်, ယုံကြည်စိတ်ချရမှု၊, making it a top choice for any project that demands efficient and precise heavy lifting.

အင်္ဂါရပ်များ

The SANY 10 တစ်တန် Telescopic Boom Crane is a remarkable piece of engineering that offers a plethora of features designed to meet the most demanding lifting requirements.

1.အစွမ်းထက်ရုတ်သိမ်းစွမ်းရည်
With a maximum lifting capacity of 10 တန်, this crane is capable of handling a significant amount of weight. It can effortlessly lift heavy construction materials such as steel girders, large concrete blocks, and industrial equipment. The hydraulic system is highly efficient, providing smooth and precise lifting and lowering operations. It ensures that the load is controlled with utmost accuracy, minimizing the risk of accidents.

2.Telescopic Boom Functionality
The telescopic boom is a key characteristic. It allows for variable length adjustment, providing great flexibility in reaching different heights and horizontal distances. This adaptability is crucial in complex construction sites where the lifting needs can change rapidly. The boom is made from high-strength materials that can withstand the immense forces exerted during lifting. It can be extended or retracted quickly and smoothly, enabling the crane to access confined spaces or reach over obstacles.

3.Exceptional Stability
The crane is built with a focus on stability. It has a robust chassis that distributes the weight of the crane and the load evenly. The outrigger system is highly effective. These outriggers can be extended and adjusted to provide a firm and level base on various terrains, including uneven ground. This stability is essential for safe and reliable lifting, especially when dealing with heavy and bulky loads.

4.Intuitive Control System
The control system of the SANY 10 Ton Telescopic Boom Crane is designed for operator convenience. It features user-friendly joysticks and control panels. The controls are highly responsive, allowing the operator to make fine adjustments to the crane’s movements. The system also includes safety features such as overload protection, which automatically stops the lifting operation if the load exceeds the rated capacity, and emergency stop buttons for immediate shutdown in case of any unforeseen circumstances.

5.Versatile Applications
This crane is suitable for a wide range of applications. In construction, it is used for erecting structures, installing prefabricated components, and transporting materials. စက်မှုဇုန်များတွင်, it can load and unload heavy machinery onto trucks or trailers. It is also valuable in shipyards and ports for handling cargo. The SANY 10 Ton Telescopic Boom Crane’s combination of power, ပြောင်းလွယ်ပြင်လွယ်, and safety makes it an indispensable asset in many industries.

နိဂုံးချုပ်အားဖြင့်, the SANY 10 Ton Telescopic Boom Crane’s array of features makes it a top choice for heavy lifting tasks, ensuring both productivity and safety in any work environment.

သတ်မှတ်ချက်

DESCRIPTION
Extending Boom Nos	5
Rated lifting capacity	10000 ကီလိုဂရမ်
Rated lifting moment	25
မက်တယ်။. outreach	17.7 ဍ
မက်တယ်။. lines of the hook	6
Slewing ထောင့်	Continuous
Boom raising angle	0 ~ 75 ံ
မက်တယ်။. lifting height	20.1 ဍ
Length of the boom system (retracted)	5.3 ဍ
Length of the boom system (fully extended)	18.1ဍ
Outrigger ထွာ (fully extended)	5600 (မီလီမီတာ)
Recommended flow rate	60 ~ 90 လီ/မိနစ်
လည်ပတ်ဖိအား	31 Mpa
Recommended oil tank capacity	200 ြဌ
Crane moment (dynamic)	433.7 kNm 44.2 mt
Torsional moment (dynamic)	26.3 kNm 2.7 mt
Crane weight	4110 ကီလိုဂရမ် (Floor control) 4130 ကီလိုဂရမ် (High seat)
