BRIEF

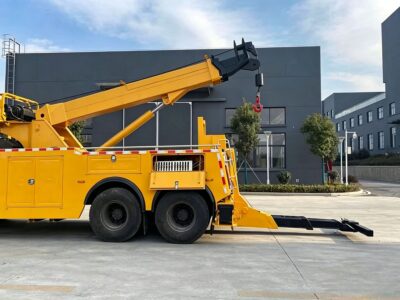

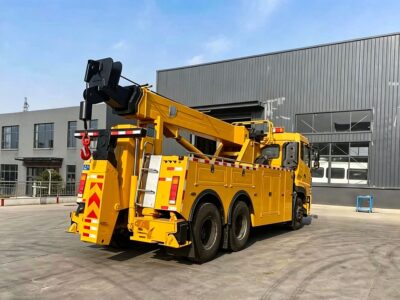

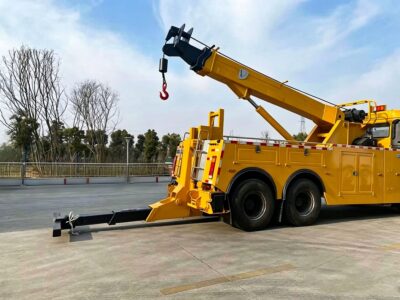

The BEIBEN 30-Ton 6×4 Rotator Tow Truck is a heavy-duty recovery vehicle designed for demanding towing and recovery operations involving trucks, buses, trailers, and other commercial vehicles. Built on a new BEIBEN 6×4 chassis, it combines a 30-ton rotating boom, integrated underlift, and dual heavy-duty winches to provide powerful lifting, pulling, and towing capabilities in a single recovery unit.

Powered by a WEICHAI 430 HP diesel engine and a FAST 12+2 semi-automatic transmission, the rotator tow truck delivers strong power and reliable performance for heavy-load recovery and transportation. Its 6×4 drivetrain, hydraulic power steering, dual-circuit air braking system, and heavy-duty chassis are designed to provide stable and dependable operation on highways, construction sites, ports, mines, and other demanding working environments.

The main recovery system features a 360° hydraulically rotating boom, two-stage extendable underlift, dual winches, and hydraulic outriggers. This configuration allows operators to recover disabled or overturned vehicles from different positions while maintaining stability during heavy lifting and towing. Full-body electrophoresis and anti-corrosion treatment provide additional protection in harsh or coastal environments, while the complete set of operating tools, manuals, and spare parts supports convenient deployment and maintenance.

FEATURES

Chassis & Powertrain

• WEICHAI WP12.430N 430hp diesel engine – delivers high low‑end torque for heavy‑load recovery and steep‑gradient operations.
• FAST F12JZ24A 12 forward +2 reverse semi‑automatic transmission – offers flexible gear selection for heavy pulling and rough‑road driving.
• 6×4 right‑hand‑drive 3‑axle chassis – provides strong traction and stable performance on paved and unpaved surfaces.
• 39500 kg GVW rating – accommodates full heavy‑duty rotator superstructure and maximum recovery payload.
• 4450+1450 mm wheelbase – ensures balanced weight distribution for road travel and lifting stability.

Rotator Boom & Lifting System

• 25000 kg retracted boom lifting capacity – handles heavy‑duty vehicle recovery under close‑range working conditions.
• 9500 kg extended boom lifting capacity – maintains reliable performance at maximum boom outreach.
• 360° continuous slewing angle – enables omnidirectional vehicle recovery without repositioning the truck chassis.
• 5420‑11420 mm total boom length range – delivers versatile reach for varied accident‑scene scenarios.
• 5‑60° boom lifting angle – supports flexible positioning during wrecked‑vehicle lifting and placement.

Underlift Recovery System

• 18000 kg retracted underlift capacity – performs robust frame‑lift recovery for large commercial vehicles.
• 7000 kg extended underlift capacity – keeps stable lifting performance with fully extended underlift arm.
• 1575‑3214 mm effective underlift working length – adapts to different vehicle wheelbases and recovery positions.
• ‑10° to 93° folding angle – accommodates low‑hanging and severely damaged wrecked vehicles.

Winch & Outrigger Stability System

• 2 ×150KN planetary winches – supply powerful synchronous pulling force for stuck‑vehicle rescue operations.
• Φ22mm 45m steel wire rope per winch – provides sufficient cable length for complex off‑road recovery missions.
• 6100 mm front outrigger transverse span +4000 mm rear outrigger transverse span – builds a wide stable support footprint during full‑capacity lifting.
• 7500 mm longitudinal span between front‑rear outriggers – minimizes chassis tilt under maximum lifting loads.

Cab & Driving Configuration

• Sleeper one‑and‑a‑half‑row tiltable steel welded cabin – delivers durable operator accommodation for long‑shift rescue work.
• Factory‑fitted air‑conditioning system – improves operator comfort in high‑temperature working environments.
• 3‑seat cabin layout with adjustable steering wheel – supports multi‑person operating crews for complex recovery jobs.
• AM/FM radio / CD player – provides basic onboard entertainment for long‑distance transit.

Braking, Steering & Tyre

• Dual‑circuit air-compressed drum service brake on all axles – ensures dependable stopping power under full‑load conditions.
• Spring‑applied rear‑axle parking brake + engine exhaust auxiliary brake – enhances safety during downhill transportation and stationary work.
• Hydraulic power‑assisted RHD steering – offers light and precise handling for heavy‑weight truck operations.
• 12.00R20 heavy‑duty radial tyres (11 units including spare) – deliver strong load‑bearing capacity for rough‑site and highway travel.

Corrosion Protection & Complete Delivery Package

• Full‑vehicle electrophoresis anti‑corrosion treatment – resists high‑humidity, high‑salt‑laden coastal and port operating atmosphere.
• Dual manual control stations – allow flexible on‑site operation from different working positions.
• Full set of special repair tools, jacks and spare wheels – enables on‑site maintenance without external support.
• Complete operation, maintenance and spare‑parts manuals – simplify daily inspection, repair and parts replacement work.
