BRIEF

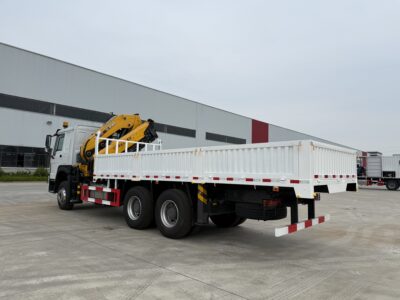

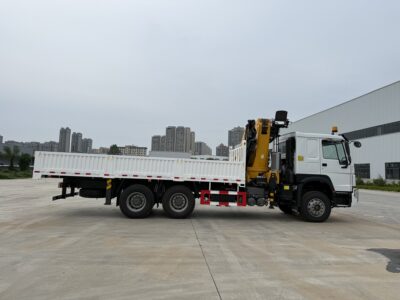

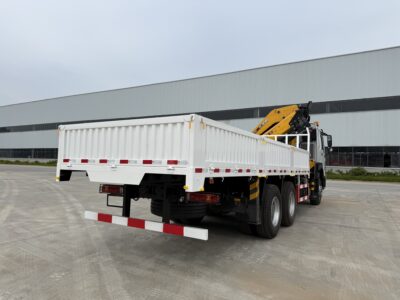

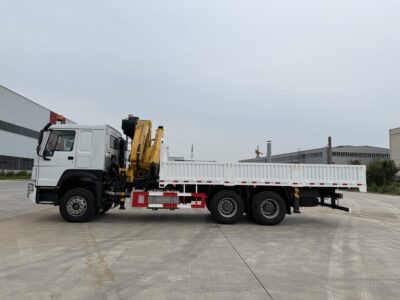

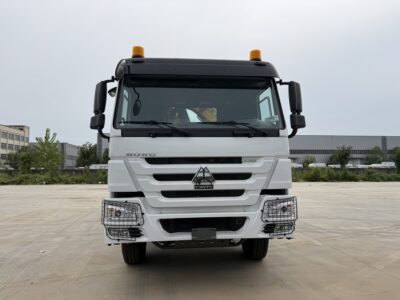

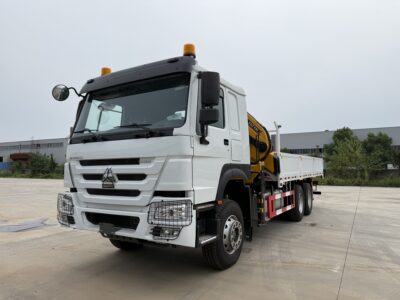

The SINOTRUK 16T XCMG Truck-Mounted Knuckle Crane is a heavy-duty transport and lifting vehicle that combines a reliable SINOTRUK chassis, an XCMG SQZ330 knuckle boom crane, and a 6.5-meter dropside cargo box. Designed for construction, logistics, steel fabrication, equipment transportation, and infrastructure projects, it allows operators to transport and load or unload heavy materials with one vehicle. Steel beams, pipes, machinery, construction materials, and palletized cargo can be carried in the cargo box and handled directly by the mounted crane, reducing the need for separate lifting equipment at the worksite.

The truck is powered by a SINOTRUK WD615.69 diesel engine producing 336 HP and is paired with an HW19710 10-speed manual transmission (10F+2R) for dependable heavy-duty transportation. The XCMG SQZ330 knuckle boom crane provides a maximum lifting capacity of 16,500 kg, a maximum lifting moment of 330 kN·m, a maximum lifting height of 19 meters, and a maximum working radius of 16.37 meters. With a 400° slewing angle and a 0–75° lifting angle range, the articulated crane offers flexible load positioning across different working conditions. Its hydraulic system operates at 31 MPa with a recommended flow rate of 63 L/min, supporting stable crane operation and controlled lifting movements.

The combination of a heavy-duty chassis, large cargo platform, and high-capacity knuckle boom crane makes this truck a practical solution for transporting and handling heavy cargo at construction and industrial sites. The 6,500 × 2,500 × 600 mm dropside cargo box, with a 5 mm bottom and 3 mm side panels, provides sufficient space for various materials and allows all sides to open for convenient loading and unloading. A 9,500 kg front axle and 2 × 16,000 kg rear axles provide the required load-bearing capacity for demanding operations. By integrating transportation and lifting functions into one vehicle, the truck-mounted crane helps simplify site logistics and improve the efficiency of material handling.

FEATURES

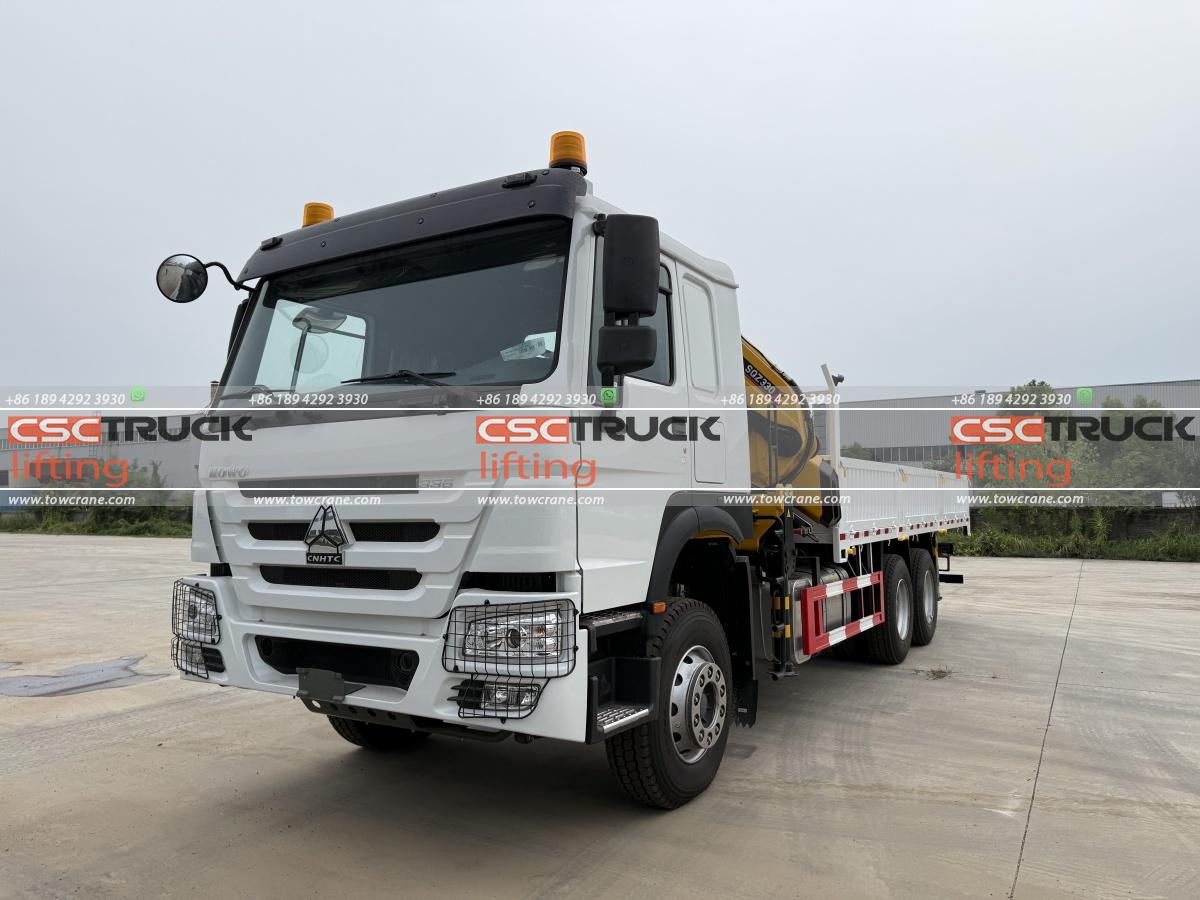

SINOTRUK Chassis & Powertrain – Strong Foundation for Heavy Loads

• WD615.69 diesel engine – 336 HP, providing dependable power for heavy-duty transportation and job-site operation
• HW19710 10-speed manual transmission (10F+2R), offering flexible gear selection for different road and load conditions
• 9,500 kg front axle + 2 × 16,000 kg rear axles, providing strong load-bearing capacity and balanced weight distribution
• 12R22.5 tires (10+1, including spare), providing reliable traction and durability for varied road conditions
• Hydraulic power steering, providing responsive steering control and easier vehicle maneuvering
• Euro II emission standard, suitable for markets where this emission level is applicable

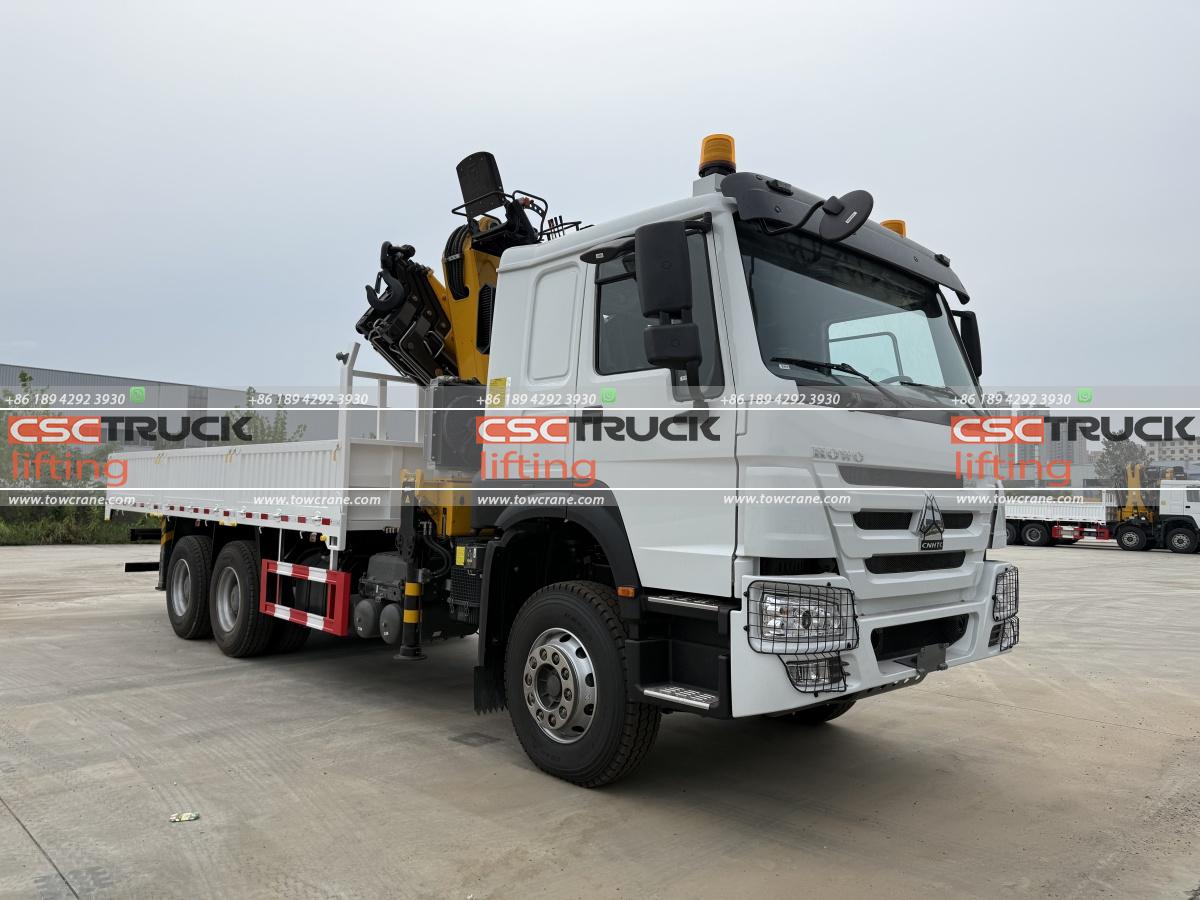

XCMG SQZ330 Knuckle Boom Crane – High Capacity & Flexible Reach

• 16,500 kg maximum lifting capacity, suitable for handling heavy machinery, steel structures, pipes, and construction materials
• 330 kN·m maximum lifting moment, providing strong lifting performance across the working range
• 19 m maximum lifting height, allowing materials to be positioned at elevated locations
• 16.37 m maximum working radius, providing a wide operating range for loading and unloading
• 400° slewing angle, allowing flexible positioning of loads around the truck
• 0–75° lifting angle range, adapting to different lifting and placement requirements
• 2 rear outriggers with 2,342–7,782 mm span, improving stability during crane operation
• 31 MPa hydraulic system with 63 L/min recommended flow, providing the hydraulic power required for lifting, slewing, and boom movement

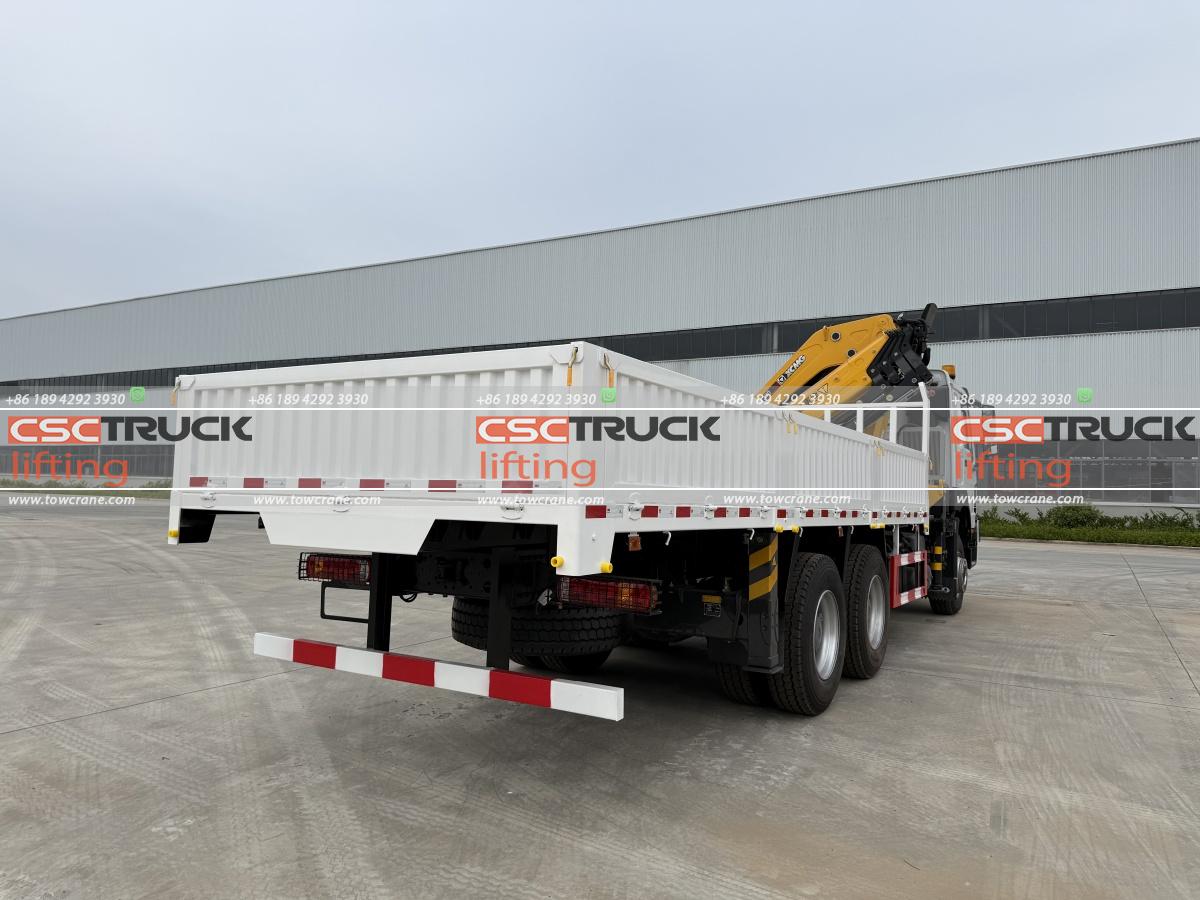

Dropside Cargo Box – Convenient Cargo Loading & Transport

• 6,500 × 2,500 × 600 mm cargo box, providing ample loading space for construction materials and equipment
• 5 mm bottom and 3 mm side panels, offering a durable cargo platform for demanding applications
• All-dropside-opening design, allowing convenient access from different sides for loading and unloading
