BRIEF

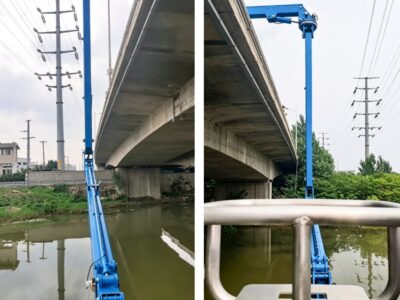

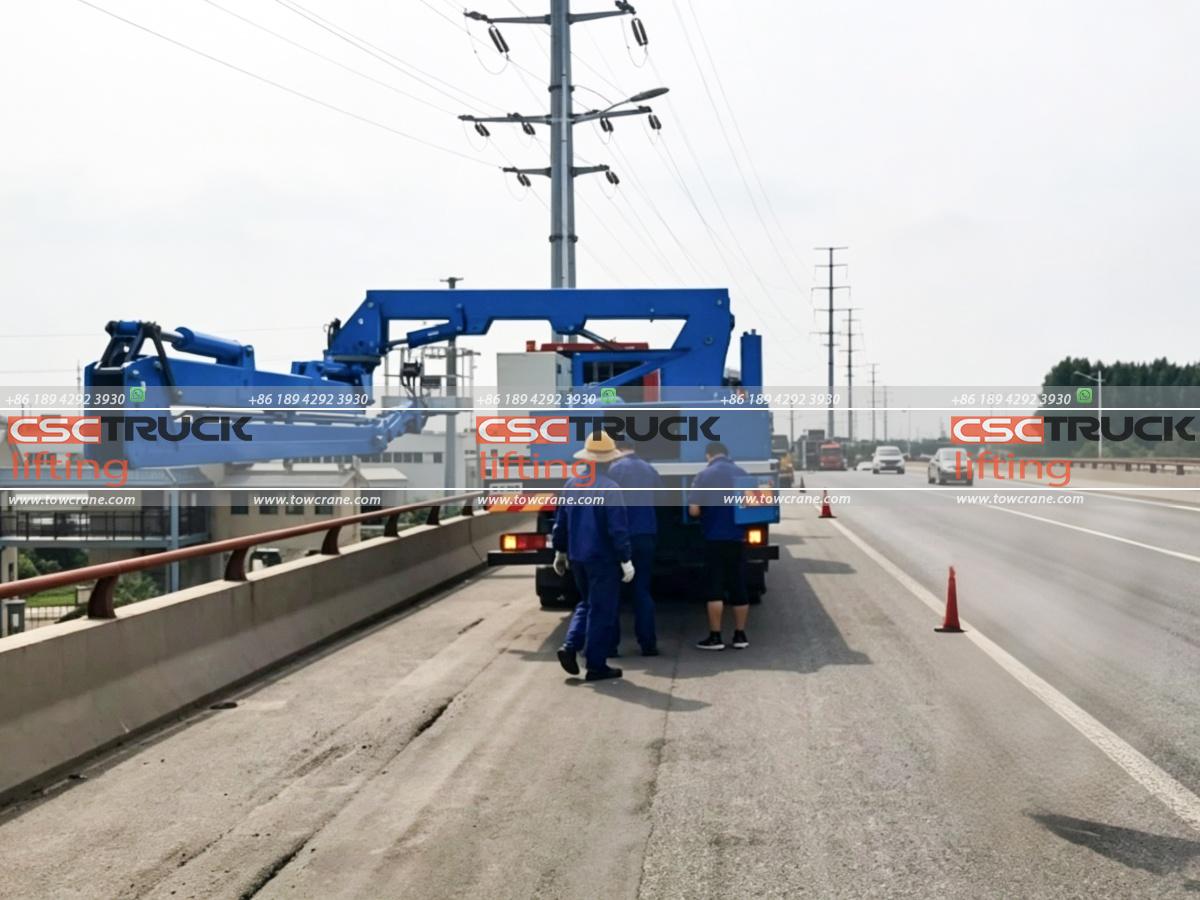

The Volvo 18-Meter Bridge Inspection Unit is a heavy-duty, truck-mounted under-bridge access platform engineered for bridge inspection, maintenance, rehabilitation, and structural repair. Mounted on a Volvo FM450 8×4 chassis, it provides a safe and efficient alternative to conventional scaffolding, suspended platforms, and lane closures, enabling maintenance crews to access bridge soffits, bearings, piers, expansion joints, and other hard-to-reach structural components with minimal disruption to traffic.

Its advanced boom system combines articulated and telescopic sections to deliver an 18-meter horizontal under-bridge reach, 21-meter downward working depth, and 16.2-meter upward reach. A 4.1-meter extendable platform further expands the working envelope, allowing operators to inspect complex bridge geometries, bridge edges, sound barriers, and confined areas from a single vehicle position, significantly reducing setup time while improving inspection efficiency.

As part of the CSCTRUCK Towcrane range of specialized aerial access and lifting equipment, the bridge inspection unit is engineered for demanding infrastructure maintenance projects. It integrates a dual-turntable hydraulic boom, automatic self-leveling aluminum basket, sliding counterweight system, and dual power supply with PTO hydraulic drive and a 12V emergency backup system to ensure smooth, stable, and reliable operation. Backed by CSCTRUCK Towcrane’s expertise in customized truck-mounted equipment, the unit offers a dependable solution for highway bridges, railway bridges, urban overpasses, and other critical infrastructure applications.

FEATRUES

• 18 m Under-Bridge Horizontal Reach – Provides extensive working coverage beneath bridge decks, allowing more inspection work to be completed from a single setup while minimizing traffic disruption.

• 21 m Downward Working Depth – Delivers exceptional access to deep bridge undersides, piers, bearings, and structural supports for comprehensive inspection and maintenance.

• 16.2 m Upward Reach – Enables safe access to parapets, bridge edges, sound barriers, and elevated side structures without additional lifting equipment.

• Dual-Turntable Boom System – Independent hydraulic rotation provides outstanding maneuverability and precise platform positioning, even on complex bridge configurations.

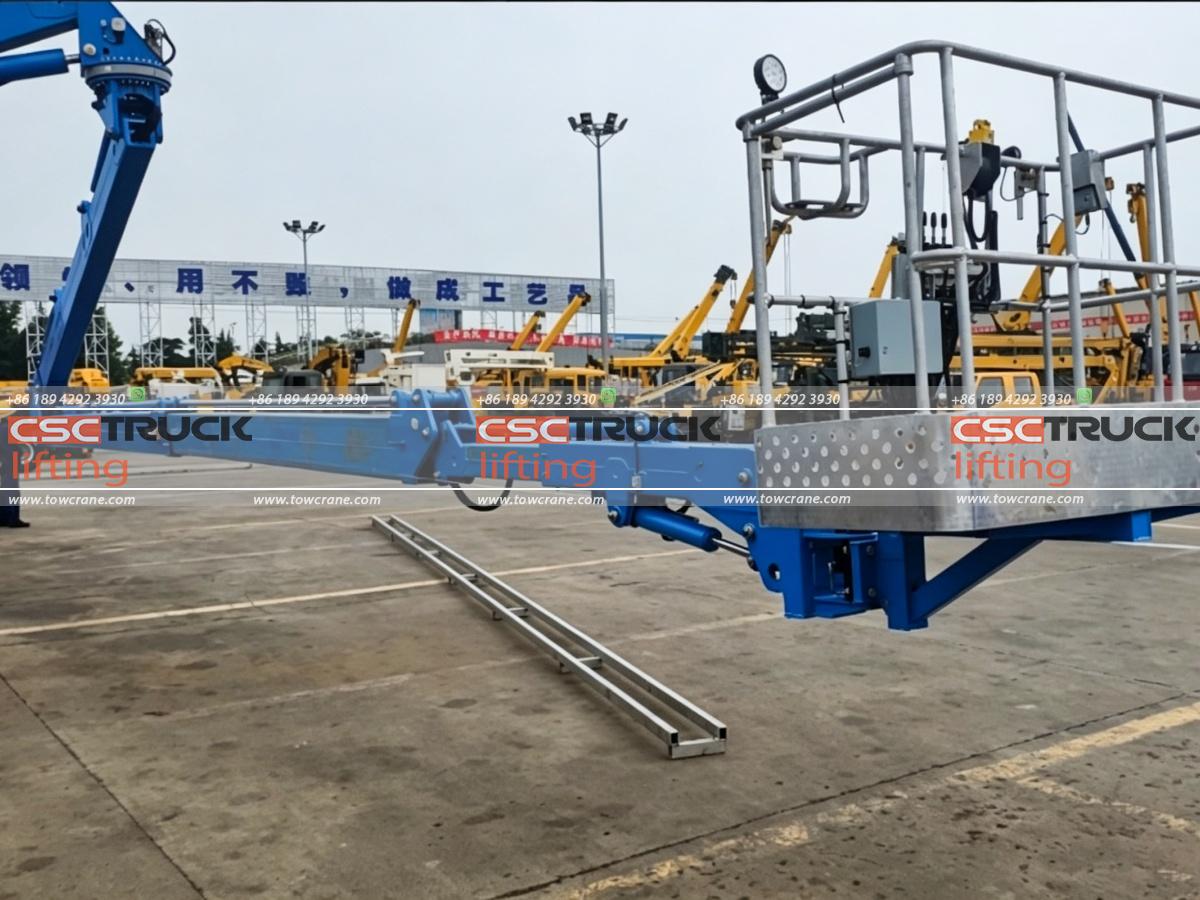

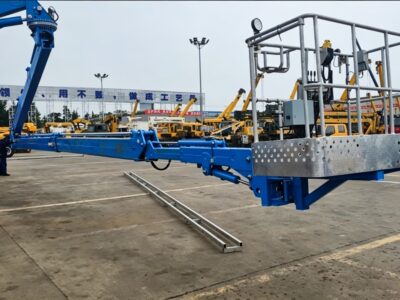

• 4.1 m Extendable Platform – The telescopic platform extension reaches confined and hard-to-access inspection points while reducing the need to reposition the vehicle.

• Sliding Counterweight Technology – Maintains optimal machine stability throughout the working range while keeping the counterweight safely within the vehicle’s overall width.

• Self-Leveling Aluminum Basket – The hydraulic leveling system automatically keeps the platform horizontal, providing a safer and more comfortable working environment for operators.

• 270 kg Platform Capacity – Carries up to 270 kg, accommodating two operators together with inspection tools and maintenance equipment.

• Dual Power Supply – Powered by the truck’s PTO hydraulic system with an integrated 12V emergency backup, ensuring continuous operation even during unexpected power interruptions.

• Intelligent Control & Safety System – Features dual control stations, wireless remote operation, electro-hydraulic proportional controls, pressure monitoring, emergency communication, and multiple safety interlocks for safe, precise, and reliable operation.

SPECIFICATION

Category	Item	Specification
General	Model	CSC5317JQJF6
	Vehicle Type	Truck-Mounted Bridge Inspection Unit
	Application	Bridge Inspection, Maintenance & Repair

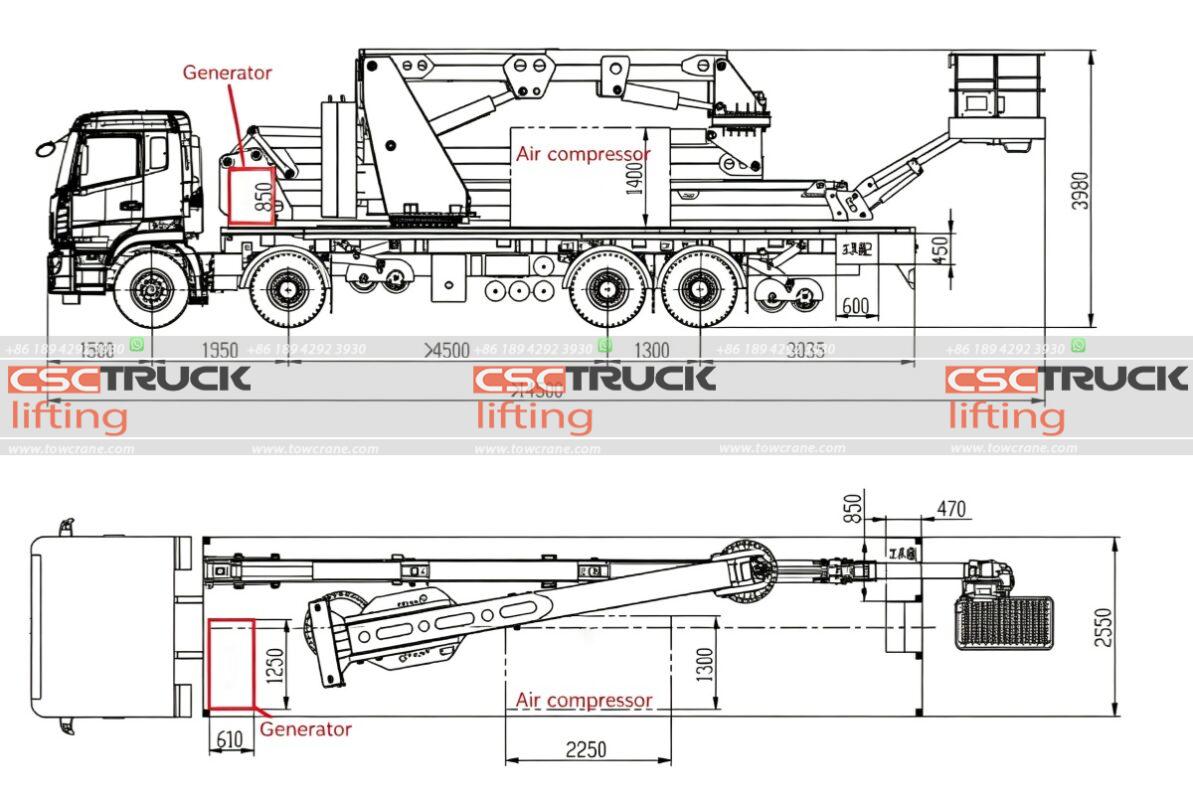

Dimensions & Weight	Overall Dimensions (L × W × H)	13,000 × 2,550 × 3,980 mm
	Curb Weight	31,000 kg
	Cab Capacity	2 Persons
	Wheelbase	1,995 + 4,205 + 1,370 mm

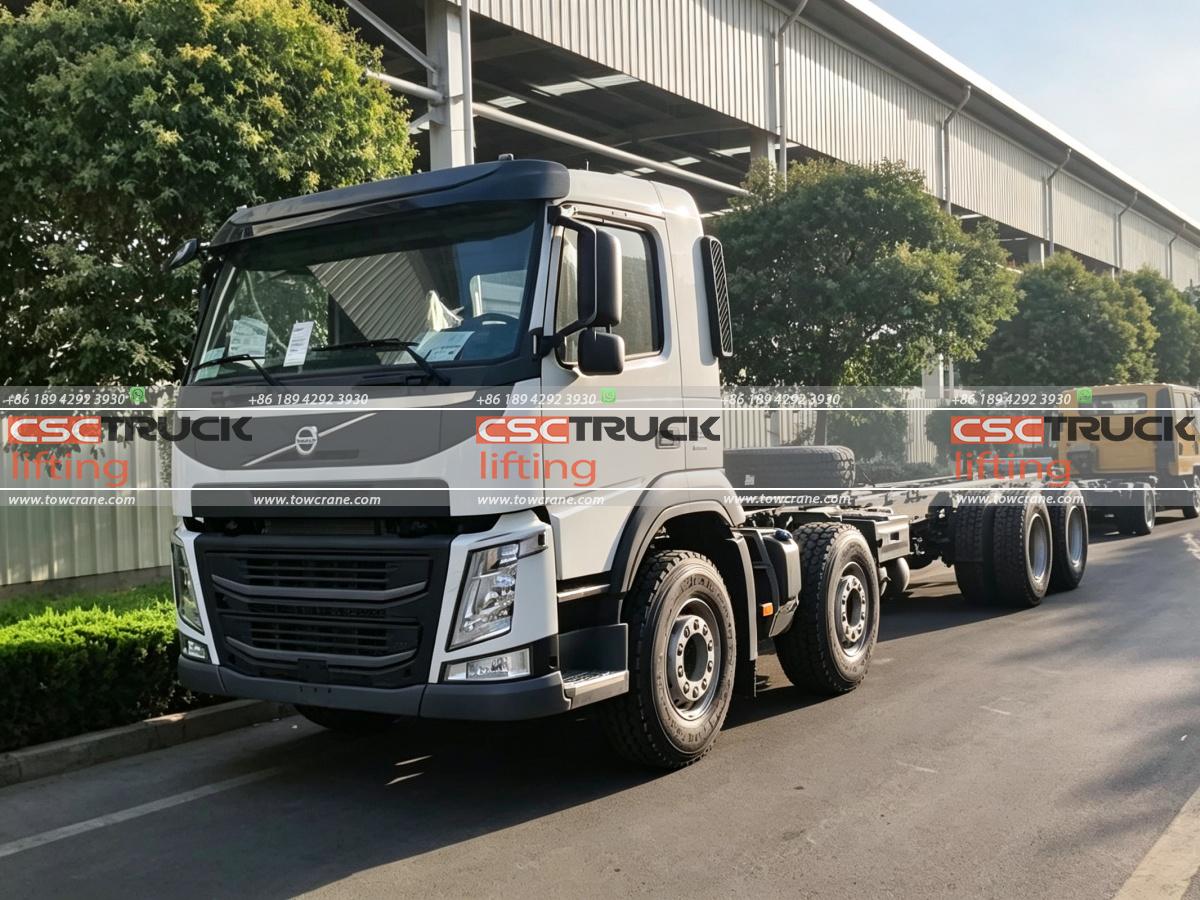

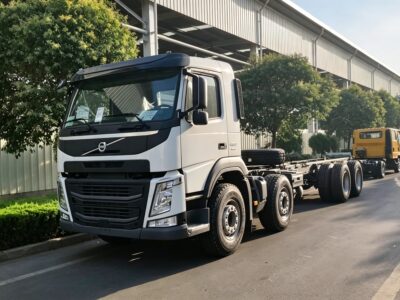

Chassis	Chassis Brand	Volvo
	Chassis Model	FM450
	Drive Mode	8×4
	Steering	Left-Hand Drive
Engine	Engine Model	Volvo D11K450
	Engine Type	6-Cylinder Turbocharged Diesel, Water-Cooled, Intercooled
	Horsepower	450 HP
	Emission Standard	Euro VI
Transmission	Model	Volvo AT2612
	Type	Volvo I-Shift Automatic
	Gears	12 Forward + 4 Reverse
Axles & Brakes	Axle Capacity	Front 2 × 8 t / Rear 2 × 13 t
	Brake System	Dual-Circuit Air Brakes with ABS
	Tires	385/65R22.5 (Front), 315/80R22.5 (Rear)
Working Performance	Horizontal Outreach	18.0 m
	Vertical Reach (Down)	21.0 m
	Vertical Reach (Up)	16.2 m
	Working Depth Below Bridge	8.5 m
	Horizontal Under-Bridge Reach	7.28 m
	Platform Extension	4.1 m
	Basket Dimensions	1,500 × 1,000 × 1,000 mm
	Basket Capacity	270 kg
	Basket Rotation	Hydraulic 180° Rotation
Boom System	Boom Configuration	Four-Section Telescopic & Articulating Boom
	Turntable Rotation	First: ±90° / Second: 0–180°
	Counterweight	Sliding Counterweight System
Hydraulic & Control	Hydraulic Pump	CASSAPA (Italy)
	Power Source	Truck PTO + 12V Emergency Backup
	Control System	Ground Controls, Platform Controls & Wireless Remote
	Communication	Wired & Wireless Intercom
Safety Features	Platform Leveling	Automatic Hydraulic Self-Leveling
	Safety Systems	Stability Monitoring, Pressure Protection, Emergency Stop, Hydraulic Safety Valves

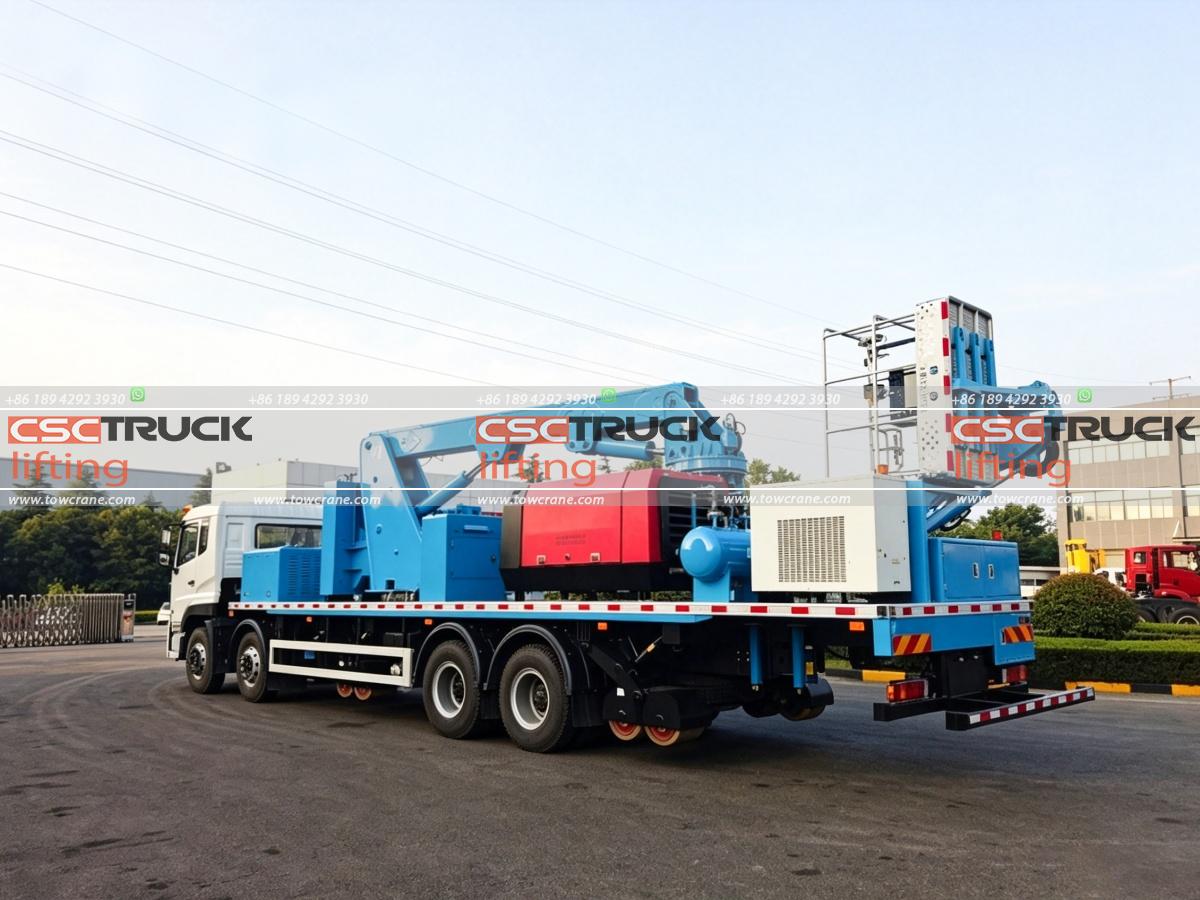

Air Compressor	Manufacturer	OSG
	Working Pressure	188.5 PSI
	Air Flow	200 CFM
	Air Tank Capacity	0.15 m³
