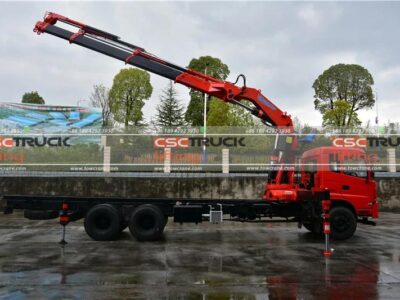

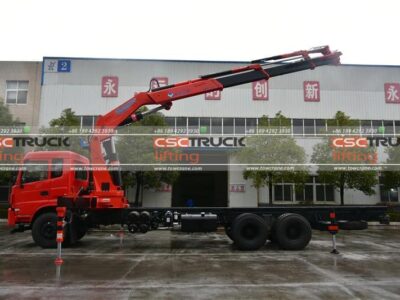

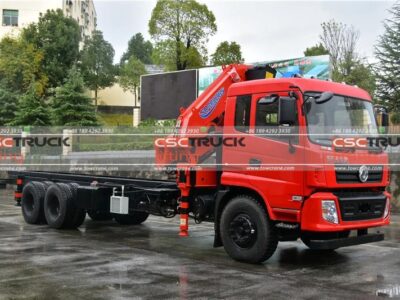

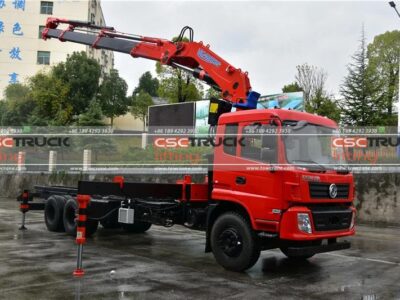

DONGFENG Chassis 20 Ton Knuckle Boom Hydraulic Crane Truck

PARAMETER SPECIFICATION
Crane Model SQ400ZB5 / Knuckle Crane 20-ton at 2m
Max Lifting Moment 400 Kn.m
Max Lifting Capacity – 12,000 kg at 3.0m
– 6,300 kg at 6.15m
– 3,600 kg at 9.75m
– 2,300 kg at 13.3m
Max Lifting Height 15.7m
Max Working Radius 13.3m
Boom Section 5 stages
Rotation Angle 360° All Rotation
Rated Working Pressure 28 MPa
Oil Tank Capacity 200L
Related Oil Flow 64 L/min
Outrigger Span 2,330 – 7,100 mm
