BRIEF

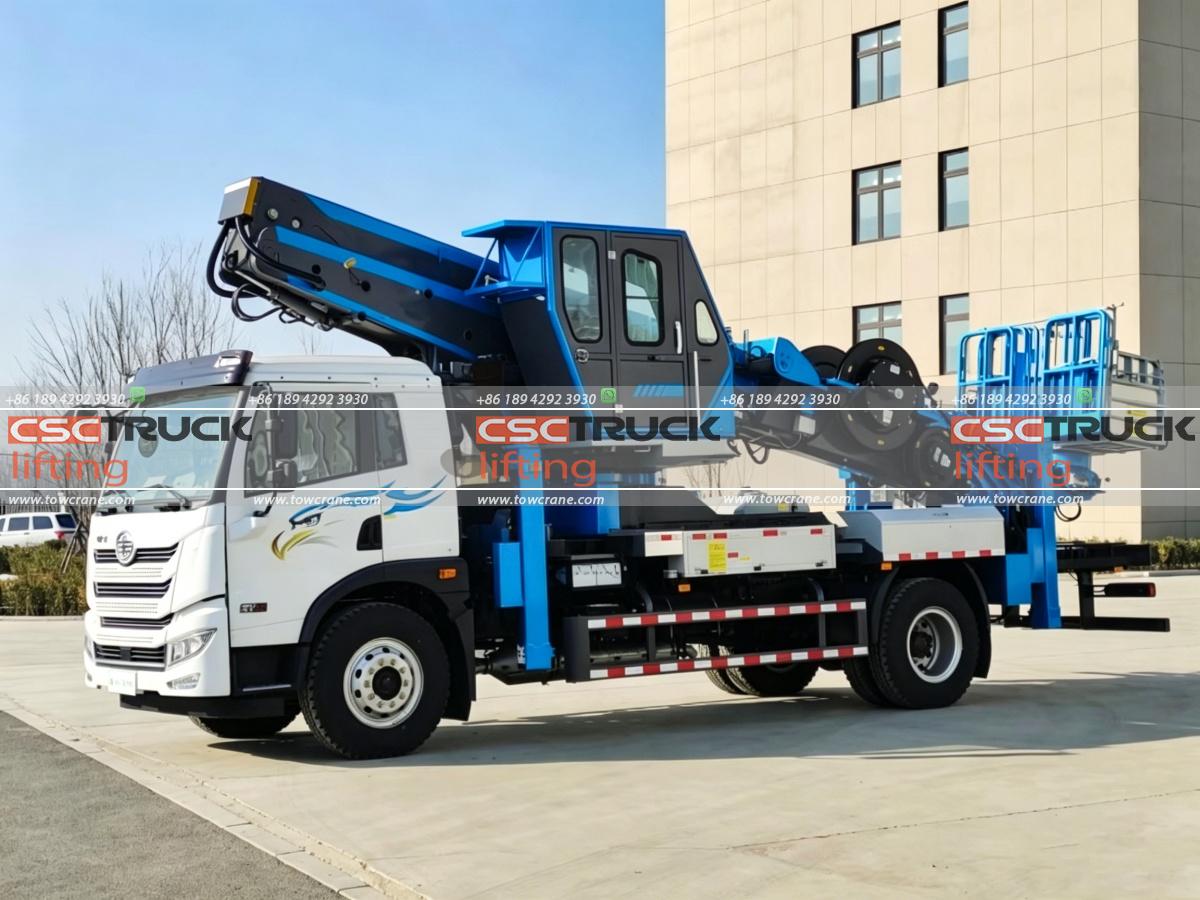

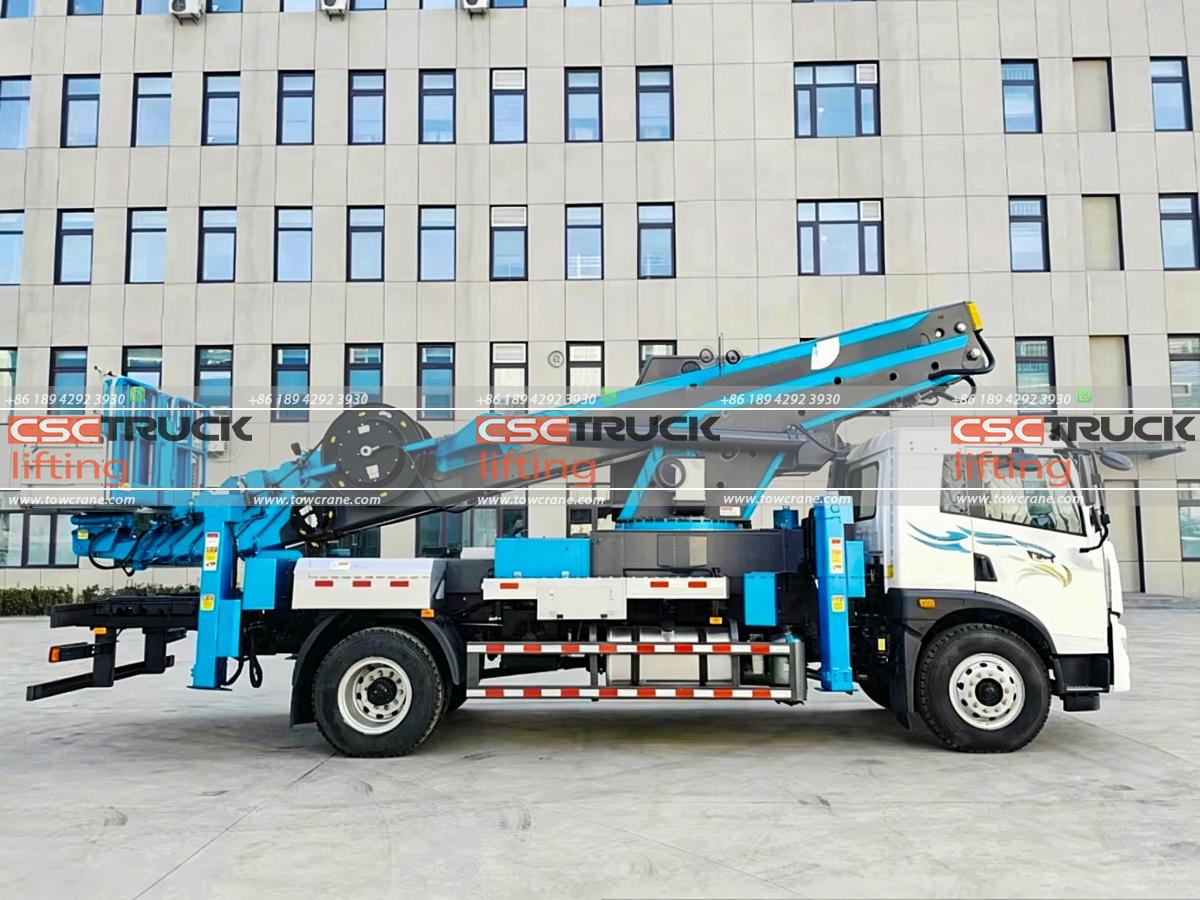

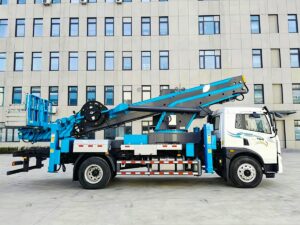

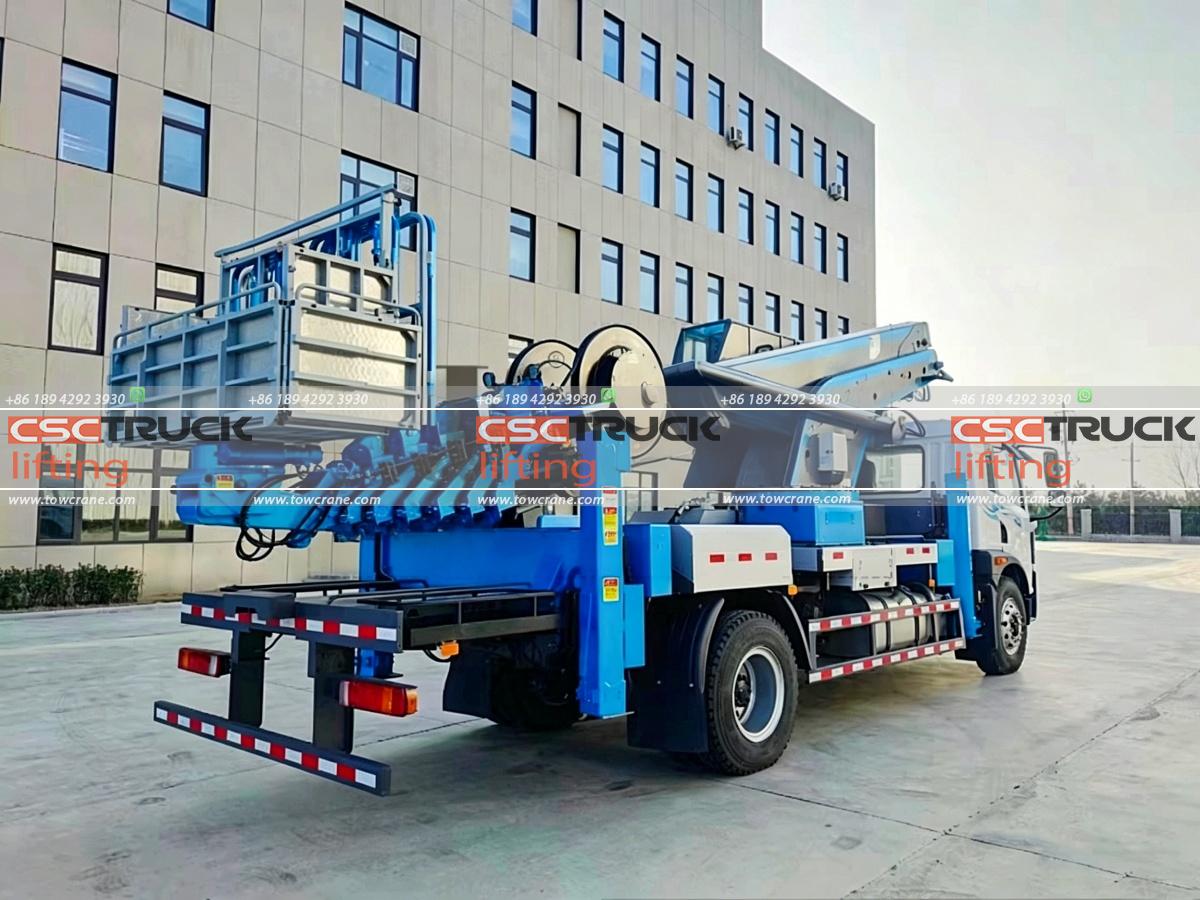

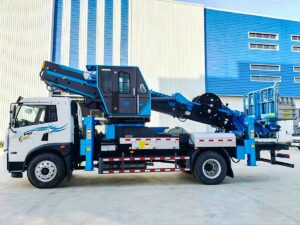

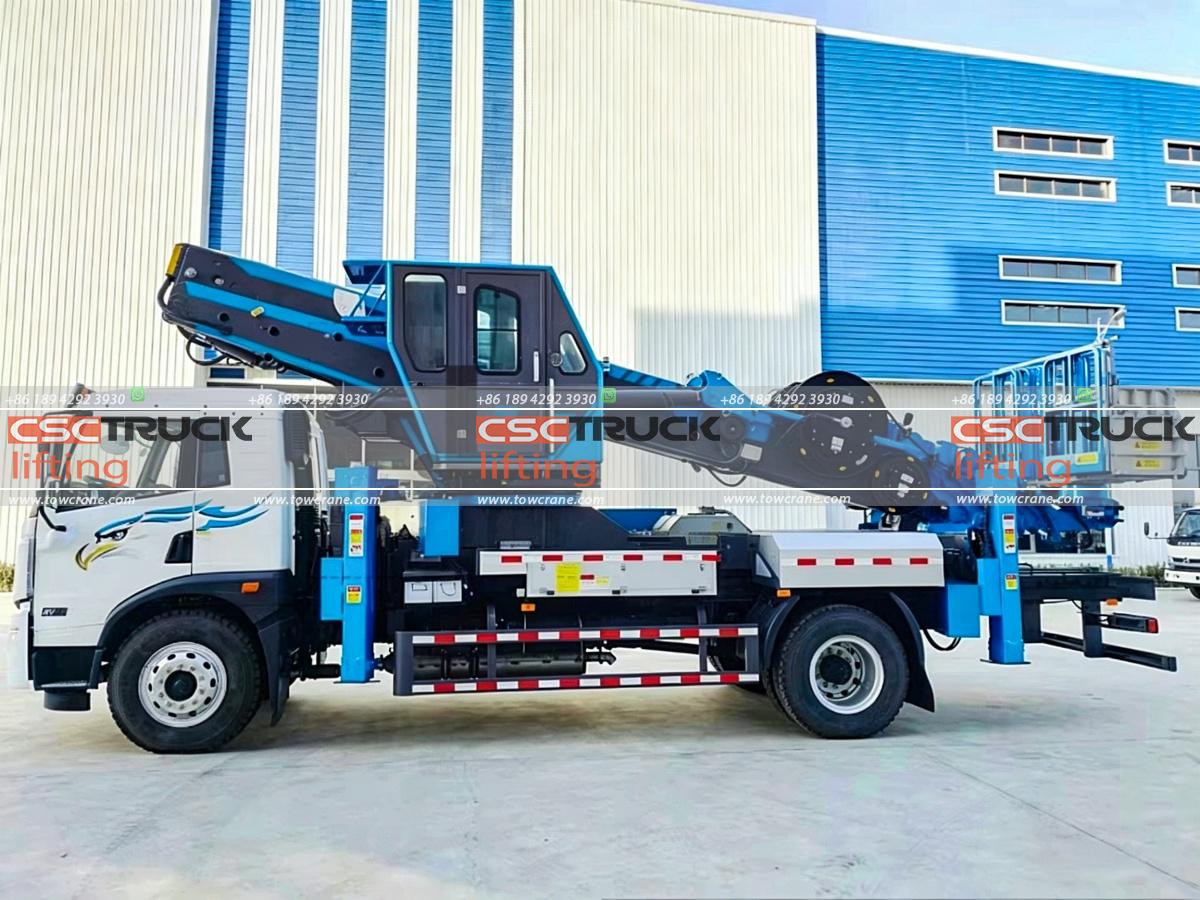

The FAW 45-Meter Telescopic Aerial Lift Truck is a high-reach truck-mounted aerial work platform engineered for demanding applications in construction, infrastructure maintenance, utility services, and emergency rescue. Built on a reliable FAW 4×2 chassis, it combines an impressive 45.2-meter maximum working height with a 28-meter working radius, delivering outstanding reach while maintaining excellent maneuverability. Constructed from high-strength steel, the boom and outriggers provide exceptional rigidity with reduced weight, lowering the vehicle’s center of gravity for improved driving stability, smoother boom operation, and greater hydraulic efficiency. Its superior working envelope makes it ideal for servicing high-rise buildings, bridges, transmission towers, and large industrial facilities.

Powered by the FAW CA4DK1-22E61 Euro VI diesel engine, the truck delivers 165 kW (220 HP) of reliable power and reaches a maximum road speed of 90 km/h, enabling efficient travel between job sites. The robust chassis features a 4,900 mm wheelbase, 215 mm ground clearance, and optimized approach and departure angles, ensuring stable performance on both urban roads and rough construction sites. Combined with 10.00R20 tires and a well-balanced suspension layout, the vehicle offers excellent driving comfort and operational stability under demanding working conditions.

Its fully hydraulic telescopic boom system ensures fast, smooth, and precise extension, while the large-span X-type outriggers provide exceptional stability during high-altitude operations, even at maximum outreach. The 400 kg work platform comfortably accommodates two operators and their tools, and features hydraulic self-leveling, 360° continuous rotation, and an onboard 220V power supply for electric equipment. To maximize operational safety, the truck is equipped with a comprehensive suite of protection systems, including CAN-bus intelligent controls, interlock protection, emergency stop, and anti-drop hydraulic valves. Combining outstanding working height, precise control, and advanced safety technologies, this telescopic aerial lift truck is an ideal solution for professional municipal maintenance, power utility work, telecommunications, and industrial aerial operations.

FEARURES

Chassis & Mobility – Built for Urban and Off‑Road Travel

• FAW 4×2 rugged chassis – Provides stable road handling with a 4,900 mm wheelbase, ensuring the truck remains balanced during highway travel and static aerial operations.
• Powerful and clean engine – The CA4DK1‑22E61 diesel engine (162 kW/220 HP) meets China National VI standards, offering low emissions, good fuel economy, and reliable power for both driving and hydraulic pumping.
• Excellent off‑road clearance – With 215 mm ground clearance and 21° approach/13° departure angles, the truck can access construction sites, gravel roads, and uneven terrain without bottoming out.
• Compact overhang design – Front overhang of 1,335 mm and rear overhang of 2,530 mm allow the vehicle to manoeuvre in tight urban alleys and confined job sites.
• Large 10.00R20 tyres – Provide strong load‑carrying capacity and traction on soft or slippery surfaces, ensuring stable positioning during outrigger deployment.

Boom System – High Reach with Smooth Precision

• Fully telescopic boom with chain drive – Hydraulic cylinders drive chains for synchronous extension and retraction, delivering rapid, smooth, and reliable boom movement without jerking.
• 45.2‑metre maximum working height – Reaches the top of 15‑storey buildings, transmission towers, bridges, and industrial chimneys – one of the tallest truck‑mounted platforms in its class.
• 28‑metre maximum working radius – Covers wide horizontal areas, allowing operators to access distant points without repositioning the truck – ideal for bridge under‑span work and wide‑span building facades.
• 32‑metre working height at maximum radius – Maintains useful height even when fully extended horizontally, ensuring operators can reach both far and high simultaneously.
• High‑strength steel boom construction – Reduces overall weight while maximising structural strength and fatigue resistance, extending the service life of the boom under repeated cycles.

Outrigger System – Unmatched Stability

• X‑X type double‑stage outriggers – Front and rear X‑shaped outriggers provide superior stability compared to traditional H‑type, distributing the truck’s weight evenly during high‑reach and side‑reach operations.
• Large longitudinal span (6,687 mm) – Prevents forward or rearward tipping when the boom is extended at low angles.
• Large transverse span (7,890 mm) – Delivers excellent lateral stability, allowing full 28‑metre radius work with minimal outrigger pad sinking.
• Individual or simultaneous control – Each outrigger can be operated independently or together, enabling quick setup on uneven ground.
• Hydraulic check valves on outriggers – Prevent accidental retraction even if hydraulic pressure drops, ensuring the truck remains firmly planted during operation.

Bucket – Spacious and Tool‑Ready

• 400 kg platform rated load – Accommodates two workers with tools and materials – enough for heavy maintenance, welding, and installation tasks.
• Static hydraulic self‑levelling – Keeps the platform floor horizontal at all boom angles, ensuring operator comfort and safety.
• 360° hydraulic rotation – Rotates continuously to position the platform precisely without repositioning the truck – especially useful for building facades and circular structures.
• Dual‑reduction slewing mechanism – Provides smooth, backlash‑free rotation with precise positioning control.
• 220V power interface with 8 kW converter – Powers electric tools (drills, grinders, welders, lighting) directly from the platform, eliminating the need for long extension cords or generators.
• Revolving speed ≥60 s/r – Controlled rotation speed for safe, smooth positioning without sudden movements.

Safety Systems – Comprehensive Protection

• Hydraulic check valves on all cylinders – Prevent boom or outrigger drift if hydraulic lines fail, locking the load in place.
• Upper‑lower interlock system – Automatically disables boom movement if outriggers are not properly set, preventing unsafe operation.
• Emergency stop button – Instantly halts all hydraulic functions in case of an emergency.
• Hose burst protection valves – Prevent uncontrolled boom drop if a hydraulic hose ruptures.
• Emergency manual operation system – Allows boom retraction and platform lowering even if the engine or main hydraulic pump fails.
• Load and tilt angle safety curves – Continuously monitors boom angle and platform load, triggering alarms and limiting operation if unsafe conditions are detected.
• 360° boom rotation safety verification – The boom has undergone rigorous 360° rotation testing at rated loads, ensuring structural integrity at all angles.
• Overload alarm system – Warns the operator and automatically restricts further extension if platform load exceeds 400 kg.
• Fail‑safe design – Even if the operator makes a mistake, the control system prevents unsafe manoeuvres, protecting both personnel and equipment.

Control & Intelligence – User‑Friendly and Precise

• Advanced CAN‑bus electronic control system – Continuously monitors boom length, elevation angle, platform height, and working height in real time.
• Automatic amplitude limiting – The controller automatically restricts boom movement when reaching safe operating boundaries, preventing over‑extension or over‑tilting.
• Remote engine start/stop and throttle control – Allows the operator to control the engine from the platform or ground, saving fuel by avoiding unnecessary idling.
• Quick acceleration and deceleration – Reduces hydraulic shock during boom movements, improving both comfort and component longevity.
• Imported load‑sensing proportional valves – Provide precise, smooth hydraulic flow control, reducing energy waste and heat generation.
• Left‑hand drive cab (flat‑top single row) – Seats 3 people with good forward visibility; the cab design integrates well with the aerial control system for ground‑level operations.

Durability & Versatility – Built for Hard Use

• High‑strength steel welded construction – The boom and outriggers are fabricated using high‑grade steel with precision welding, ensuring consistent strength and fatigue resistance.
• High‑strength steel for structural integrity – Provides an excellent strength‑to‑weight ratio, improving structural rigidity and fatigue resistance while enhancing overall vehicle stability and hydraulic efficiency.
• Quick setup and stow – Rapid outrigger deployment and boom extension minimise job‑site preparation time, increasing daily productivity.
• Multi‑industry application – Designed for construction, municipal utilities, streetlight maintenance, telecommunications, landscaping, shipbuilding, bridge painting, pipeline installation, advertising sign erection, warehouse logistics, and emergency rescue.
• Robust corrosion protection – Boom and outrigger surfaces are treated with durable anti‑corrosion coatings, suitable for coastal and high‑humidity environments.
