BRIEF

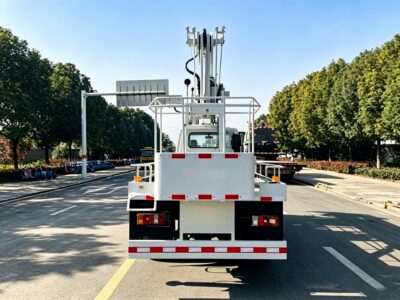

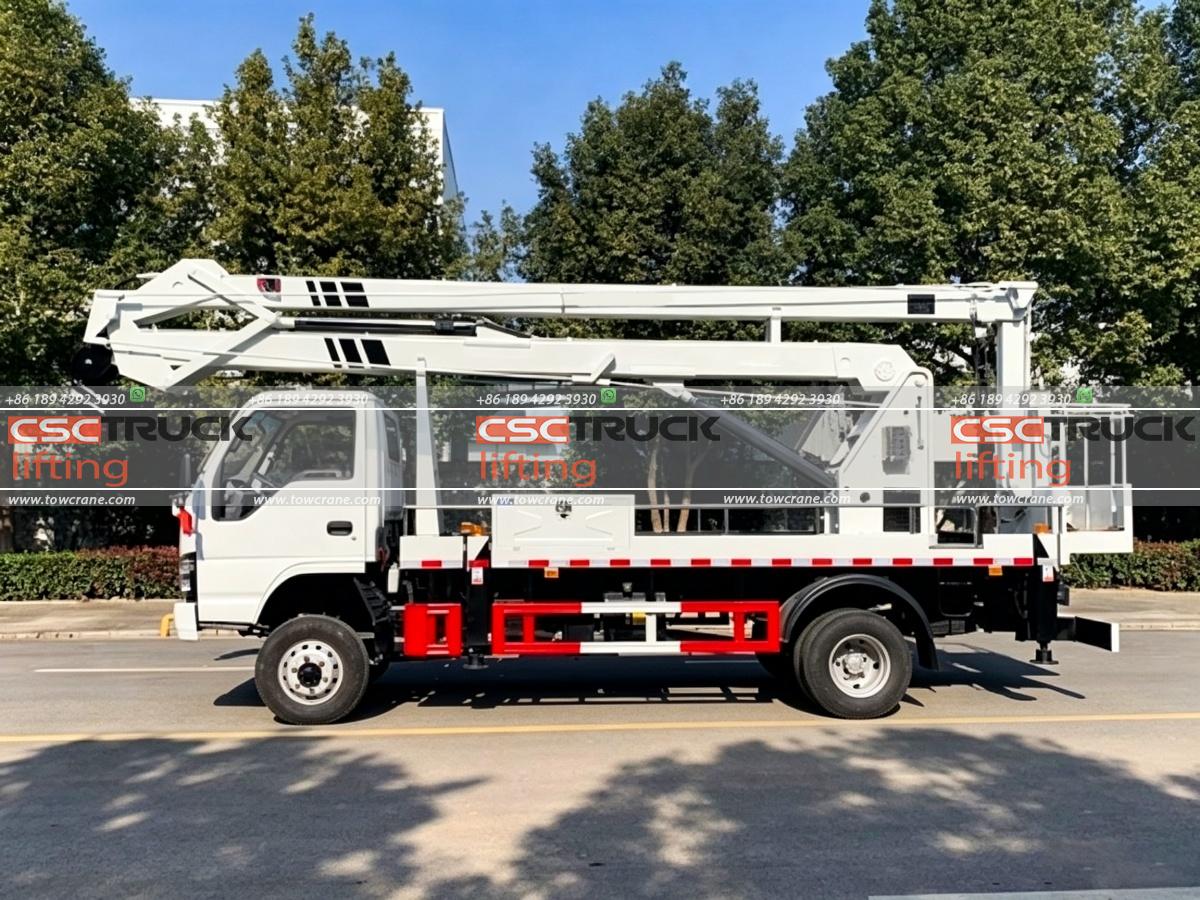

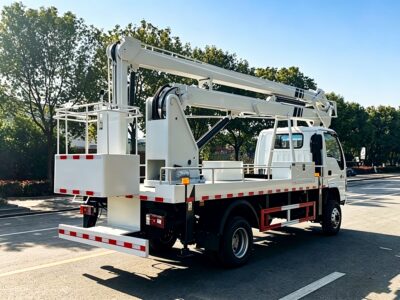

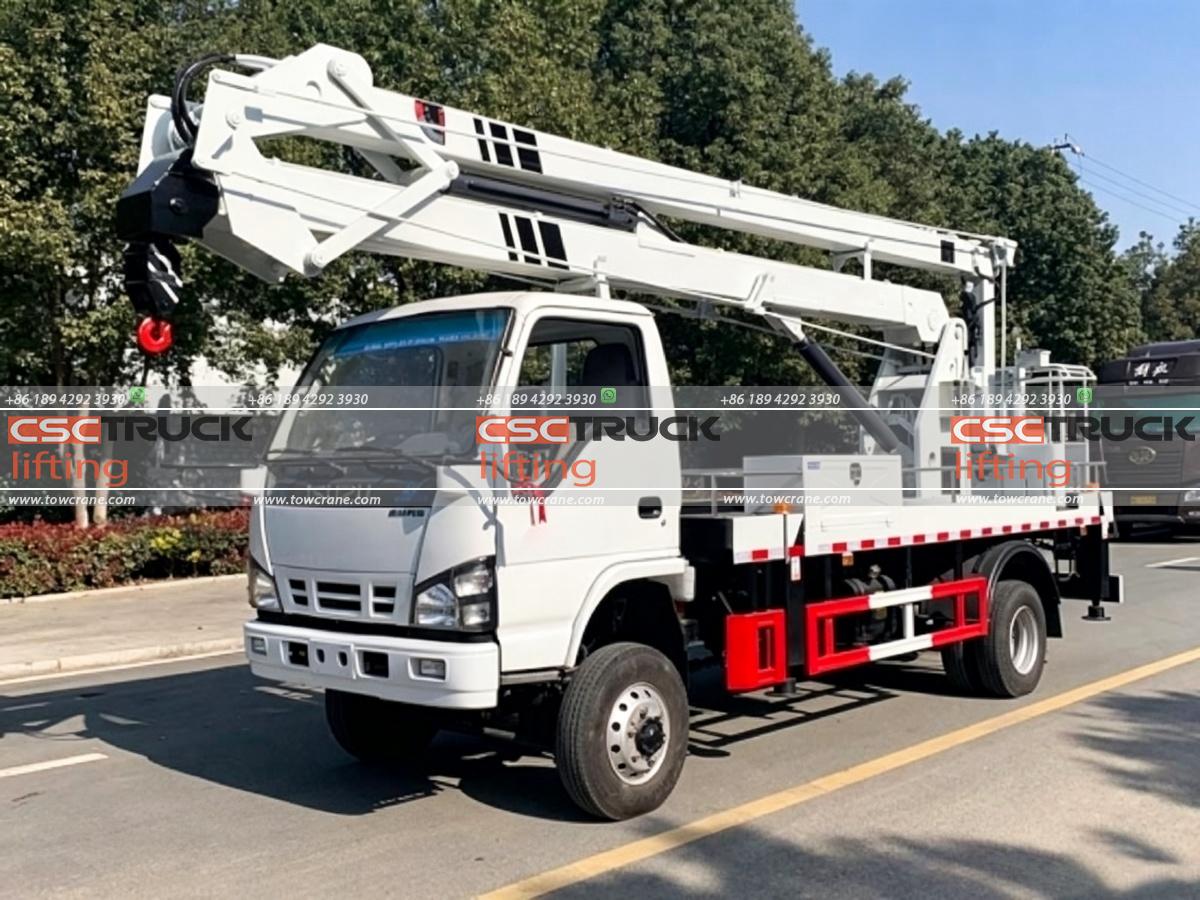

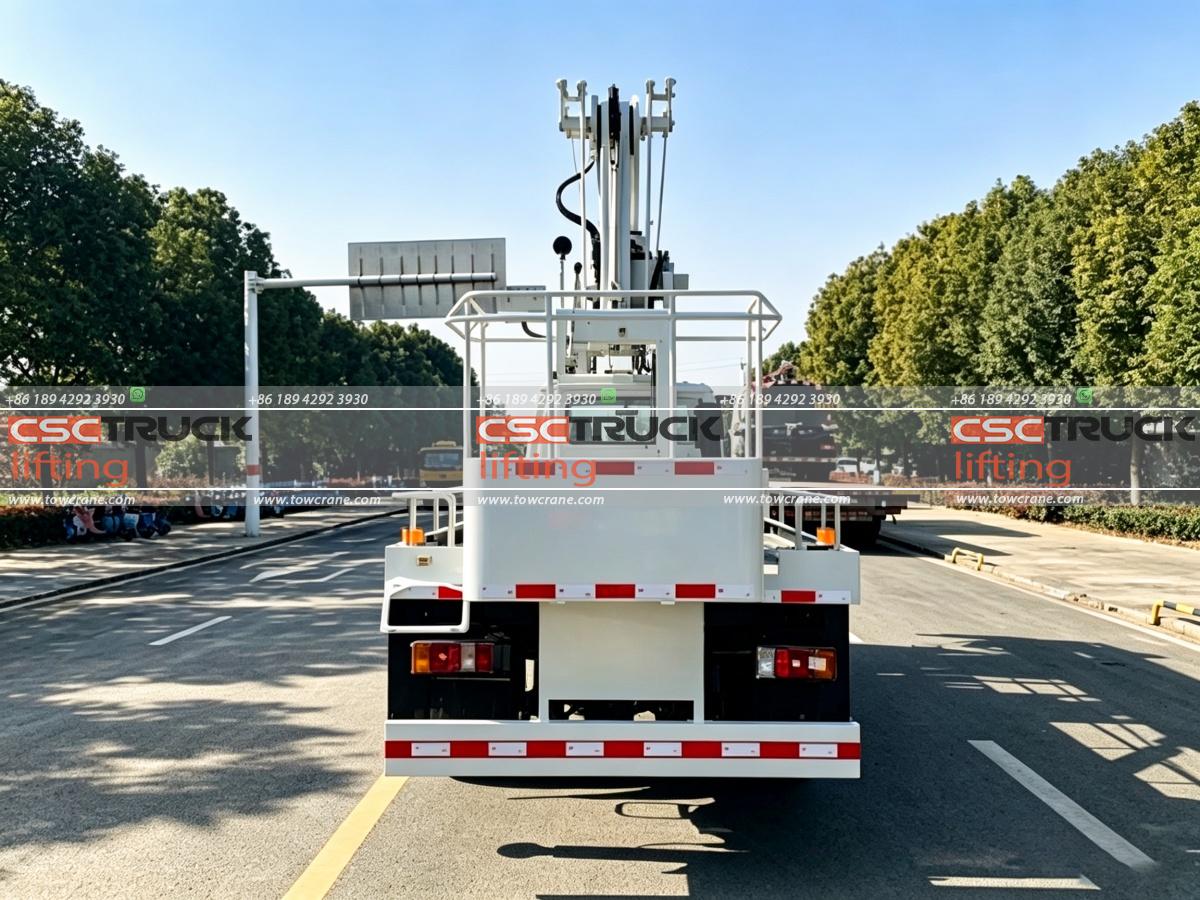

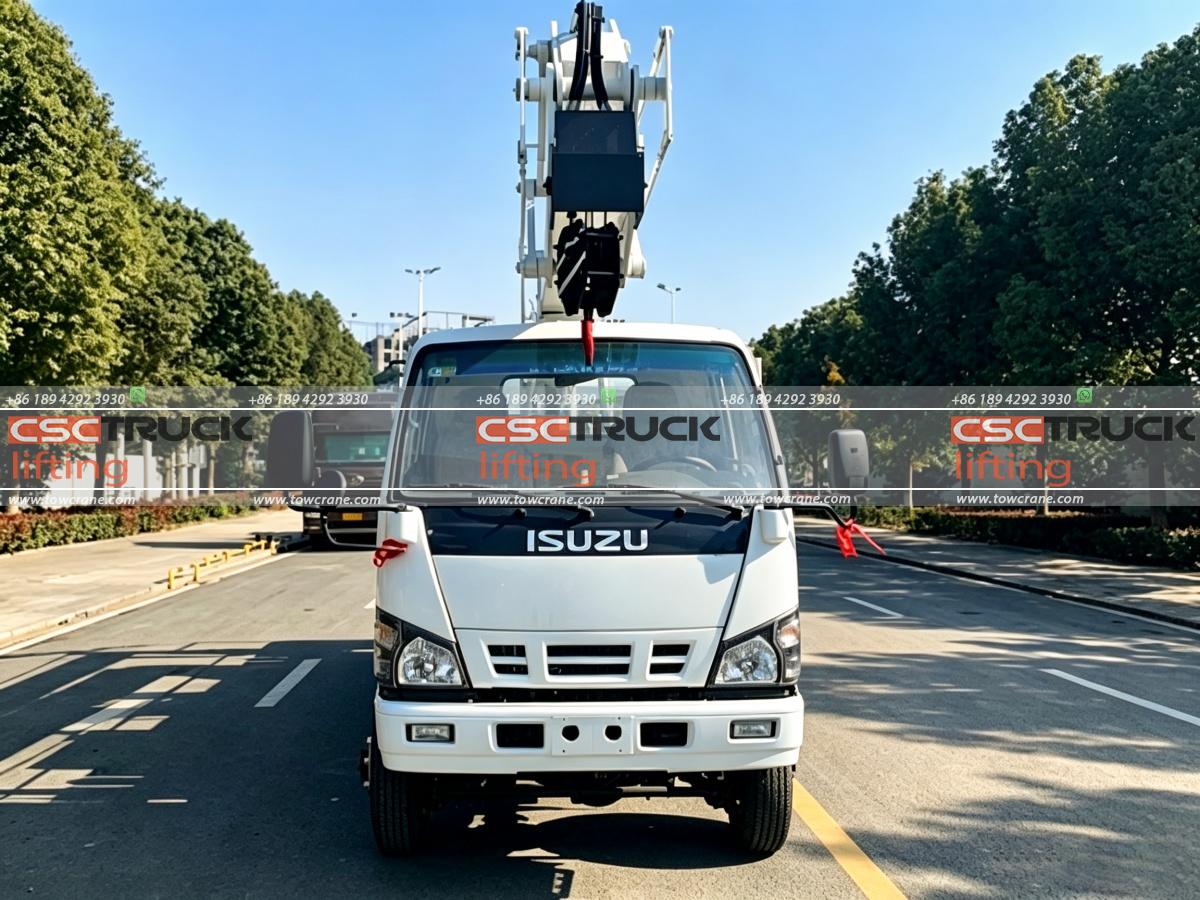

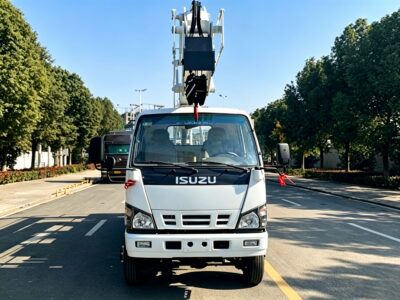

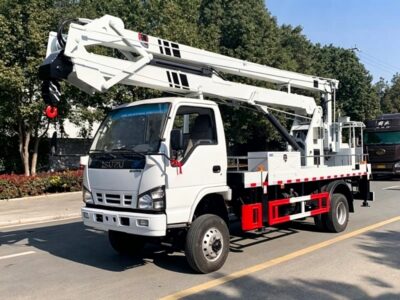

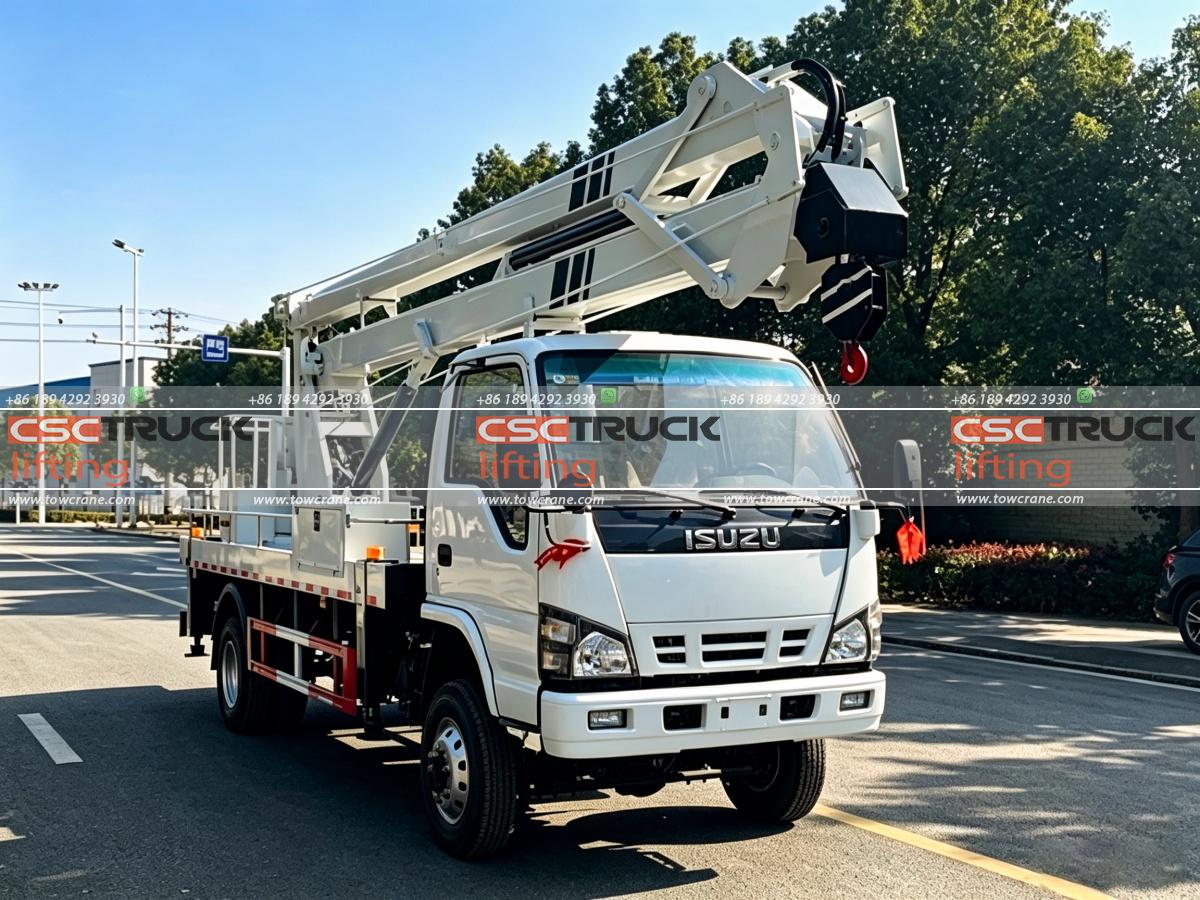

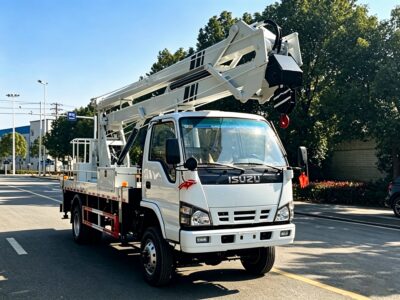

The ISUZU 4×4 18-Meter Articulated Aerial Lift Truck is a compact and versatile aerial work platform designed for urban maintenance, utility servicing, street lighting repair, tree trimming, and building facade operations. Built on the reliable ISUZU 600P 4×4 chassis, it combines excellent maneuverability with a two-section articulated boom system, providing flexible access to elevated working areas. With a maximum working height of 18 meters and a working radius of 9 meters, this truck delivers efficient vertical and horizontal reach while maintaining a compact footprint, making it ideal for narrow streets and confined job sites.

Powered by the ISUZU 4KH1CN5HS diesel engine, this aerial lift truck delivers 130 HP and 220 N·m of torque, ensuring reliable power for continuous high-altitude operations. The MSB 5-speed manual transmission provides smooth shifting and precise vehicle control. The two-section articulated boom features 360° continuous rotation, allowing operators to position the platform efficiently around obstacles without moving the truck. Equipped with dual control modes, including bucket-mounted controls and manual ground operation, the system provides accurate and flexible handling. The 200 kg rated bucket capacity supports two workers with tools, while four hydraulic outriggers ensure a stable and secure working platform.

Built on the proven ISUZU 600P chassis with a 3815 mm wheelbase, 2.5-ton front axle, and 4.8-ton rear axle, the truck is engineered for durability, reliability, and easy maintenance in demanding working environments. Its compact 6400 mm overall length and 700R16 tyres provide excellent mobility in urban areas, while the Euro V emission standard helps meet modern environmental requirements. Combining a practical boom design, dependable chassis performance, and efficient operation, this Articulated Aerial Lift Truck is an ideal solution for municipalities, utility companies, and construction contractors requiring safe and efficient elevated work capabilities.

FEATURES

Chassis & Powertrain – Reliable Performance for Urban Operations

• ISUZU 600P single-row cab equipped with air conditioning and USB radio for improved operator comfort during extended working hours.
• ISUZU 4KH1CN5HS diesel engine delivering 130 HP and 220 N·m of torque for reliable power output and efficient operation.
• Euro V emission standard reduces environmental impact and meets strict urban emission requirements.
• MSB 5-speed manual transmission provides smooth shifting and precise vehicle control.
• 2.5T front axle and 4.8T rear axle ensure balanced load distribution and stable driving performance.
• 700R16 tyres provide reliable traction and durability for city and suburban roads.
• 6400 mm compact overall length improves maneuverability in narrow streets and congested working areas.
• Oil brake system with spring energy parking brake ensures safe and dependable braking performance.

Articulated Boom System – Flexible Reach and Precise Positioning

• 18-meter maximum working height enables access to streetlights, overhead cables, building facades, and elevated maintenance points.
• 9-meter maximum working radius provides excellent horizontal outreach for working around obstacles.
• Two-section articulated folding boom offers flexible movement while maintaining a compact design during transportation.
• 360° continuous boom rotation allows operators to work around the vehicle without frequent repositioning.
• 200 kg rated bucket capacity supports two operators with necessary tools and equipment.
• 1300 × 1000 × 1000 mm bucket dimensions provide a comfortable and practical working space.
• Dual control modes include platform-mounted operation and manual ground controls for greater flexibility.
• 0–2 r/min rotation speed ensures smooth and accurate boom positioning.

Stability & Safety – Secure Elevated Operations

• Four hydraulic outriggers provide a stable support platform during aerial operations.
• 3500 mm horizontal outrigger span improves stability throughout the working range.
• 4000 mm longitudinal support span enhances safety when operating on uneven surfaces.
• Manual outrigger control system provides simple operation and reliable deployment.
• Hydraulic power-assisted steering reduces driver fatigue and improves vehicle maneuverability during positioning.
