BRIEF

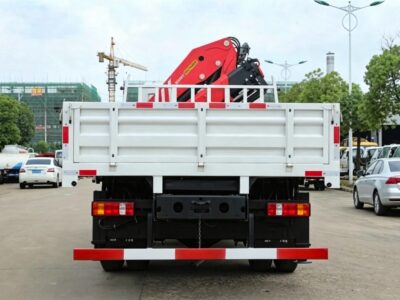

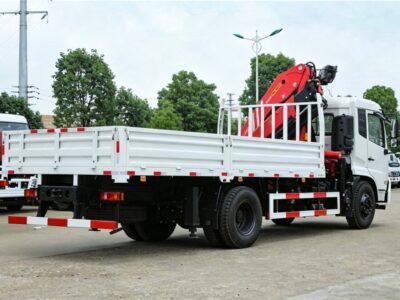

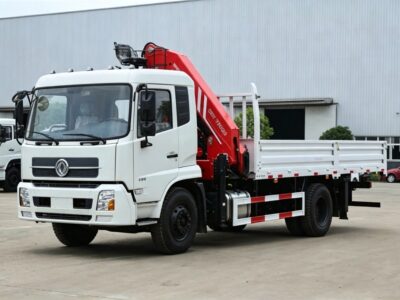

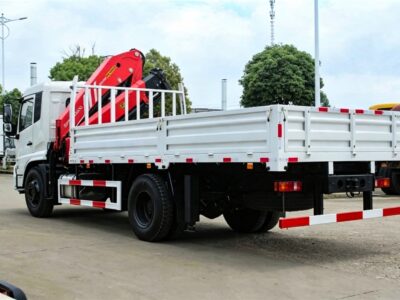

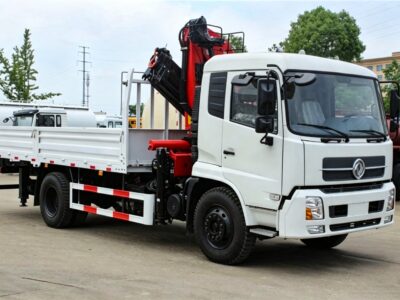

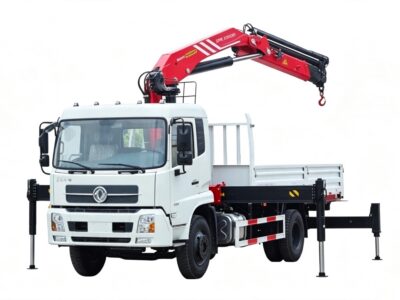

The DONGFENG 10T PALFINGER Knuckle Boom Crane is a versatile self-loading transport solution that combines a robust DONGFENG 4×2 chassis, a PALFINGER SPK 23500 knuckle boom crane, and a heavy-duty cargo box. Designed for construction, logistics, steel fabrication, infrastructure projects, and industrial material handling, it integrates lifting and transportation into one vehicle. The crane handles loading and unloading, while the cargo box carries materials such as steel beams, pipes, machinery, and palletized goods, reducing the need for separate lifting equipment on the job site.

Powered by a WEICHAI 270 HP diesel engine and paired with a FAST 8-speed manual transmission, the truck provides reliable power for both road transportation and crane operations. The PALFINGER SPK 23500 knuckle boom crane delivers a maximum lifting capacity of 10,000 kg and 360° rotation, allowing flexible load positioning from different sides of the truck. With a crane weight of approximately 2,506 kg, a 7,600 × 2,300 × 600 mm cargo box, a 5,000 mm wheelbase, and a 16,000 kg GVW, the vehicle is configured to balance lifting capability, cargo capacity, and road stability.

The combination of a PALFINGER knuckle boom crane and DONGFENG chassis makes this truck well suited to operations where mobility, lifting flexibility, and efficient material handling are equally important. The articulated boom can fold into a compact configuration and provides greater maneuverability when working around buildings, equipment, and other obstacles. Meanwhile, 360° crane rotation allows operators to handle loads from multiple working positions without constantly repositioning the truck. With dependable DONGFENG running gear, WEICHAI power, and proven PALFINGER lifting technology, this truck-mounted crane provides an integrated solution for contractors, logistics companies, and industrial operators looking to simplify heavy-load transportation and on-site handling.

FEATURES

1. 10-Ton PALFINGER Knuckle Boom Crane

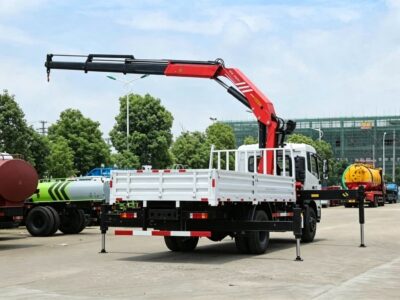

The truck is equipped with a PALFINGER SPK 23500 10-ton knuckle boom crane, offering a maximum lifting capacity of 10,000 kg. Its articulated boom design provides greater flexibility when loading and unloading materials in confined or uneven working areas.

2. 360° Crane Rotation

With 360° all-around rotation, the crane can access multiple working positions around the truck. This helps improve loading and unloading efficiency and reduces the need to reposition the vehicle frequently.

3. DONGFENG 4×2 Chassis

The DONGFENG 4×2 chassis features a 4,500 mm wheelbase and a maximum speed of 90 km/h, providing a practical balance between road mobility, stability, and payload capacity for regional transportation and job-site operations.

4. Powerful WEICHAI Diesel Engine

A WEICHAI 270 HP (198 kW) diesel engine with 5,900 ml displacement delivers strong power for both transportation and crane operations. The vehicle is available with Euro 3 or Euro 4 emission standards according to the target market.

5. Large Cargo Platform

The truck features a 5,500 × 2,300 × 600 mm cargo box, providing sufficient space for transporting construction materials, machinery, steel products, pipes, and other heavy goods while the crane handles loading and unloading.

6. Driver-Oriented Configuration

The cab accommodates 2 passengers and is equipped with a heating and cooling air conditioner, helping provide a more comfortable working environment during long-distance transportation and field operations.

7. Flexible Configuration Options

The crane truck can be customized with optional equipment such as a hydraulic tipping box, remote control box, and reinforced box construction. The box thickness can also be adjusted according to specific operating requirements.

8. Integrated Lifting and Transportation

By combining a 10-ton knuckle boom crane and a cargo platform on one truck, the DONGFENG crane truck eliminates the need for separate lifting equipment in many applications. This makes it a cost-effective choice for contractors, logistics companies, and industrial operators that require both transportation and on-site lifting capabilities.
