BRIEF

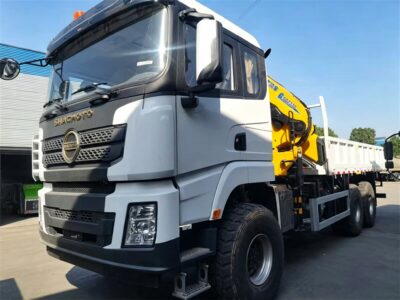

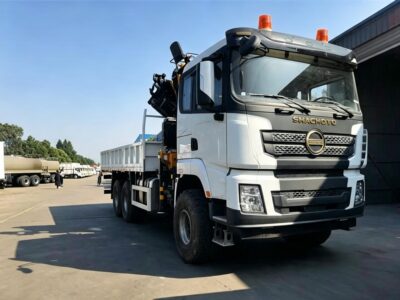

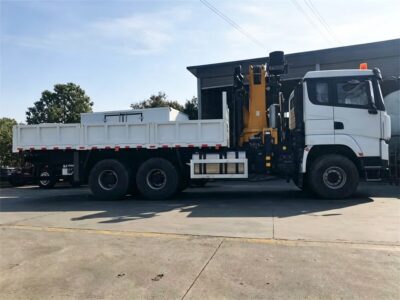

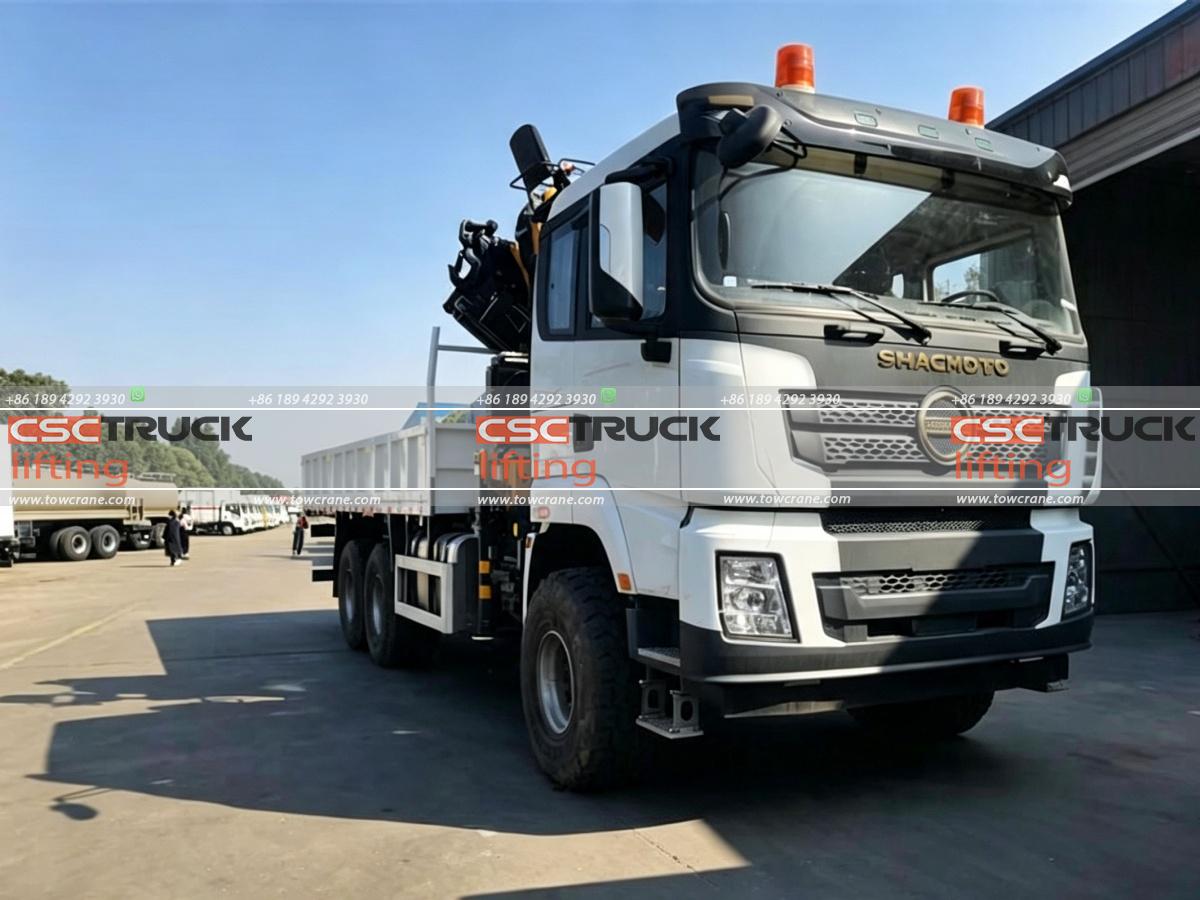

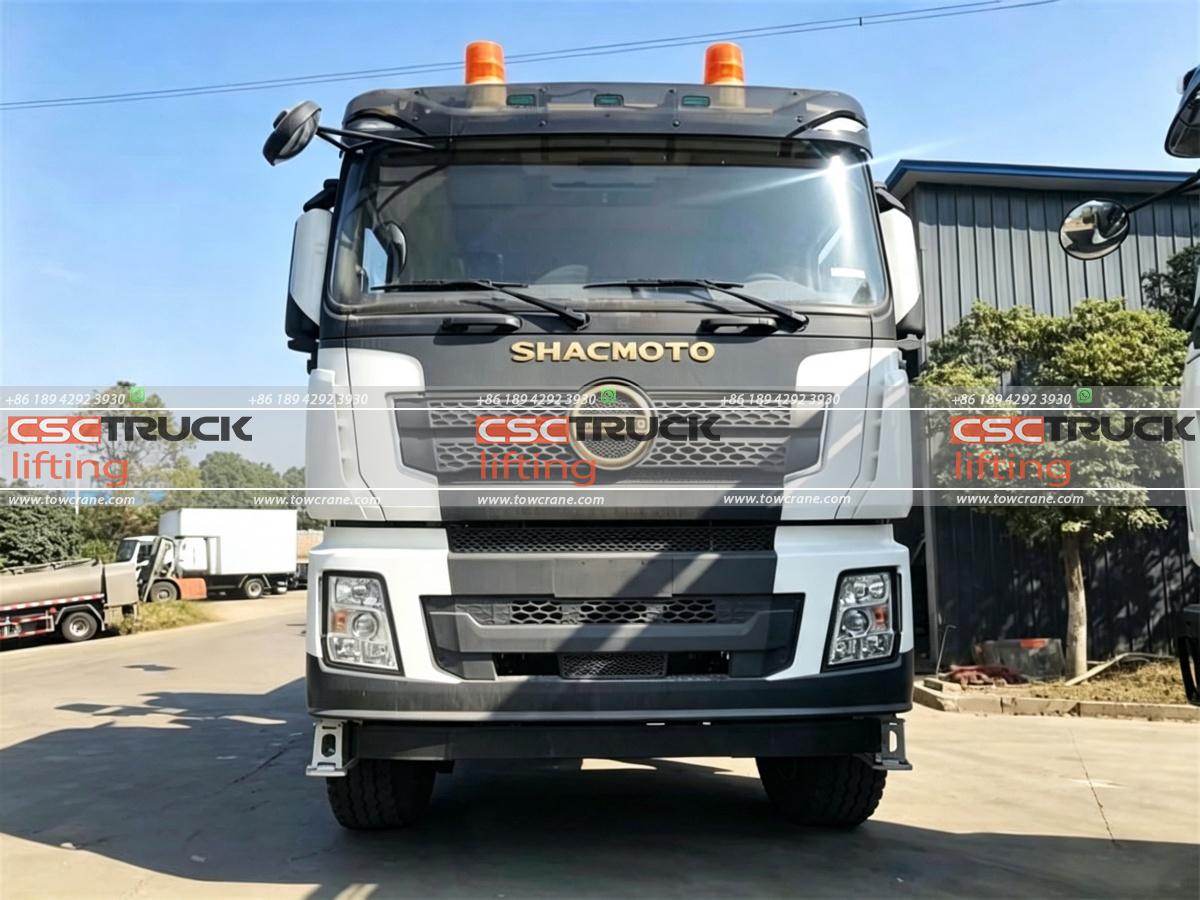

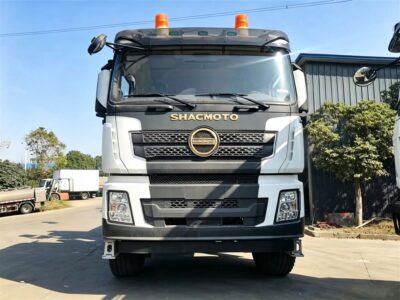

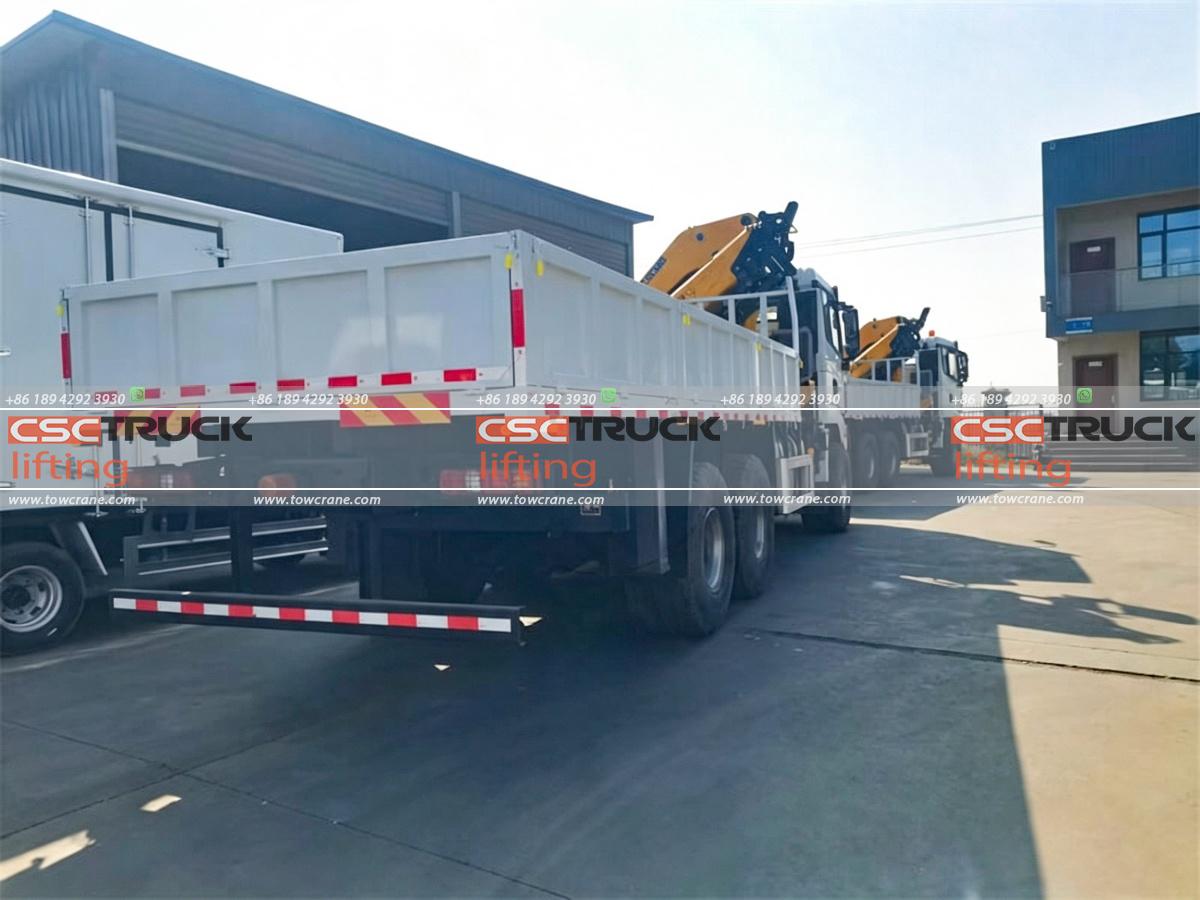

The SHACMAN 6×4 12T XCMG Knuckle Boom Crane is a versatile truck-mounted crane solution that combines heavy-duty cargo transportation with efficient lifting capability. Built on a reliable SHACMAN 6×4 chassis, this vehicle integrates a powerful XCMG 12-ton knuckle boom crane with a 6-meter cargo platform, allowing operators to load, transport, and unload materials with a single truck. Designed for construction, mining, infrastructure projects, and industrial logistics, it eliminates the need for separate lifting equipment and improves overall job-site efficiency.

Powered by a WEICHAI WP10.340E22 diesel engine producing 340 HP, matched with a FAST 10-speed manual transmission, the truck delivers strong performance for heavy-duty transportation. The XCMG SQZ300 knuckle boom crane features a 3-section telescopic boom with 360° rotation, offering a maximum lifting capacity of 12,000 kg, a lifting height of 12 meters, and a working radius of 9.7 meters. Combined with a durable 6×4 drivetrain and a spacious cargo box, the truck provides excellent stability and flexibility for lifting and transporting heavy materials in various working environments.

Designed as an integrated loading and transportation solution, this knuckle boom crane truck helps companies reduce dependence on external cranes and forklifts, lowering operating costs and improving productivity. The combination of a proven SHACMAN chassis, reliable WEICHAI power system, and XCMG hydraulic crane makes it suitable for handling steel structures, construction materials, machinery, pipes, and other heavy cargo. With strong load capacity, flexible operation, and easy maintenance, this truck is an efficient choice for businesses requiring reliable material handling capabilities.

FEATURES

Chassis & Powertrain – Built for Heavy-Duty Transportation

• SHACMAN 6×4 chassis – Provides excellent stability and load capacity for transportation and lifting operations.
• WEICHAI WP10.340E22 engine – 340 HP output delivers strong power for heavy loads and challenging road conditions.
• FAST 10speed manual transmission – Provides flexible gear selection for different driving environments.
• 9,500 kg front axle + 16,000 kg rear axles – Supports heavy cargo while maintaining chassis durability.
• 12.00R20 tyres – Heavy-duty tires designed for highways, construction sites, and mixed road conditions.
• 400L fuel tank – Extends operating range and reduces refueling frequency.

XCMG 12T Knuckle Boom Crane – Flexible Lifting Performance

• 12,000 kg maximum lifting capacity – Handles heavy materials, equipment, and construction components.
• 3-section telescopic boom – Provides smooth extension and accurate load positioning.
• 12-meter maximum lifting height – Enables lifting over obstacles and into elevated positions.
• 9.7-meter working radius – Offers wide operating coverage around the vehicle.
• 360° hydraulic rotation – Allows flexible loading and unloading from different directions.
• Hydraulic dual-chamber outriggers – Improve stability during lifting operations on uneven terrain.
• Lightweight crane structure (4,130 kg) – Balances lifting performance and vehicle payload capacity.

Cargo Body & Operational Efficiency

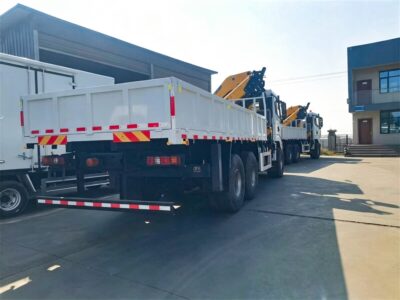

• 6.0-meter cargo platform – Provides sufficient space for long materials and bulk cargo.
• 20-ton cargo capacity – Suitable for transporting construction materials, machinery, and industrial goods.
• Integrated loading and transportation design – Performs lifting, loading, and delivery with one vehicle.
• Reduced equipment dependency – Minimizes the need for additional forklifts or mobile cranes at job sites.

Reliability & Operator Comfort

• Proven SHACMAN chassis platform – Designed for long-term operation in demanding environments.
• Reliable XCMG crane system – Easy maintenance and strong service support.
• Euro II emission standard – Suitable for various international markets.
• Air-conditioned cab – Improves driver comfort during long working hours.
