BRIEF

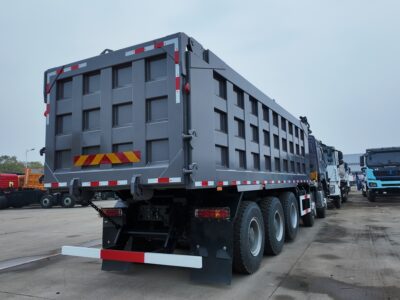

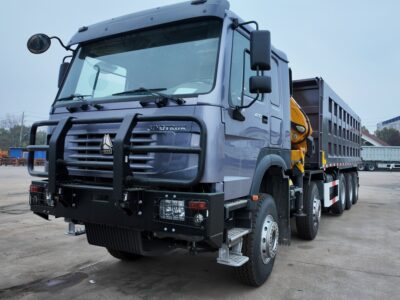

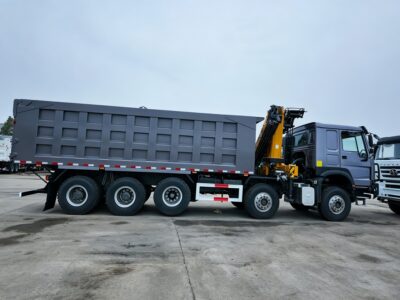

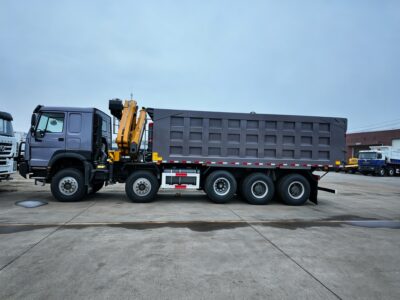

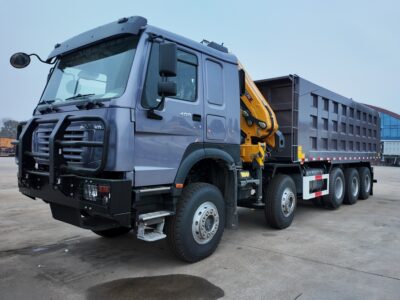

The SINOTRUK 10×8 10T XCMG Knuckle Boom Crane Truck is a heavy-duty lifting and transport solution engineered for demanding mining, quarrying, and industrial applications. Combining a reinforced 10×8 all-wheel-drive chassis, a heavy-duty dump body, and a 10-ton XCMG knuckle boom crane, the vehicle performs loading, lifting, hauling, and unloading with a single machine. This integrated design reduces equipment requirements, shortens operating cycles, and improves productivity across challenging job sites.

Powered by a 400 HP SINOTRUK diesel engine and equipped with a 10-speed transmission, the truck delivers reliable performance under heavy loads and on difficult terrain. The XCMG SQZ200 folding boom crane provides up to 10,000 kg lifting capacity, a 12.8-meter working radius, and a 14.8-meter lifting height, enabling operators to safely handle mining equipment, construction materials, steel structures, and bulk cargo. Its articulated boom design, 360° continuous rotation, and dual control system provide outstanding flexibility, especially in confined or hard-to-access working areas.

As part of the CSCTRUCK Municipal portfolio of heavy-duty mining and lifting equipment, this truck is built to withstand the harshest operating environments. The reinforced mining chassis, heavy-duty suspension, hydraulic stabilizers, and protective safety systems ensure excellent durability and stability on rough haul roads, muddy slopes, and quarry sites. Whether transporting ore, supporting equipment maintenance, or handling heavy materials, the knuckle boom crane offers a reliable, cost-effective solution that combines superior lifting capability with dependable hauling performance.

FEATURES

• Reinforced 10×8 All-Wheel-Drive Chassis – Built with two steering axles and three driven rear axles to provide exceptional traction, load distribution, and stability on steep grades, muddy roads, and uneven mining terrain.
• 400 HP Diesel Powertrain – Equipped with the reliable WP12S400E201 engine and a durable 10-speed transmission, delivering powerful torque and dependable performance for heavy-duty hauling operations.

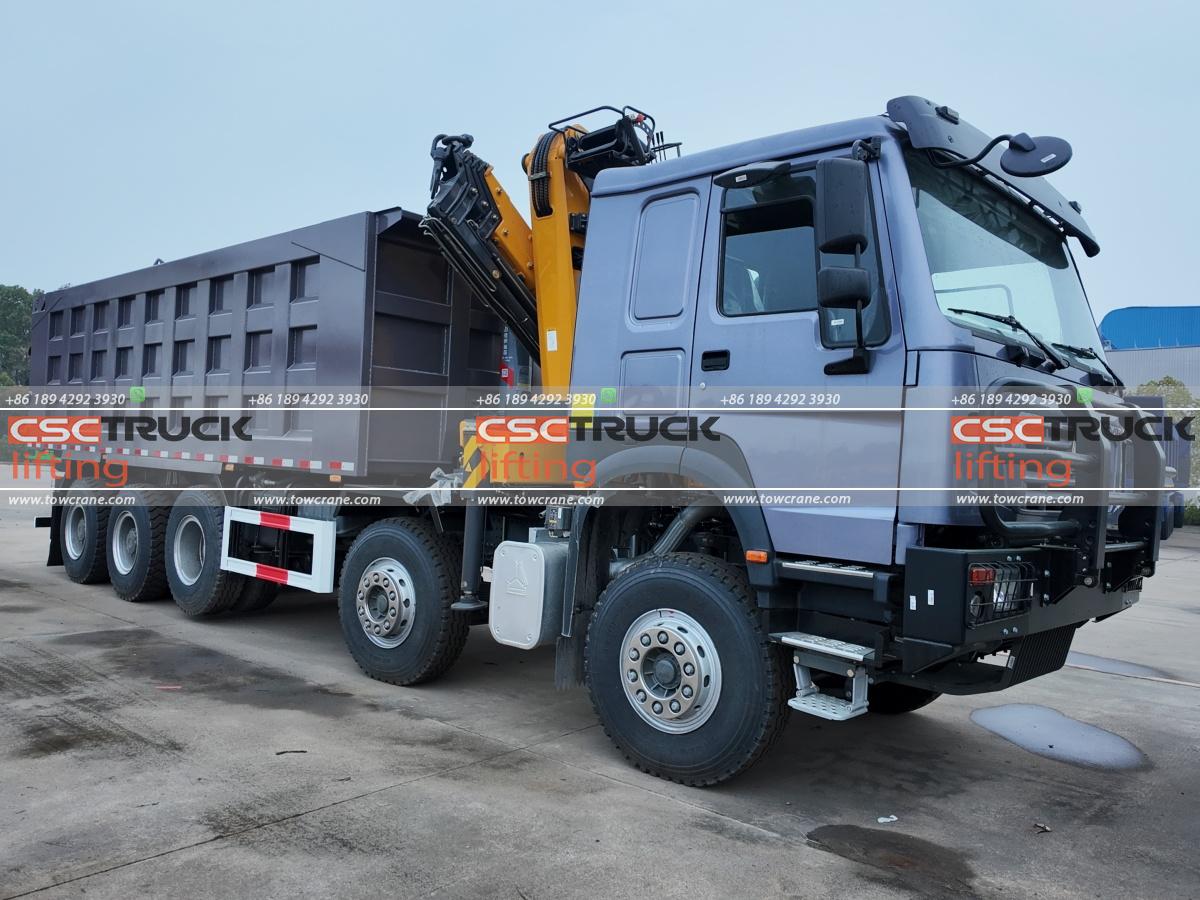

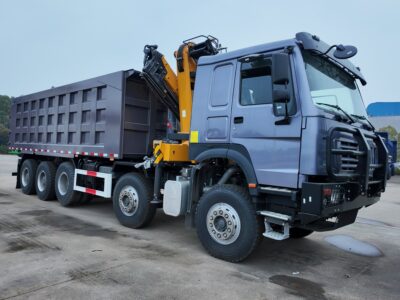

• 10-Ton XCMG Knuckle Boom Crane – Features the GSQZ200 hydraulic crane with a maximum lifting capacity of 10,000 kg, making it ideal for lifting mining equipment, construction materials, machinery, and oversized cargo.
• Long-Reach Folding Boom – The 5-section articulated boom provides a 12.8-meter working radius, 14.8-meter lifting height, and 360° continuous rotation for efficient lifting in confined or obstacle-filled work areas.
• Dual Control System – Combines top-mounted controls with a wireless remote control, allowing operators to perform lifting operations safely and efficiently from the optimal working position.

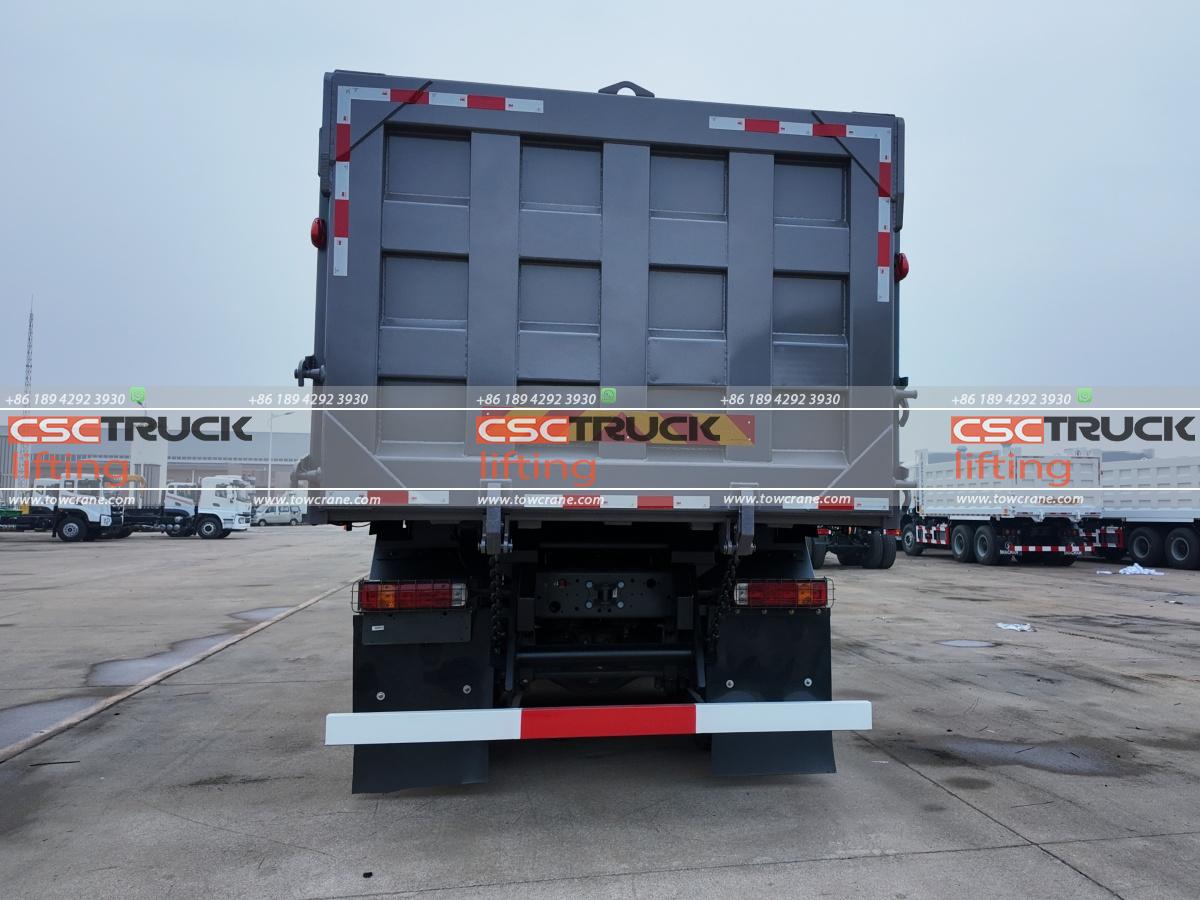

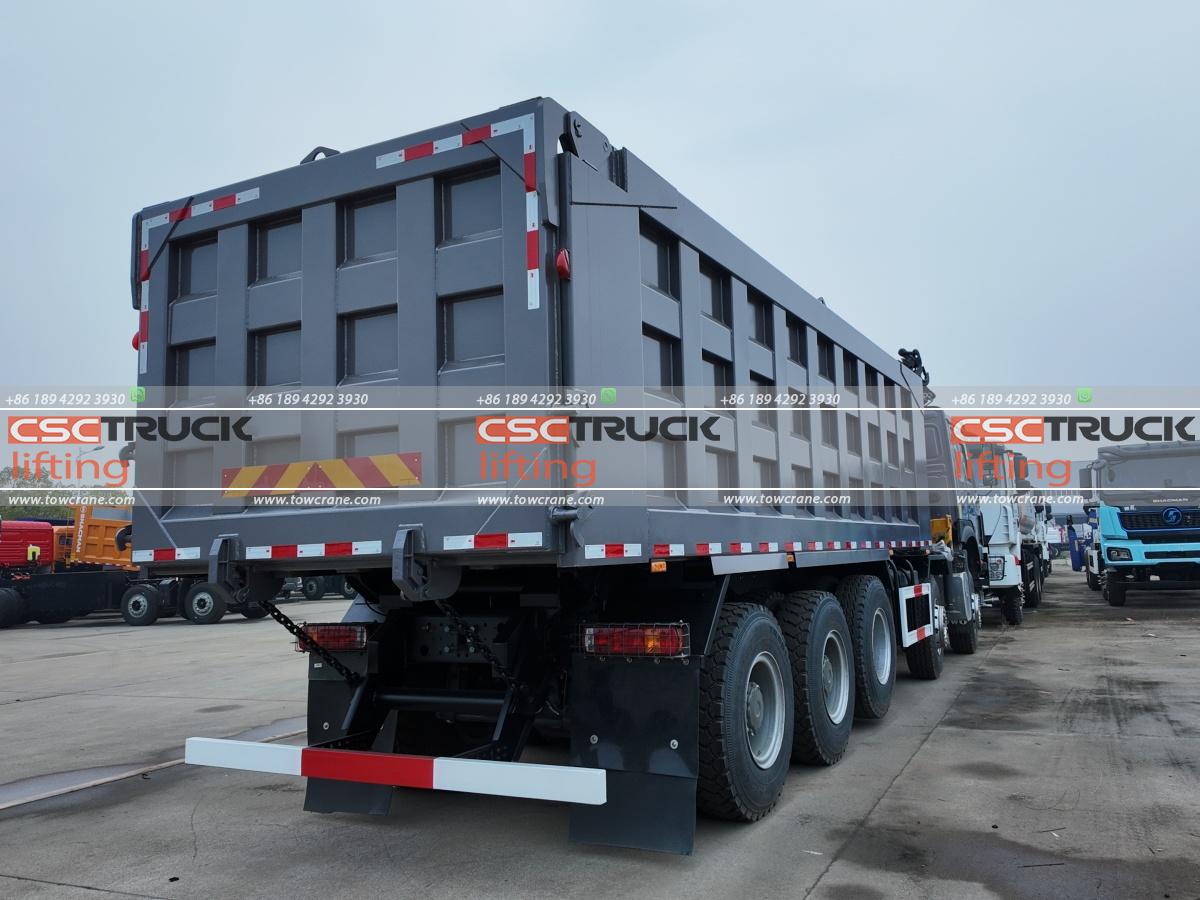

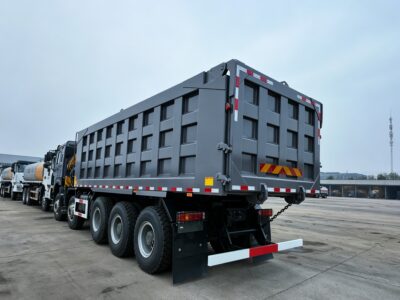

• Heavy-Duty Mining Dump Body – Manufactured from T420 high-strength steel with 6 mm side walls and an 8 mm floor, providing excellent resistance to impact, abrasion, and heavy material loading.

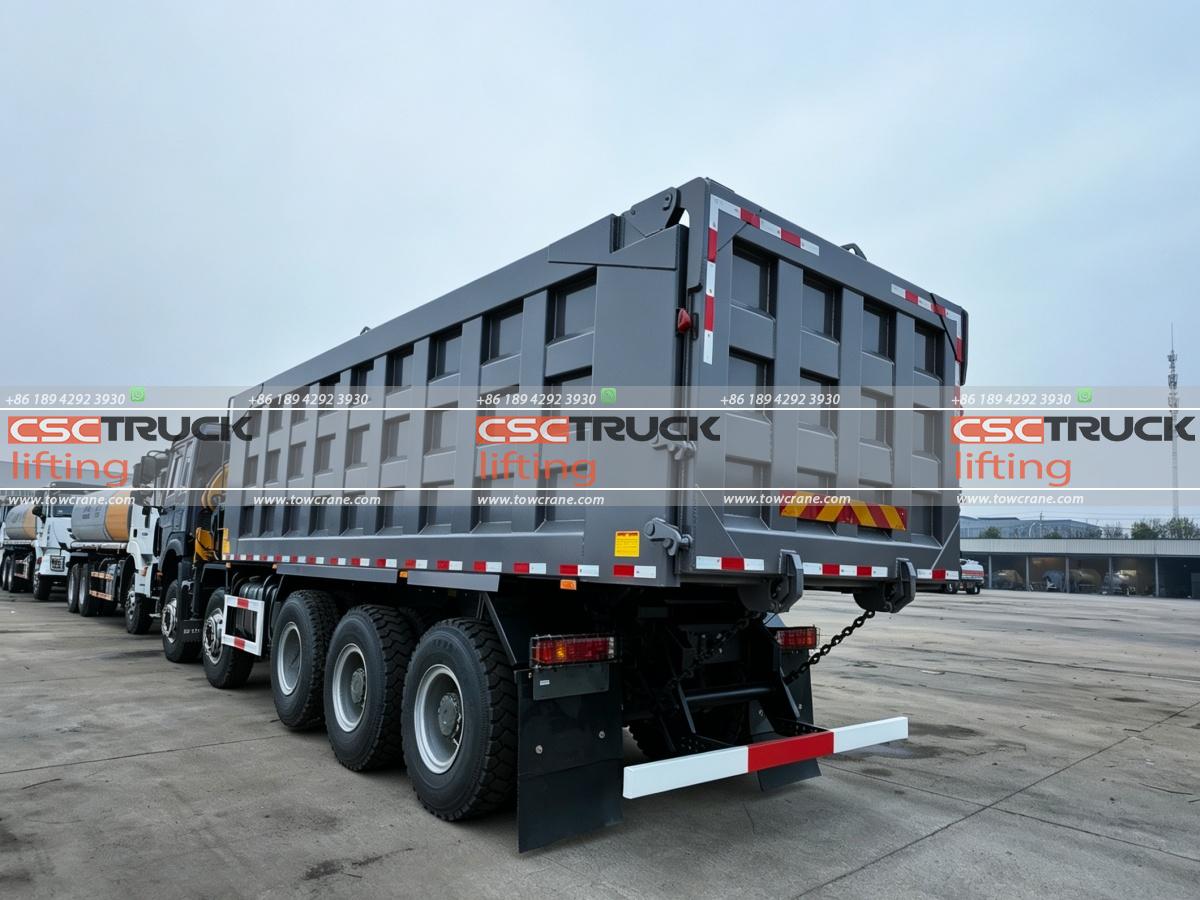

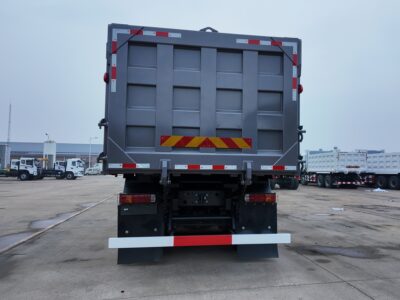

• Hydraulic Rear Tipping Body – Enables fast and efficient unloading of ore, aggregates, rock, and bulk materials, reducing turnaround time and improving productivity.
• Hydraulic Stabilizer System – Front outriggers and rear stabilizers provide a solid lifting platform, ensuring maximum stability and operational safety during crane operations.
• High-Performance Hydraulic System – The dual-pump hydraulic circuit delivers smooth, responsive, and continuous crane performance even under intensive working conditions.

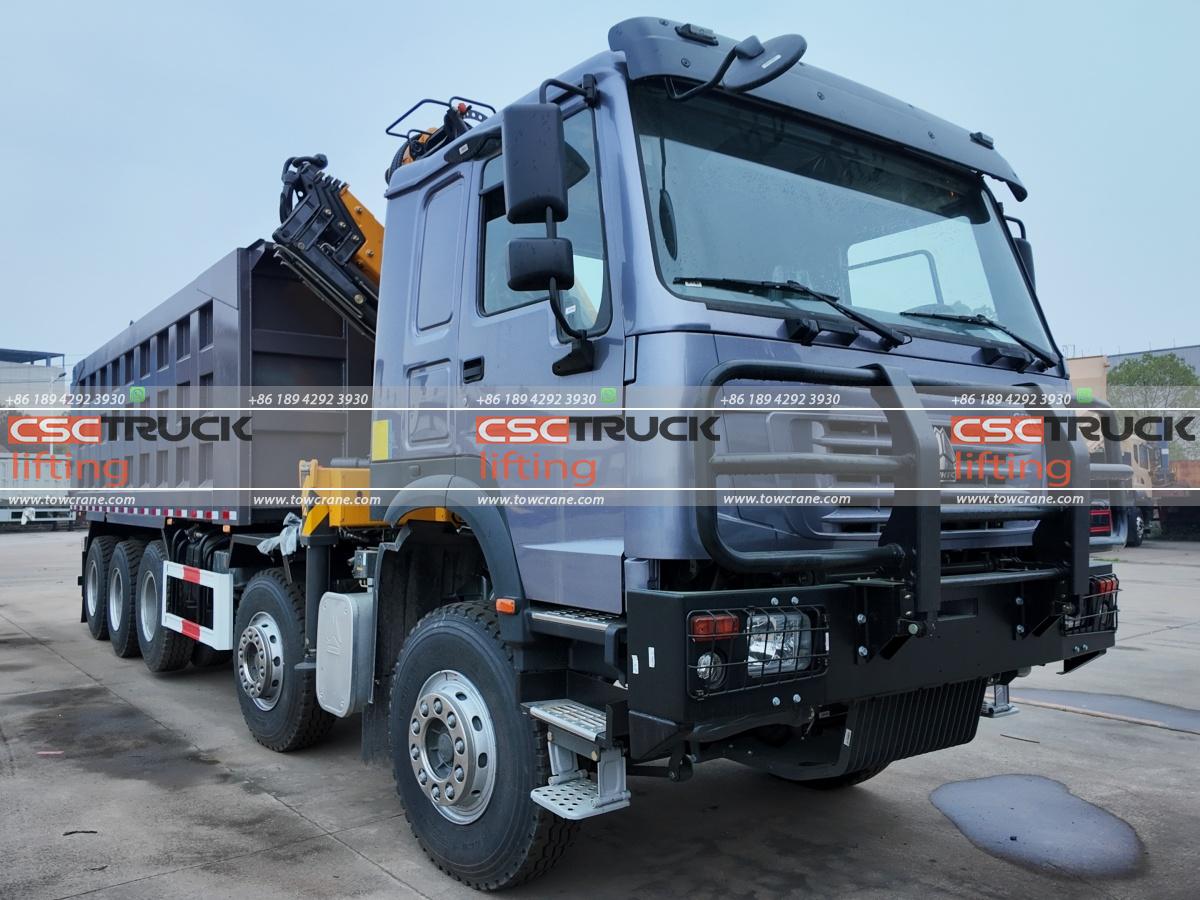

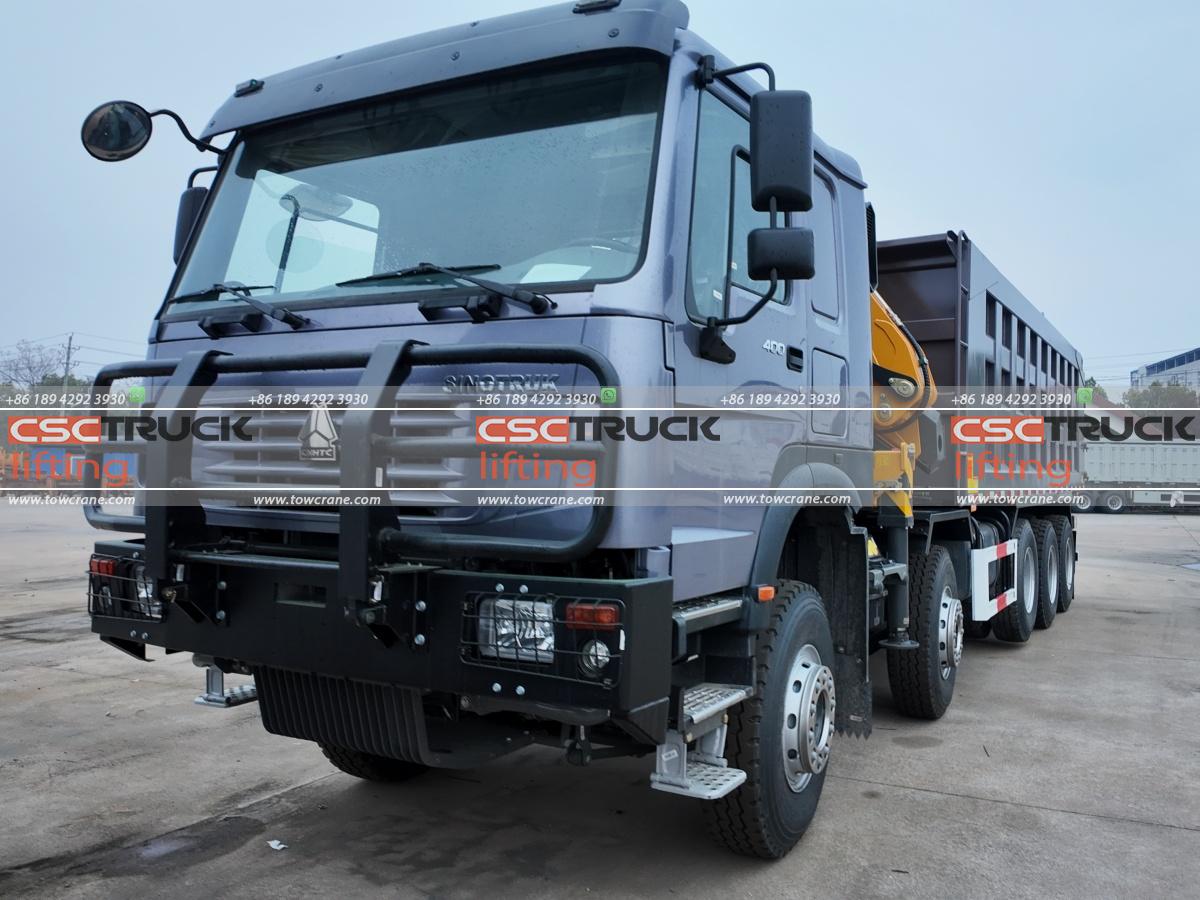

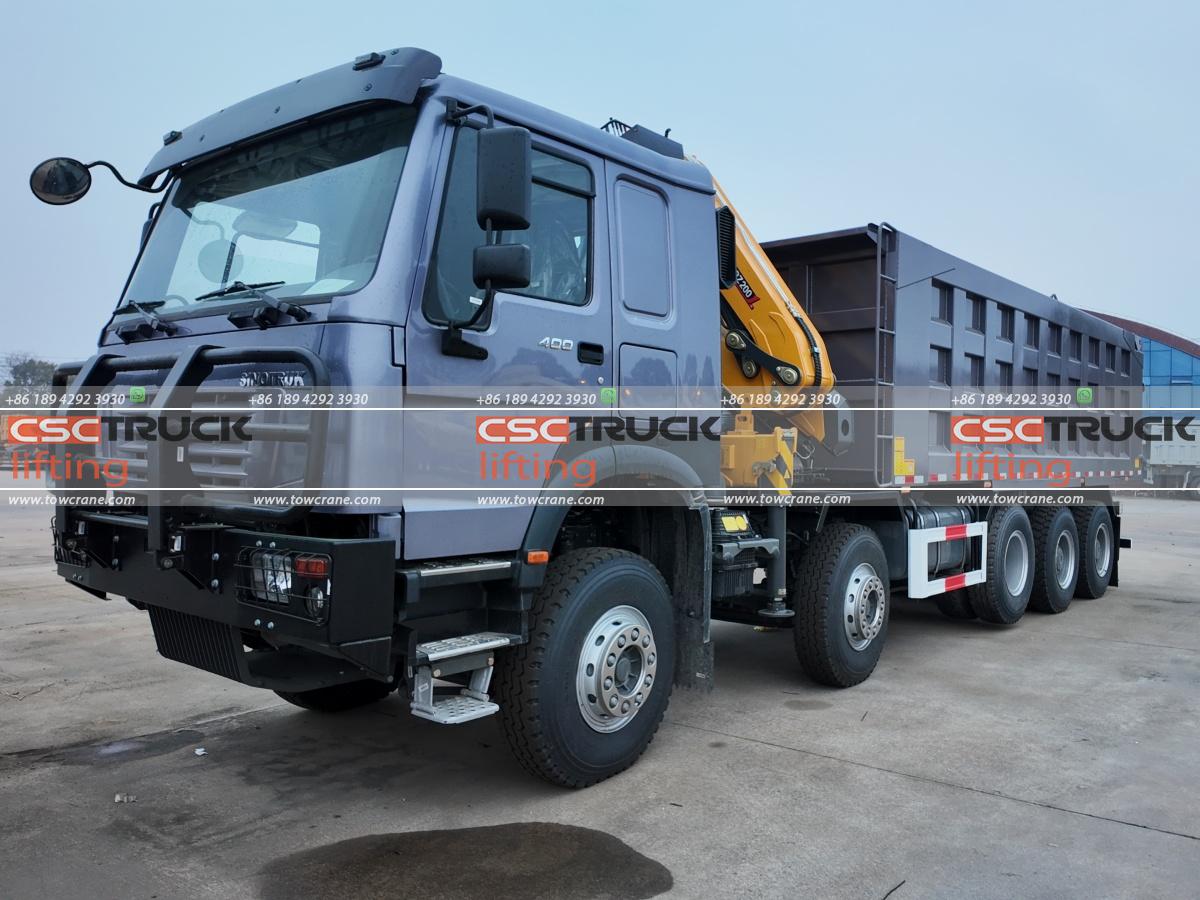

• Mining Safety Protection – Reinforced front bumper, underbody protection, and a roll-protected cab improve vehicle durability while enhancing operator safety in harsh environments.
• Heavy-Duty Off-Road Tires – Equipped with 12.00 R20 tires (16+1) for superior traction and flotation on gravel, mud, loose rock, snow, and other challenging surfaces.
• Large-Capacity Fuel Tank – The 400-liter fuel tank supports extended working hours in remote mining locations where refueling opportunities are limited.
• Road and Off-Road Mobility – A maximum travel speed of 95 km/h allows efficient transportation between mining sites, processing plants, and maintenance facilities.
