BRIEF

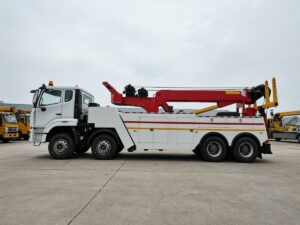

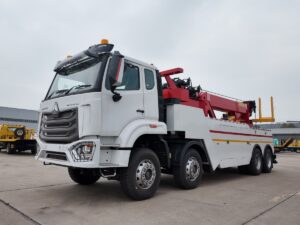

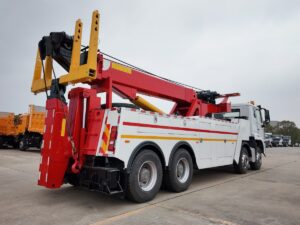

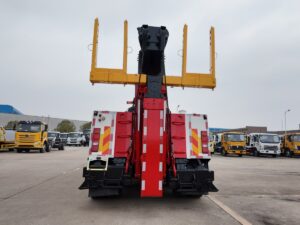

The HOWO NX 50 Tons Rotator Tow Truck is a heavy-duty recovery and clearing vehicle built on SINOTRUK’s proven chassis, with an 8×4 drive configuration and a massive 41,000 kg gross vehicle weight. Designed for the most demanding roadside assistance, accident clearance, and off-highway recovery missions, this truck is equally at home hauling overturned trailers, stuck mining equipment, or disabled buses from highways, construction sites, and industrial zones. Its long wheelbase (1,800+4,600+1,350 mm) and large overall dimensions (11.5 m × 2.55 m × 3.8 m) provide exceptional stability and a commanding working stance even under extreme lateral loads.

Under the cab sits the SINOTRUK WD615.47 diesel engine, delivering 273 kW (371 HP) and a peak torque of 1,500 N·m from 1,100 to 1,600 rpm – precisely the low-end grunt needed for winching and rotating heavy loads. This is paired with an HW19710 manual transmission offering 10 forward gears and 2 reverse gears, giving the operator fine-grained speed and torque control for delicate positioning or brute-force pulls. With a top speed of 89 km/h and full air brakes, the truck can respond quickly to emergency call-outs while maintaining safe, controlled deceleration when carrying a recovered vehicle on the boom.

What truly defines this machine is its dual-winch and rotator boom system. Equipped with two separate winches, each rated at 25,000 kg pulling capacity, the truck delivers a combined 50-tonne pulling force – enough to drag fully laden trucks out of ditches or up steep recovery ramps. The under-lifting system can hoist up to 40,000 kg in close configuration, while the three-section hexagonal boom with a three-section trailing arm extends to a useful length of over 12 metres (12,230 mm), allowing the operator to reach vehicles far off the carriageway. This combination of raw power, reach, and precision makes this rotator wrecker not just a tow truck, but a mobile rescue station that reduces the need for multiple support vehicles, cutting response time and operational costs for recovery fleets.

FEATURES

1. Powerful Chassis & Stability

Built on the proven SINOTRUK HOWO chassis with an 8×4 drive configuration, the vehicle provides excellent traction and stability for heavy recovery operations on highways, construction sites, and industrial environments.

2. Strong Powertrain Performance

Equipped with a reliable high-torque diesel engine and heavy-duty transmission, the truck delivers strong pulling power, smooth control, and dependable performance during demanding recovery missions.

3. Advanced Dual-Winch Recovery System

The dual-winch system provides powerful and flexible recovery capability, allowing operators to handle a wide range of vehicles and complex recovery situations with improved efficiency.

4. High-Capacity Rotator System

The rotator boom system combines strong lifting capability, long reach, and precise operation, enabling safe recovery of overturned vehicles, heavy trucks, and other large equipment.

5. Safe and Precise Operation

The hydraulic control system provides smooth and accurate operation of the boom, winches, and rotation functions, helping operators complete recovery tasks safely and efficiently.

6. Reliable Braking and Road Performance

A robust braking system and heavy-duty tyres ensure safe driving, stable handling, and reliable performance when transporting recovered vehicles.

7. Comfortable Driver Environment

The H77L cab provides a practical and comfortable working space with good visibility and sufficient room for the recovery team and equipment.

8. Durable Design for Tough Conditions

Designed for demanding working environments, the truck features a strong structure and corrosion protection to support long-term operation with reduced maintenance needs.

9. Multi-Role Recovery Solution

Combining towing, lifting, and recovery functions in one vehicle, the HOWO NX reduces the need for multiple support vehicles and improves fleet efficiency.

SPECIFICATION

CATEGORY	ITEM	PARAMETER
General	Drive Type	8×4
	Overall Dimensions (L×W×H)	11,500 × 2,550 × 3,800 mm
	Wheelbase	1,800 + 4,600 + 1,350 mm
	Gross Vehicle Weight (GVW)	41,000 kg
	Maximum Speed	89 km/h
Cab	Model	H77L
	Number of Seats	3
	Seat Rows	1.5 Rows
Engine	Make	SINOTRUK
	Model	WD615.47
	Horsepower	273 kW / 371 HP
	Max Torque / Speed	1500N.m / 1100-1600rpm
	Emission Standard	EURO II
	Displacement	9.726 L
	Fuel Type	Diesel
Transmission	Model	HW19710
	Type	Manual
	Gearbox	10F+2R
Tires	Type	315/80R22.5
	Quantity	12 + 1
Brake System	Type	Air Brake
Winch System	Quantity	2 pcs
	Rated Pulling Capacity	25,000 kg × 2
	Winch Cable Length	60 m
Hoisting System	Rated Under-Pulling Capacity	50,000 kg
	Rated Under-Hoisting Capacity	40,000 kg
	Fully Extended Max Under-Hoisting Capacity	6,500 kg
	Max Under-Hoist Useful Length	12,230 mm
Boom System	Boom Structure	Three-section hexagonal boom with three-section rear trailing arm
	Operation System	Double-sided hydraulic linkage operation
