BRIEF

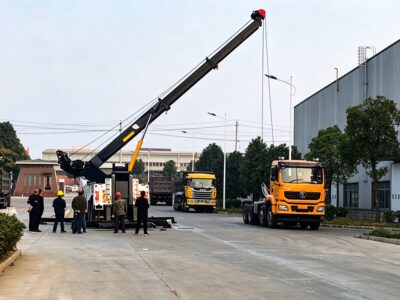

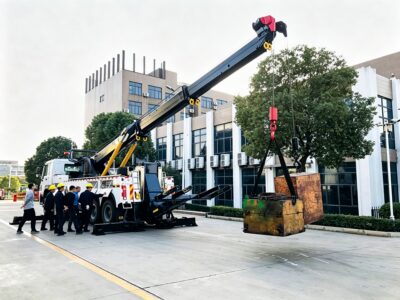

The SINOTRUK 60-Ton Rotator Wrecker is engineered to handle the most demanding heavy recovery and towing operations. Built on a robust SINOTRUK 8×4 chassis and powered by a reliable 370 HP diesel engine, it integrates a 60-ton hydraulic rotator boom, 36-ton underlift, and dual 30-ton planetary winches into one versatile recovery platform. Designed for single-operator efficiency, it is ideal for recovering overturned trucks, buses, construction machinery, and other heavy vehicles on highways, industrial sites, and challenging off-road terrain.

Manufactured from HG70 high-strength steel, the three-section hexagonal boom delivers up to 60,000 kg of lifting capacity while providing exceptional structural strength and stability. A maximum lifting height of 13.1 metres and a 62° boom elevation allow operators to recover vehicles from difficult positions with minimal repositioning. The heavy-duty underlift extends to 3.41 metres for secure towing, while dual 30,000 kg planetary winches with 50-metre cables provide powerful multi-directional pulling capability. Four hydraulic outriggers ensure outstanding stability throughout every recovery operation.

Leveraging CSCTRUCK Towcrane‘s extensive experience in heavy-duty recovery solutions, the rotator wrecker is engineered for towing fleets, emergency recovery teams, mining operations, and construction contractors. Combining a long-range 400L fuel tank, spacious dual-side toolboxes, and a durable 8×4 chassis, it offers exceptional lifting capability, operational efficiency, and dependable performance for demanding recovery missions in challenging environments.

FEATURES

Chassis & Powertrain – Built for Extreme Recovery Operations

• SINOTRUK 8×4 heavy-duty chassis provides exceptional structural strength, stability, and load-carrying capacity for demanding recovery missions.
• 370 HP SINOTRUK WD615.47 diesel engine generates up to 1,500 N·m of torque, delivering reliable power for highway towing and off-road heavy recovery.
• HW19710 10-speed manual transmission offers smooth gear engagement and precise vehicle control under heavy loads and challenging terrain.
• Reinforced multi-leaf suspension enhances durability while absorbing the impact of rough roads and high-capacity lifting operations.
• 12.00R20 heavy-duty mixed-pattern tyres provide excellent traction on asphalt, gravel, mud, and uneven construction sites.
• 400-litre fuel tank supports long-distance recovery missions with fewer refuelling stops.
• 8×4 drive configuration delivers outstanding stability, traction, and manoeuvrability when operating under maximum load.
• Heavy-duty air brake system ensures dependable stopping performance while towing oversized and fully loaded vehicles.

Rotator Boom & Recovery System – Maximum Lifting Power

• 60-ton hydraulic rotator boom delivers exceptional lifting performance for overturned trucks, buses, trailers, and heavy machinery.
• Three-stage hexagonal boom manufactured from HG70 high-strength steel provides superior strength while reducing structural weight.
• 13,129 mm maximum lifting height allows operators to recover vehicles over obstacles with fewer repositioning adjustments.
• 62° boom elevation angle increases working flexibility during complex roadside and off-road recovery operations.
• 36-ton heavy-duty underlift safely handles large commercial vehicles while extending up to 3,410 mm for greater reach.
• Dual 30,000 kg planetary winches, each equipped with 50 metres of steel cable, provide powerful multi-directional pulling capability.
• Four hydraulic outriggers create a stable operating platform for safe lifting and recovery at full capacity.

Operator Comfort & Safety – Designed for Professional Recovery

• Hydraulic control system delivers smooth, responsive, and precise operation of the boom, underlift, and winches.
• Reinforced underlift structure improves operational safety and durability when recovering heavily damaged vehicles.
• SINOTRUK TX-F cab with air conditioning provides a comfortable working environment during extended recovery operations.
• Power steering system reduces driver fatigue and improves manoeuvrability in confined recovery locations.
• Euro II emission engine is well suited for export markets with less stringent emission regulations.
• Dual side-mounted toolboxes keep chains, slings, shackles, and recovery accessories organized and easily accessible.
• Protective nude wax packaging helps safeguard the vehicle during international transportation, ensuring it arrives ready for deployment.
