Brief

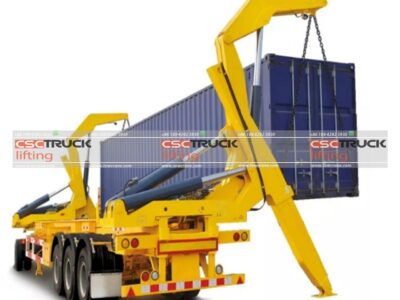

The 37T Truck-Mounted Side Lifter Crane, equipped with the MQH37A side lifter crane, is a heavy-duty container handling solution designed for efficient loading, unloading, and transportation of heavy containers. With a maximum lifting capacity of 37,000 kg, it provides the strength required for demanding container handling operations in ports, logistics yards, construction sites, and freight terminals.

The side lifter offers a 4,000 mm maximum working range and 3,200 mm maximum stabilizer outreach, allowing containers to be handled efficiently alongside the trailer. With a crane mass of 7,250 kg and a robust three-axle trailer structure, the system provides a stable foundation for heavy lifting and container transfer operations.

The Truck-Mounted Side Lifter Crane combines heavy lifting, side loading, unloading, and container transportation into one practical solution. Equipped with FUWA 13T axles, 12R22.5 tires, JOST landing gear, and a 2-inch traction pin, it is built for reliable operation in demanding logistics and container handling environments.

Features

MQH37A 37-Ton Side Lifter Crane

• 37,000 kg maximum lifting capacity – handles heavy containers for demanding loading and unloading operations.
• 4,000 mm maximum working range – provides flexible side-loading capability.
• 3,200 mm stabilizer outreach – creates a stable support base during container lifting.
• Heavy-duty crane structure – designed for frequent container handling and demanding working conditions.

Heavy-Duty 3-Axle Trailer

• FUWA 13T × 3 axles – provides reliable load support and stability during transportation.
• 14,100 × 2,500 × 4,000 mm trailer dimensions – offers a robust platform for container handling and transportation.
• 8,000 + 1,350 + 1,350 mm wheelbase – contributes to balanced load distribution and stable road performance.
• 7,250 kg side lifter mass – provides a solid foundation for heavy-duty lifting operations.

Reliable Support & Connection System

• JOST 28T landing gear – provides secure support when the trailer is parked and during loading or unloading.
• 2.0″ (50#) traction pin – ensures a secure connection between the trailer and towing vehicle.
• Hydraulic stabilizer system – improves stability during side lifting operations.
• 12R22.5 vacuum tires, 12 units – provide reliable load-bearing capacity and road traction.

Specification
