BRIEF

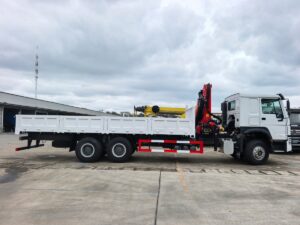

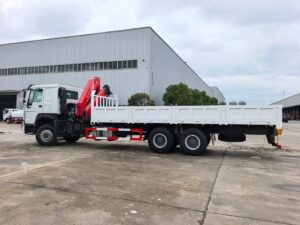

The HOWO 10T PALFINGER Knuckle Boom Crane Truck is a heavy-duty truck-mounted crane engineered for demanding material handling, logistics, and construction applications. Built on the renowned SINOTRUK HOWO 6×4 chassis, it combines outstanding road performance with a powerful and versatile knuckle boom crane. Designed as an all-in-one lifting and transport solution, it eliminates the need for separate lifting equipment by enabling operators to transport cargo and perform precise loading and unloading with a single vehicle. Whether handling steel beams, pipes, machinery, or shipping containers, this truck delivers exceptional productivity and operational flexibility.

Powered by the Weichai diesel engine, the truck produces 400 HP (294 kW) and 1,800 N·m of torque, providing outstanding pulling power for both heavy transportation and crane operations. The 6×4 drivetrain offers excellent traction on construction sites, mining areas, and rough terrain, while the HW19710 10-speed manual transmission ensures smooth and precise power delivery under varying load conditions. A reinforced clutch, heavy-duty suspension, and spacious HOWO sleeper cab with air conditioning provide the durability, comfort, and reliability required for long working hours and long-distance transport.

The truck is equipped with the SANY PALFINGER SPK23500 knuckle boom crane, offering a 10-ton maximum lifting capacity, 23 tonne-meter rated lifting moment, 16.7-meter maximum outreach, and 15.9-meter lifting height. Its articulated knuckle boom design provides superior flexibility while occupying less space than conventional straight-boom cranes, allowing for greater payload capacity on the cargo body. Combined with 400° slewing, smooth hydraulic operation, and advanced safety systems, the knuckle boom crane delivers fast, accurate, and efficient lifting performance for construction, municipal engineering, industrial maintenance, and logistics operations.

---

FEATURES

1. Chassis & Powertrain

• SINOTRUK HOWO 6×4 chassis provides outstanding stability, durability, and load-carrying capability for heavy-duty operations.
• Weichai engine delivers strong torque and reliable performance for demanding transport and lifting applications.
• HW19710 10-speed manual transmission ensures smooth shifting and precise control across various road conditions.
• Reinforced drivetrain and suspension improve durability and operational reliability under continuous heavy loads.

2. PALFINGER Knuckle Boom Crane

• 10-ton lifting capacity enables efficient handling of heavy construction materials, machinery, and industrial equipment.
• Articulated knuckle boom offers flexible lifting angles while reducing storage space and increasing cargo capacity.
• Long outreach and lifting height improve working efficiency by minimizing vehicle repositioning.
• 400° slewing system allows operators to perform lifting tasks over a wide working area.

3. Hydraulic System

• High-performance hydraulic system delivers smooth, fast, and precise boom movements.
• Efficient oil flow design improves operating speed while reducing energy consumption.
• Load-holding valves ensure stable boom positioning and prevent unintended movement during lifting.
• Responsive hydraulic controls enhance operational accuracy and productivity.

4. Safety Systems

• Hydraulic overload protection prevents lifting beyond the crane’s rated capacity.
• Emergency stop system enables immediate shutdown during unexpected situations.
• Integrated safety interlocks improve operational security and protect both equipment and operators.
• Wide-span outriggers provide excellent stability during heavy lifting operations.

5. Operator Comfort & Control

• Ergonomically designed control levers allow intuitive and comfortable crane operation.
• Optional wireless remote control improves visibility and enhances operator safety.
• Spacious HOWO sleeper cab with air conditioning provides a comfortable working environment during long shifts.
• Reliable electrical system supports stable crane and vehicle operation.

6. Durability & Versatility

• High-strength steel construction delivers an excellent balance of strength, durability, and reduced weight.
• Corrosion-resistant coating enhances long-term reliability in harsh operating environments.
• Suitable for a wide range of applications, including construction, logistics, municipal engineering, mining, and industrial material handling.
• Compatible with various hydraulic attachments, expanding the truck’s operational versatility.

---

SPECIFICATION

Category	Item	Parameter
General	Overall dimensions (L x W x H)	9,800×2,550×3,800 mm
	Maximum Driving Speed	90 km/h
Weight	G.V.W.	41,000 kg
	Front axles loading capacity	1×9,000 kg
	Rear axles loading capacity	2×16,000 kg
Cabin	Type	Sleeper Cab(with A/C, 3 seats)
Engine	Brand	Weichai
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, diesel engine
	Horse Power	400 HP
	Emission standard	Euro II
Transmission	Gearbox Model	HW19710, 10F+2R
Clutch	Clutch Type	Reinforced diaphragm clutch, diameter 430 mm
Steering Gear	Steering Gear Model	ZF 8118, power steering, hydraulic steering with power assistance
Tire	Tire Specification	12R22.5, 10+1 pcs (including one spare tire)
Crane	Model	SANY Palfinger SPK23500
	Slewing Torque	2.8 mt
	Slewing Angle	400°
	Max. Lifting Capacity	10T
	Overall Weight	2.65T
	Max. Hydraulic Outreach	16.7m
	Max. Lifting Height	15.9m
	Rated Lifting Moment	23mt
	Hydraulic Boom Extensions	4
	Operating Pressure	30 MPa
	Pump Capacity	50–75 l/min
