BRIEF

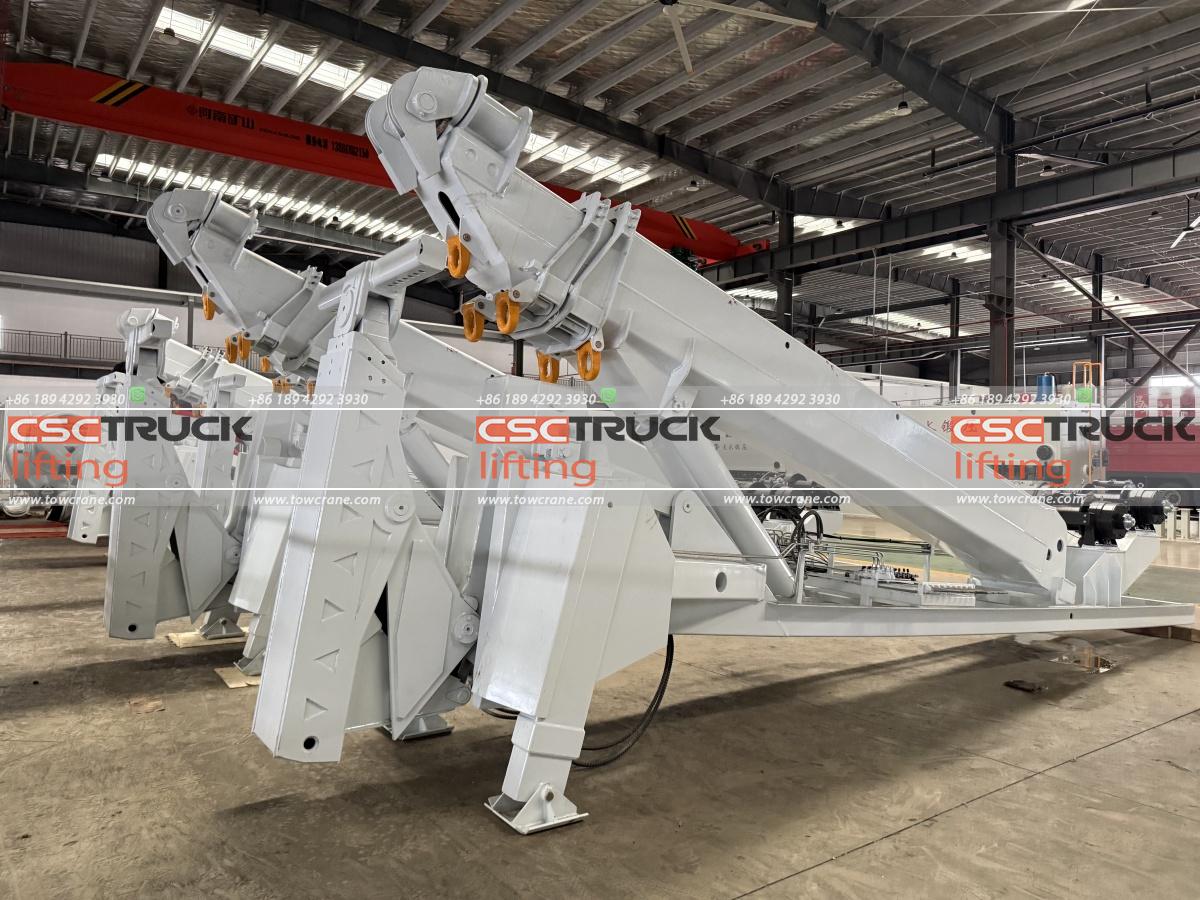

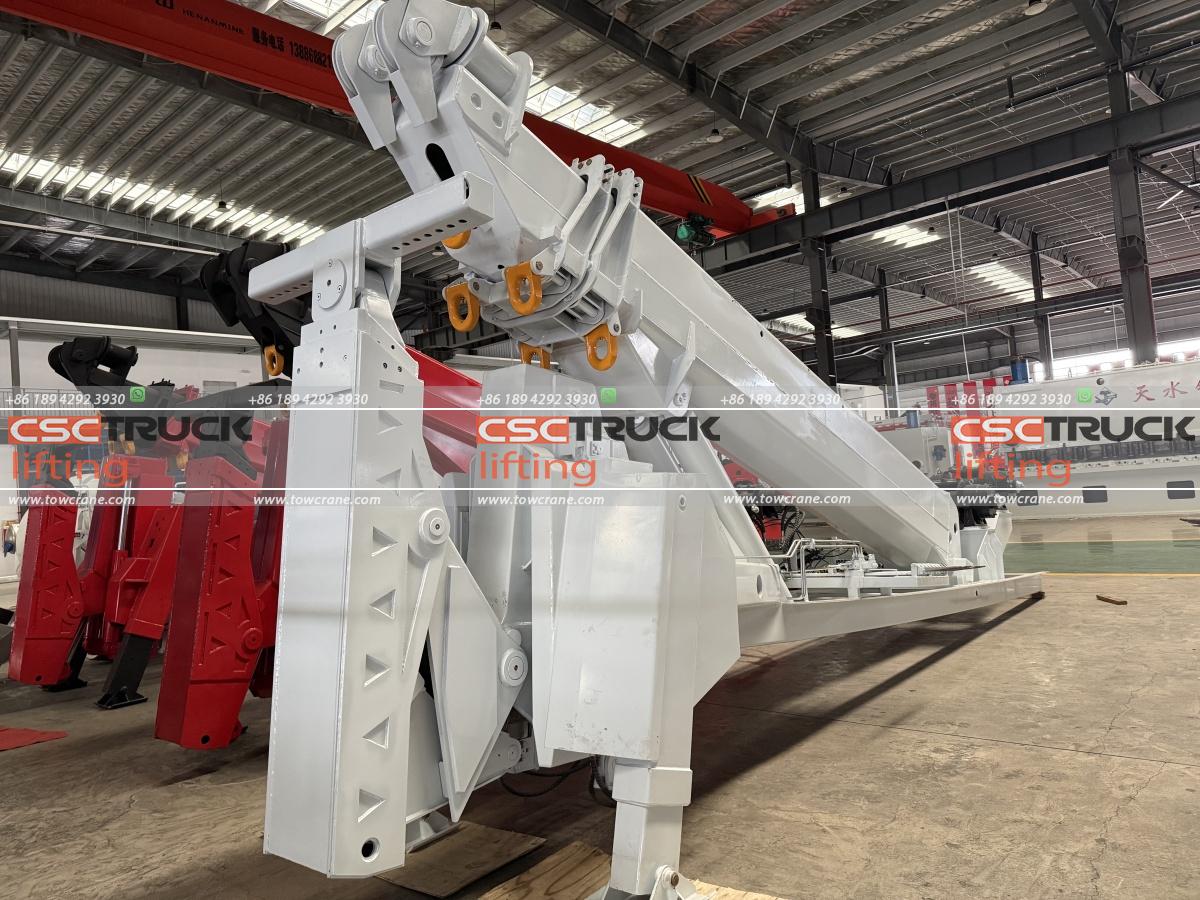

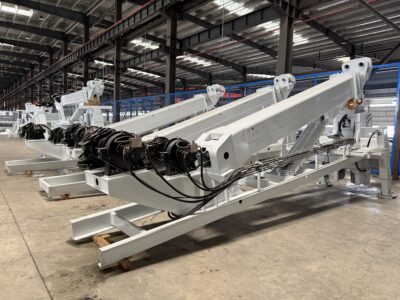

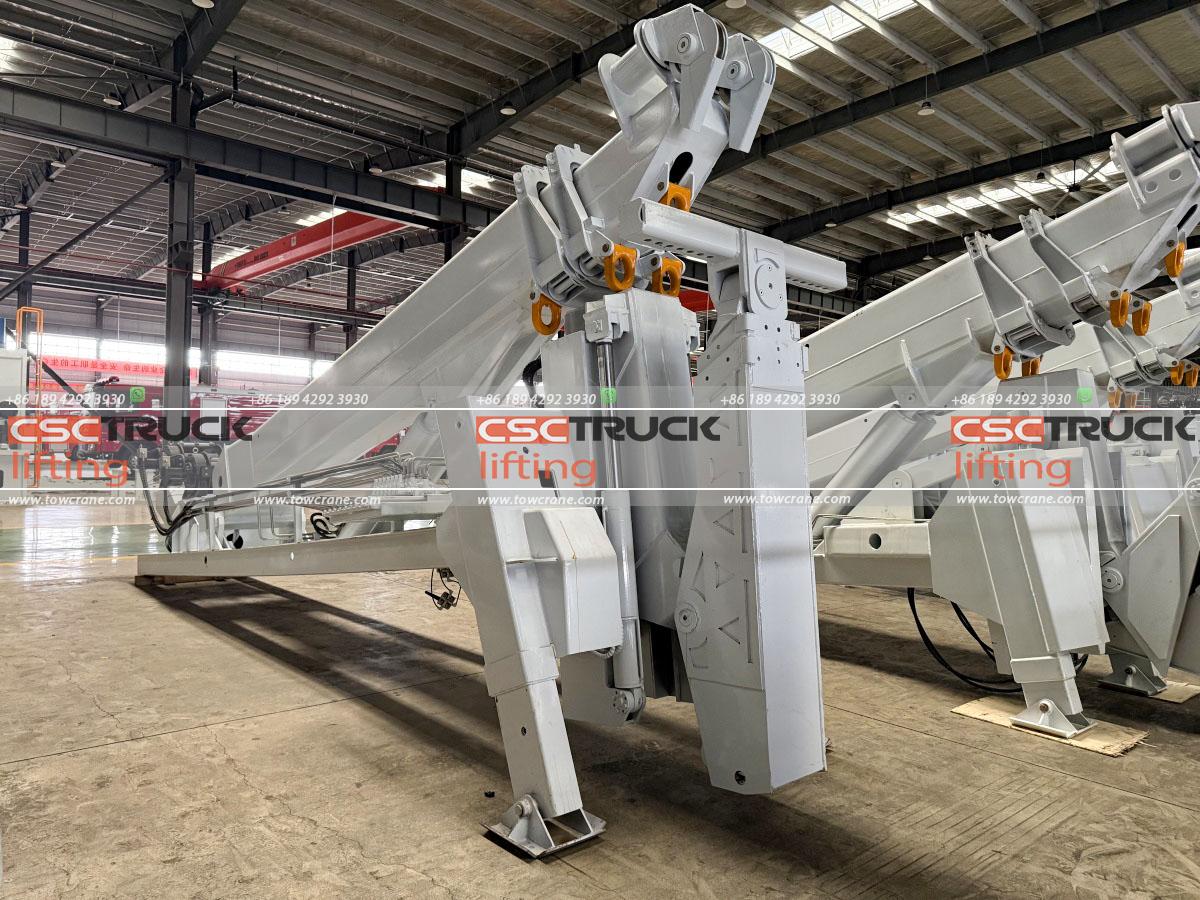

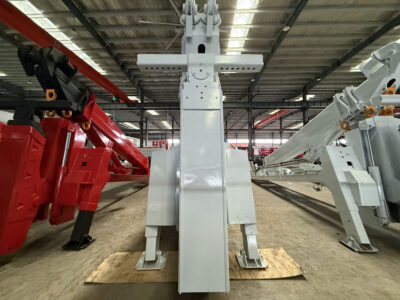

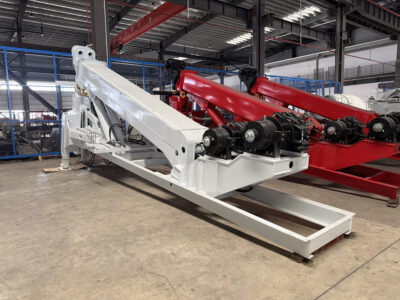

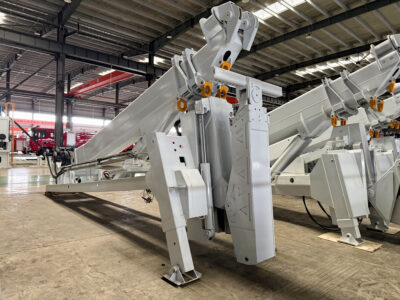

The 30-Ton Integrated Wrecker Upper Body is a heavy-duty towing and recovery system designed for recovering disabled trucks, buses, construction vehicles, and other large commercial vehicles. It integrates a high-capacity recovery boom, dual winches, and a heavy-duty rear underlift into one complete superstructure, providing both lifting and towing capabilities for demanding recovery operations.

The recovery system features a 30-ton-class hydraulic recovery boom constructed from high-strength G70 steel, together with two 15-ton main winches for controlled pulling and lifting operations. The three-stage rear underlift is also manufactured from G70 steel and can provide up to 16,000 kg lifting capacity when fully retracted, making the upper body suitable for heavy-duty vehicle towing and roadside recovery.

Designed for professional recovery fleets, the integrated wrecker’s upper body combines hydraulic operation, wireless remote control, English control interfaces, LED lighting, safety equipment, and practical tool storage. Its flexible boom and underlift configuration allows operators to handle different recovery positions while improving operational efficiency and control at the recovery site.

FEATURES

• 30-Ton Recovery Boom: High-capacity hydraulic boom designed for heavy-duty vehicle recovery and lifting applications.

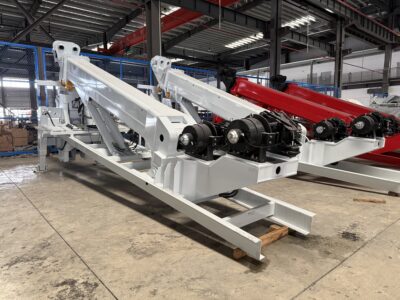

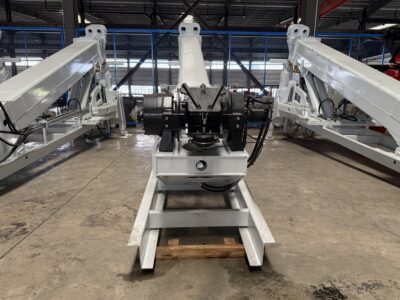

• Dual 15-Ton Main Winches: Two independent main winches provide strong and controlled pulling force for difficult recovery operations.
• Three-Stage Rear Underlift: G70 high-strength steel construction with hydraulic extension for flexible towing and lifting.
• 16,000 kg Retracted Underlift Capacity: Provides substantial lifting capability when the underlift is fully retracted.
• 5,310 kg Extended Underlift Capacity: Maintains useful lifting performance when additional reach is required.
• 11.3 m Boom Extension: Long boom reach helps operators position the recovery hook for different recovery situations.
• G70 High-Strength Steel Construction: Used for the recovery boom and underlift to provide a strong structural foundation.
• Wireless Remote Control: Allows the operator to control key recovery functions from a suitable working position.
• Dual-Side Manual Controls: Control stations on both sides provide convenient operation and better visibility around the vehicle.
• Planetary Winches: Heavy-duty planetary gear winches are designed for controlled recovery pulling.
• 24V Electrical System: Suitable for integration with the truck chassis electrical system.
• Hydraulic Operating System: Provides power for boom movement, underlift extension, and other recovery functions.
• Complete Recovery Accessories: Includes safety chains, tow socket, tow forks, hydraulic components, and related recovery equipment.
• LED Lighting: Improves visibility during nighttime and low-light recovery operations.
• Stainless-Steel Tool Box: Provides convenient storage for recovery tools and accessories.
